150 W · 42,000 lm · 6000/4300/3000 K · switch from cabin · dual pipe
Pick a model, a colour temperature and a lamp base — we confirm the exact build before invoicing.
18 × 13.5 × 6 cm · 200 g (sold per single bulb) · IP68 · 50,000 h
Both retail and wholesale are quoted by a person — one message with your market and quantity gets you the price sheet, the beam comparison and a shipping quote.
Reply in one business daySample before bulk25-day production
Details
Assembly, beam pattern and the numbers behind the build.
Driver potting, heatsink fit and the low/high beam wall test, filmed on our own bench. No clip on the shelf yet — ask and we send the current one.

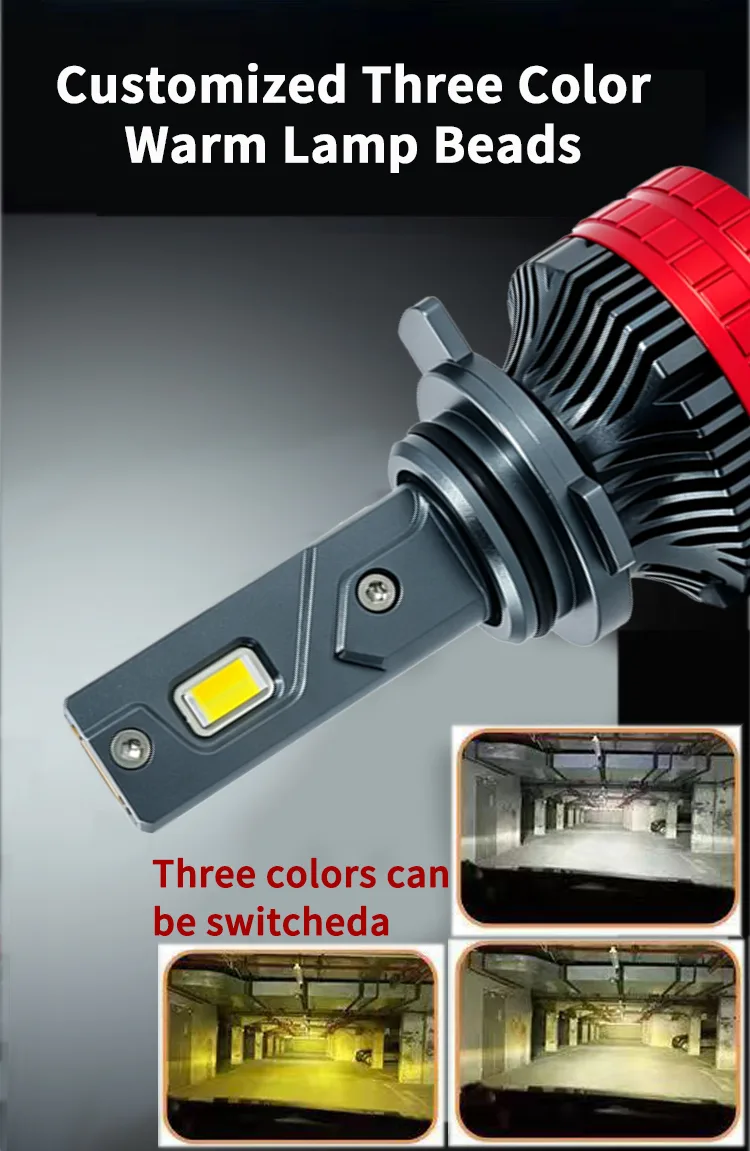

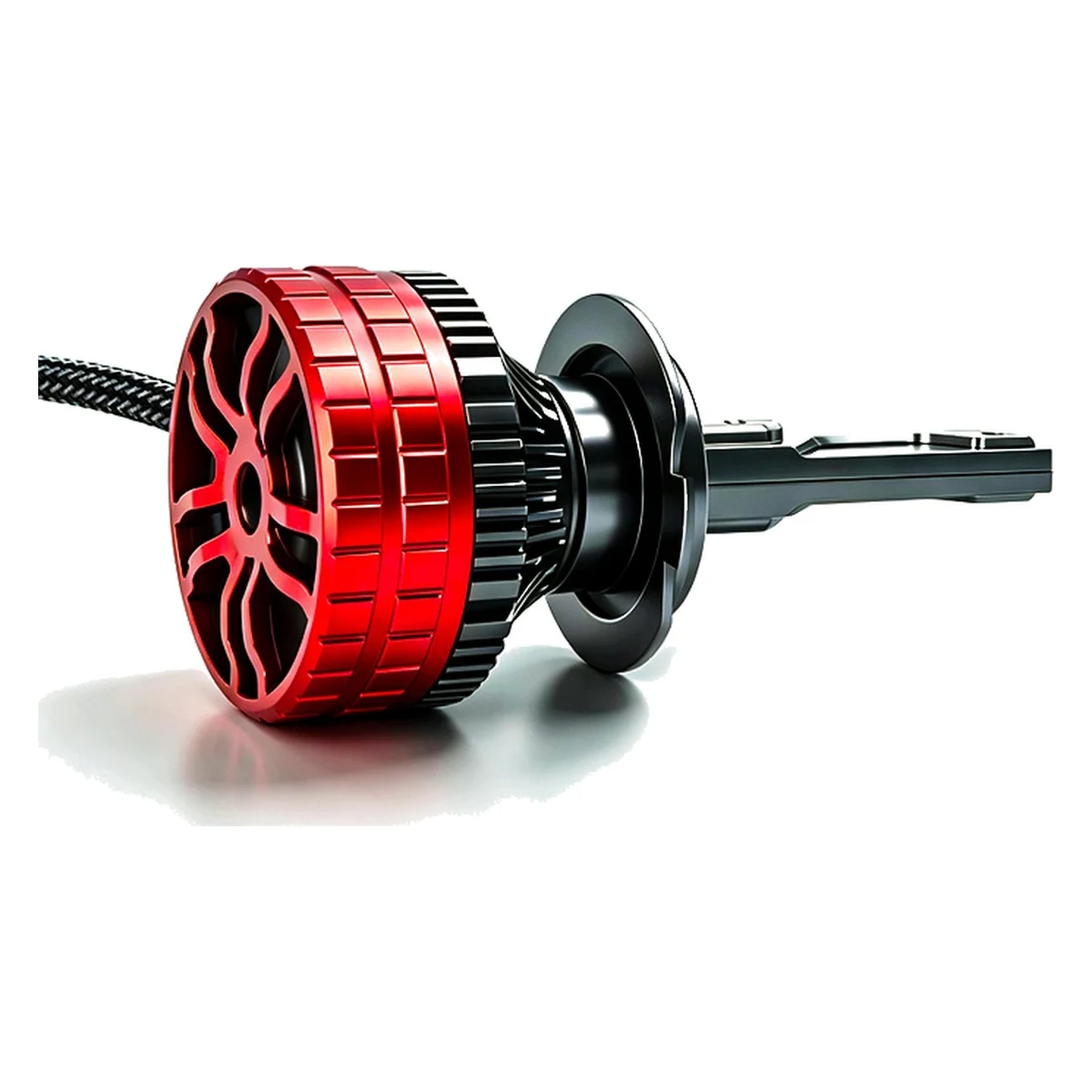

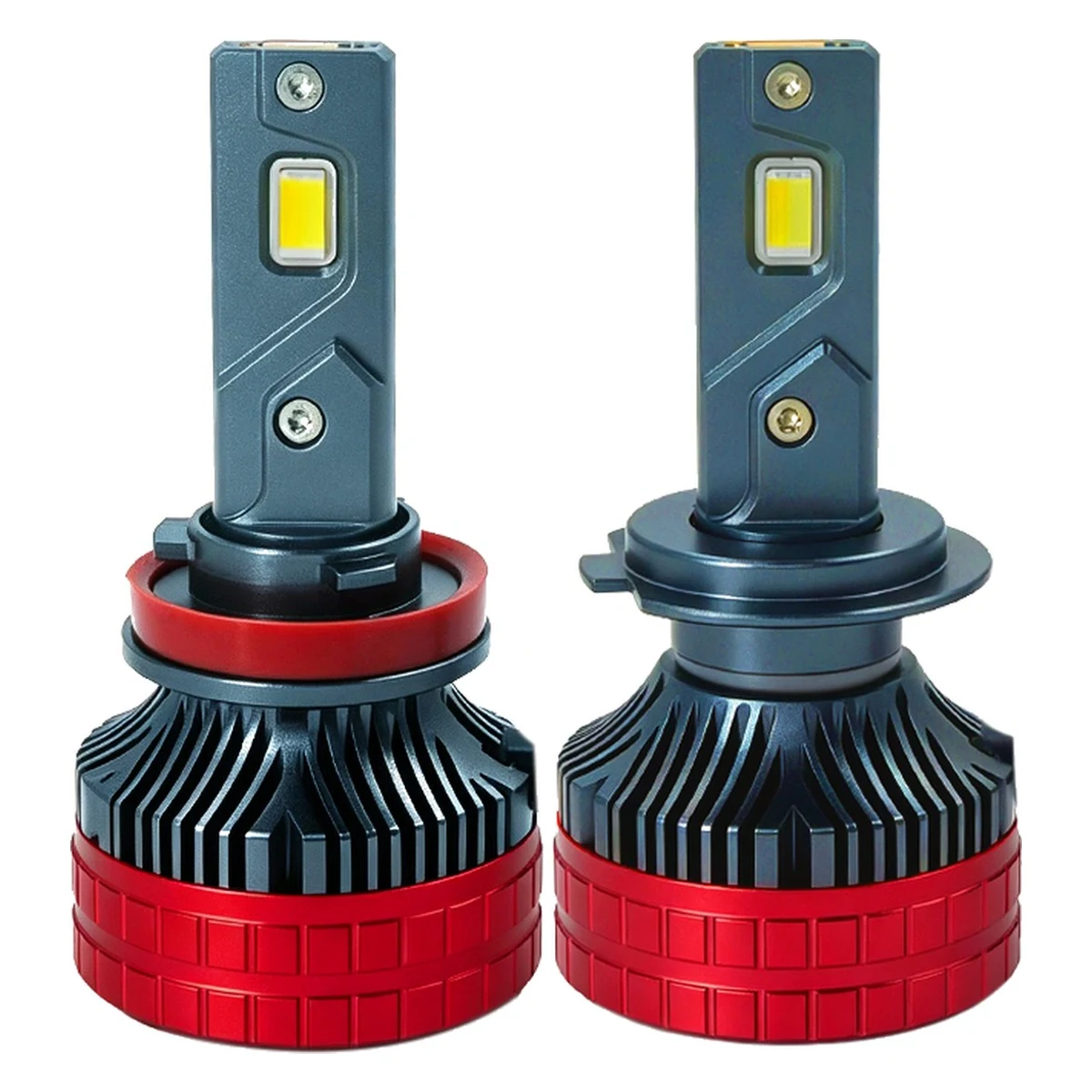

Request the videoThree colours from the cabin switch: 6000 K white, 4300 K warm white and 3000 K yellow, changed by flicking the low beam on and off. 150 W total, 50 W per colour, two copper heat pipes. The red rear cap makes it easy to sort a mixed carton, and the 8–60 V input means the same bulb also works on 24 V trucks.
Colour temperature, fitting mix inside a master carton, box artwork and label text, master-carton markings. Body design is fixed by the patent — a different shell is a separate tooling project, quoted on its own.
| SKU | N12 TC |

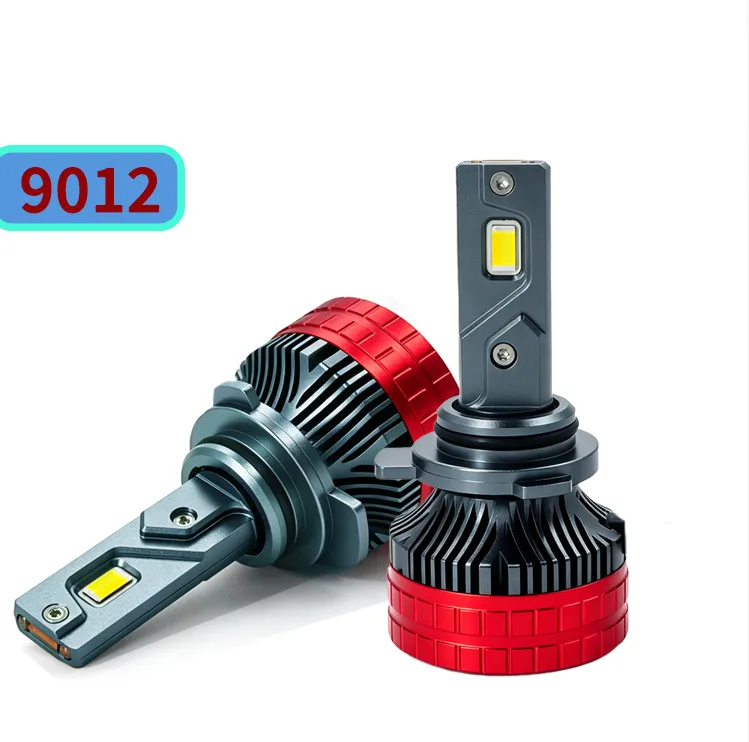

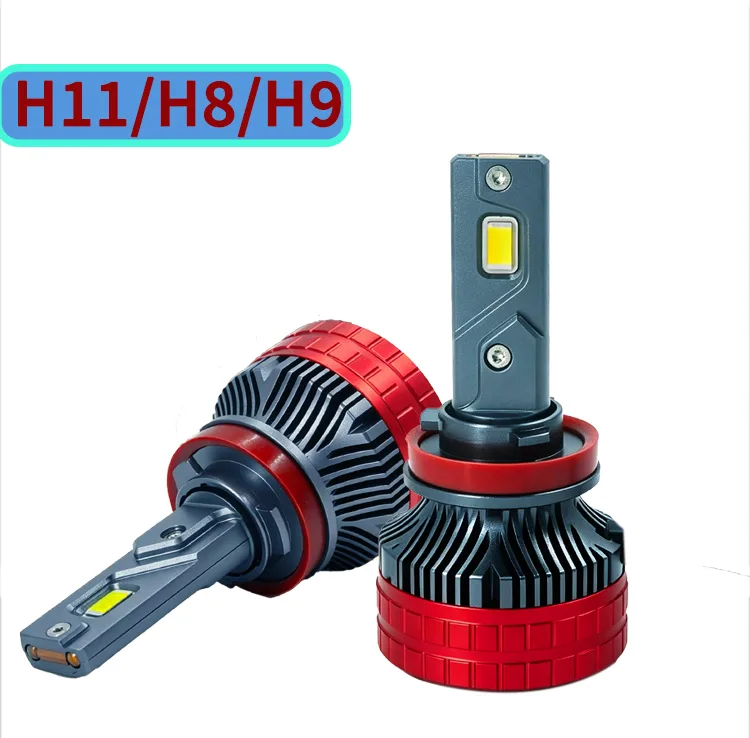

| Fittings | H1 · H3 · H4 · H7 · H8 · H9 · H11 · 9005 · 9006 · 9012 · D2H |
| Power | 150 W / set (50 W per colour) |
| Voltage | DC 8–60 V |
| Luminous flux | 42,000 lm / set (manufacturer rating) |
| Colour temperature | 6000 K · 4300 K · 3000 K |
| Colour switching | Cabin switch — low beam on / off |
| LED chips | CSP3570 |
| Cooling | Dual copper heat pipe + dual copper substrate + fan |
| Waterproof | IP68 |
| Lifespan | 50,000 h |
| Rear cap | Red |
| Patent | Design patent ZL202330622497.0 |
| Unit packing | 18 × 13.5 × 6 cm · 200 g (sold per single bulb) |
| Retail | 1 pc, shipped from stock |
| Wholesale | Mixed fittings per carton |
Every figure comes from our own product listing. Where a value is not published by the factory — measured lumens, for example — it is left out rather than estimated.
Take the numbers with you
Same figures as the table above — for your own approval file or to send on to a customer.
Product detail sheet · 24 panels · in the order the factory lays them out
FAQ

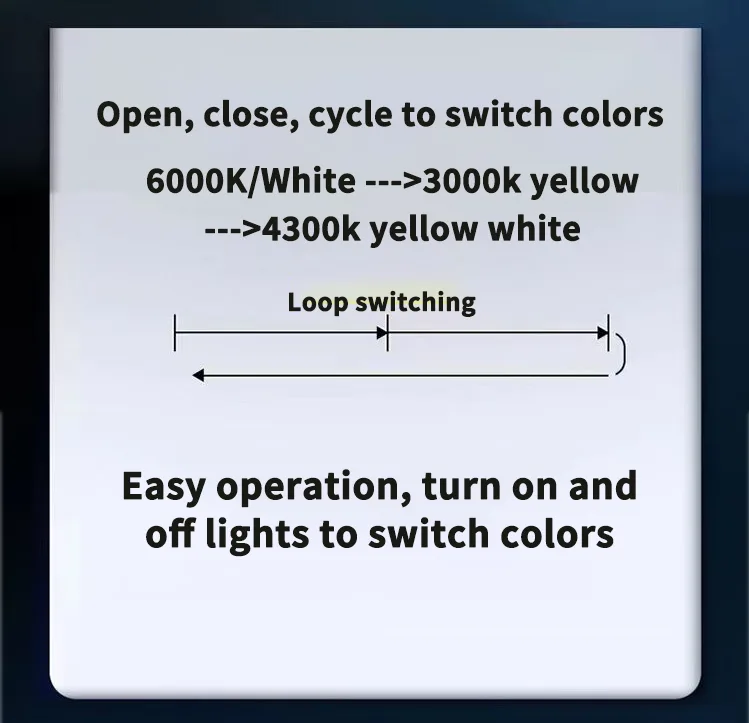

Toggle the low beam off and on: each toggle steps to the next colour, and the bulb remembers the last one. No handset to lose and nothing extra in the box, which keeps the landed cost down for markets that regulate remote-controlled lighting.
Per single bulb, the same rule our domestic store runs. A vehicle normally needs two, and H4 / D2H fittings price higher because the base costs more to make.
Yes. Eleven fittings run on one platform, so a mixed carton needs a single production run. Minimum is 2 pcs on stock specification.
Quote
Include your market and volume — compliance routing changes the answer.
