200 W · 48,000 lm · 6000/4300/3000 K · switch from cabin · CSP8050
Pick a model, a colour temperature and a lamp base — we confirm the exact build before invoicing.
18 × 13.5 × 6 cm · 200 g (sold per single bulb) · IP68 · 50,000 h
Both retail and wholesale are quoted by a person — one message with your market and quantity gets you the price sheet, the beam comparison and a shipping quote.
Reply in one business daySample before bulk25-day production
Details
Assembly, beam pattern and the numbers behind the build.

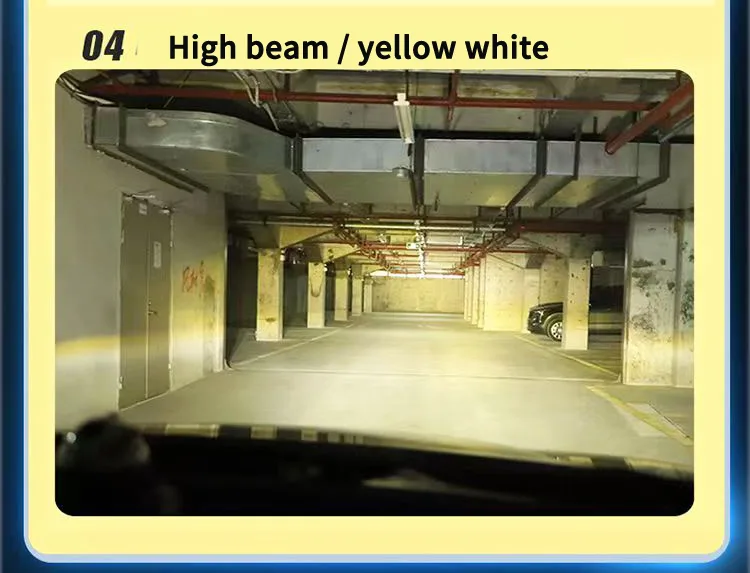

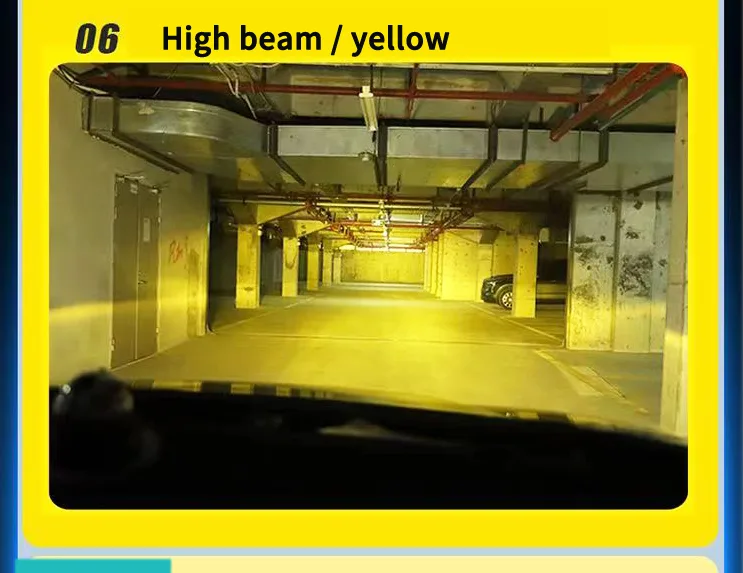

Driver potting, heatsink fit and the low/high beam wall test, filmed on our own bench. No clip on the shelf yet — ask and we send the current one.

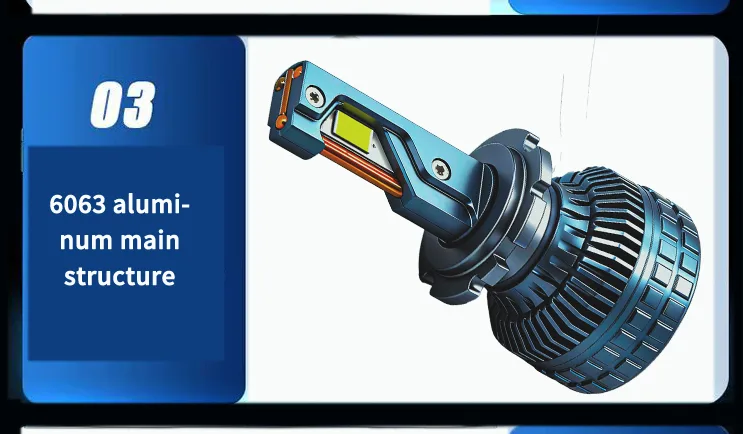

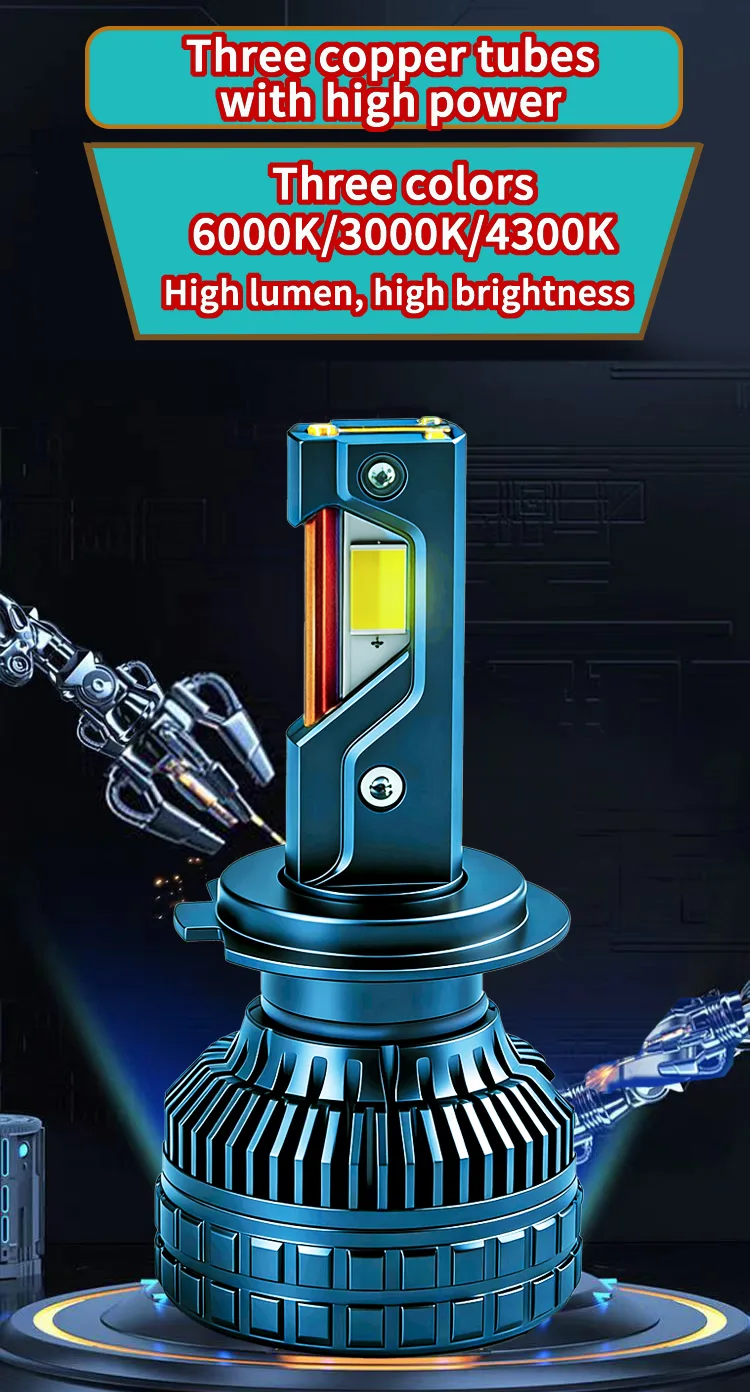

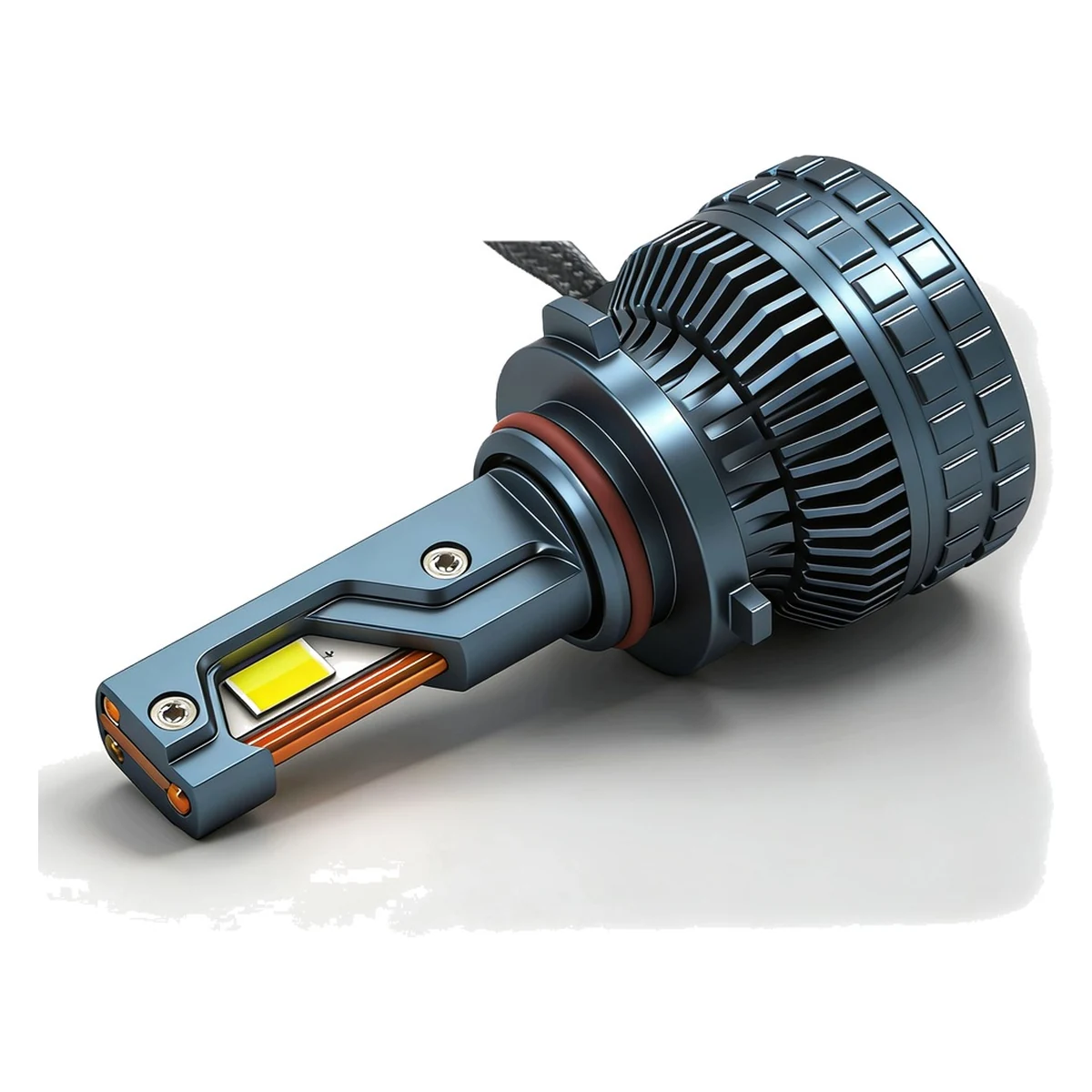

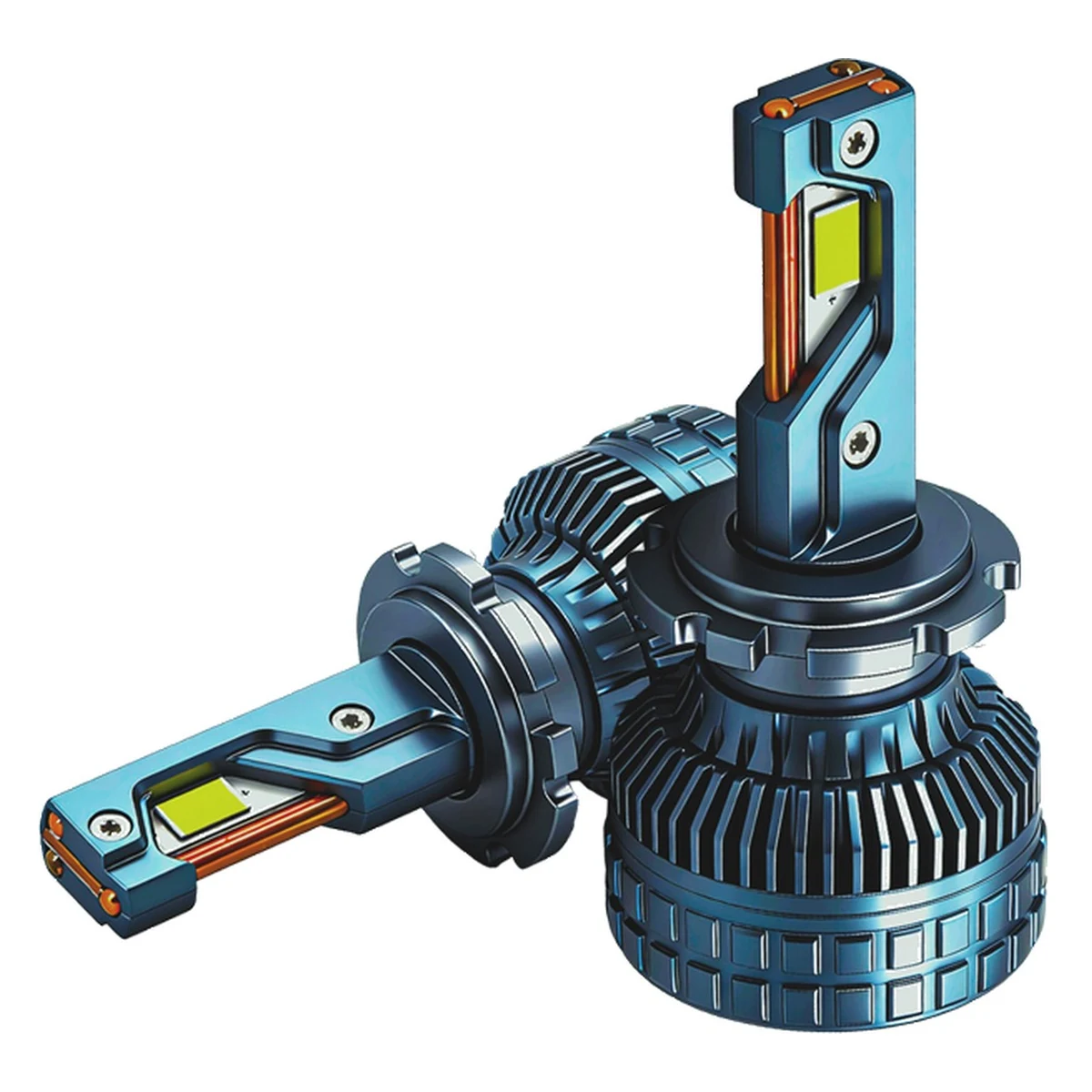

Request the videoThe N15S body with the three-colour driver: 6000 K, 4300 K and 3000 K from the cabin switch, 65 W per colour, 200 W total, CSP8050 chips on three copper heat pipes. Gun-metal rear cap and 8–60 V input. Same body and collar as the single-colour N15S, so both can sit in one carton without a second tooling set.
Colour temperature, fitting mix inside a master carton, box artwork and label text, master-carton markings. Body design is fixed by the patent — a different shell is a separate tooling project, quoted on its own.

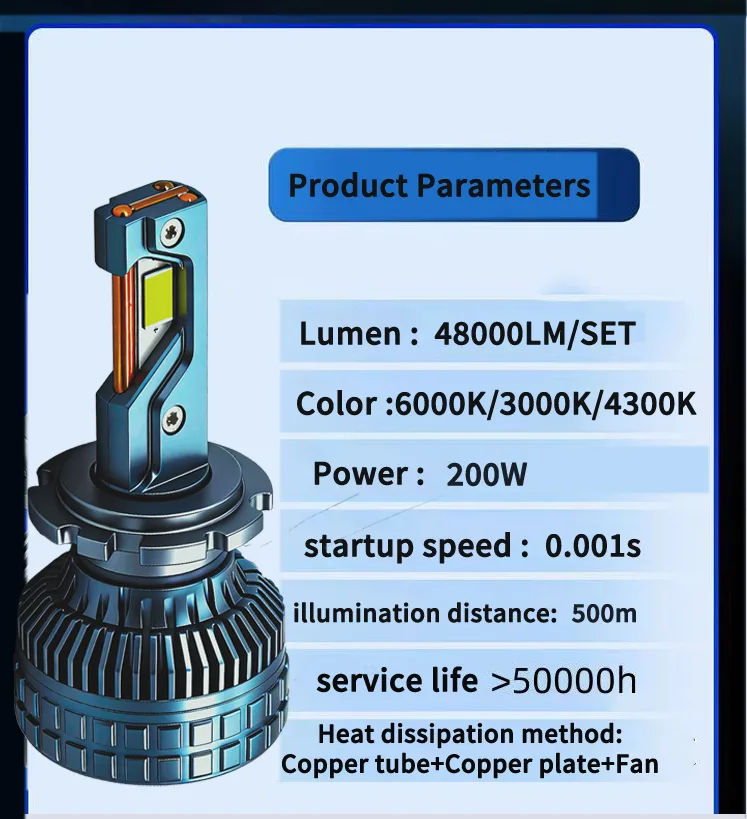

| SKU | N15S TC |

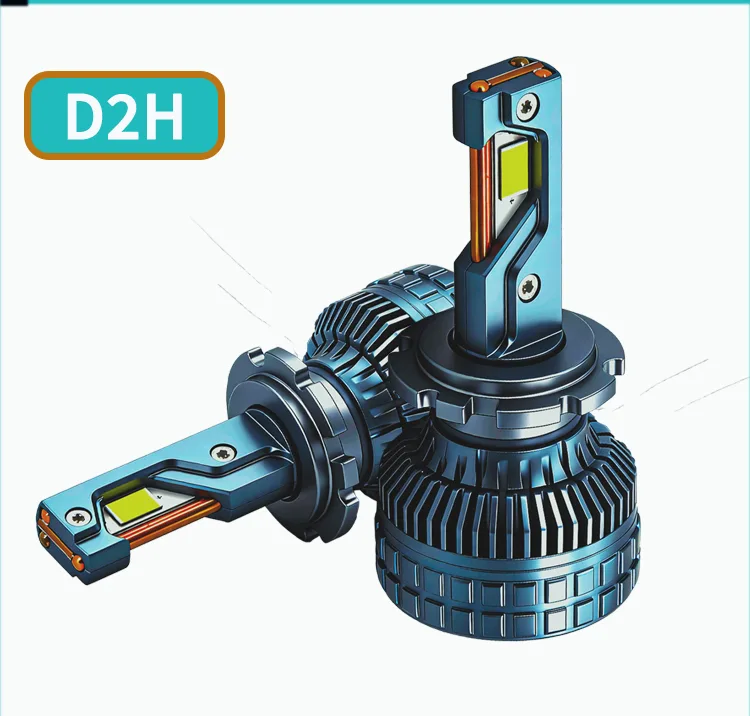

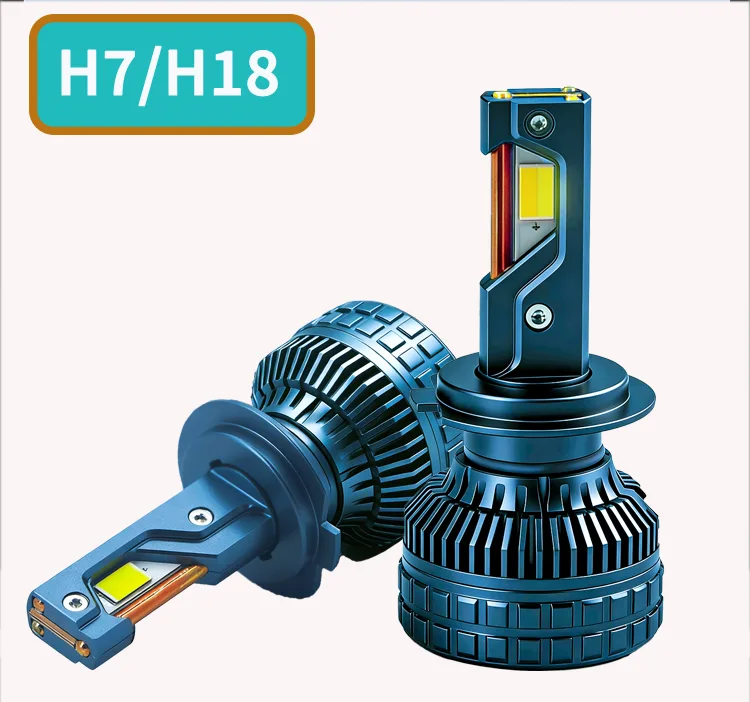

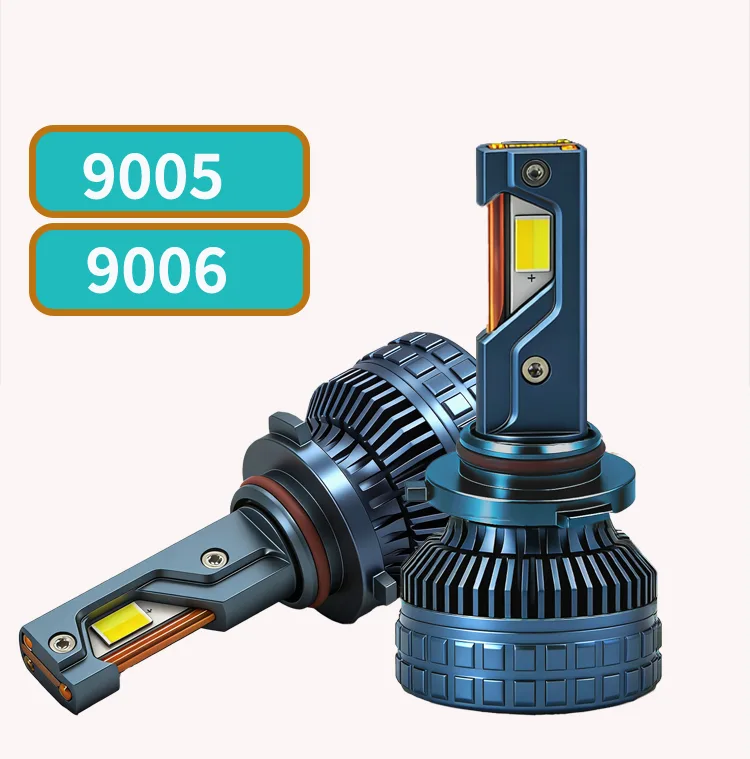

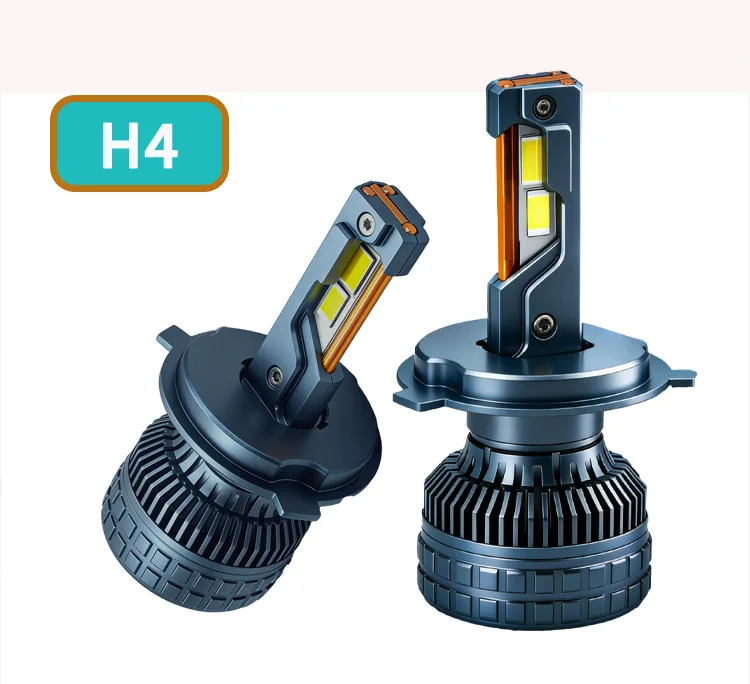

| Fittings | H1 · H3 · H4 · H7 · H8 · H9 · H11 · 9005 · 9006 · 9012 · D2H |
| Power | 200 W / set (65 W per colour) |
| Voltage | DC 8–60 V |
| Luminous flux | 48,000 lm / set (manufacturer rating) |

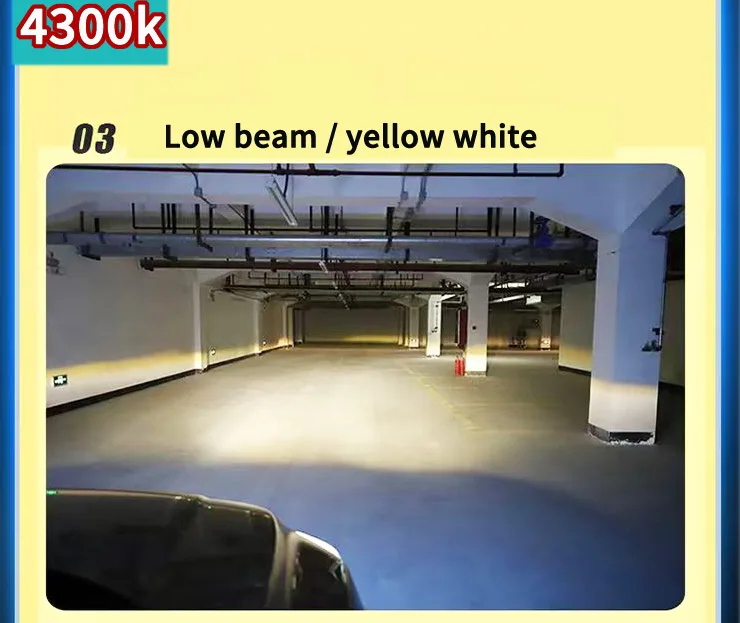

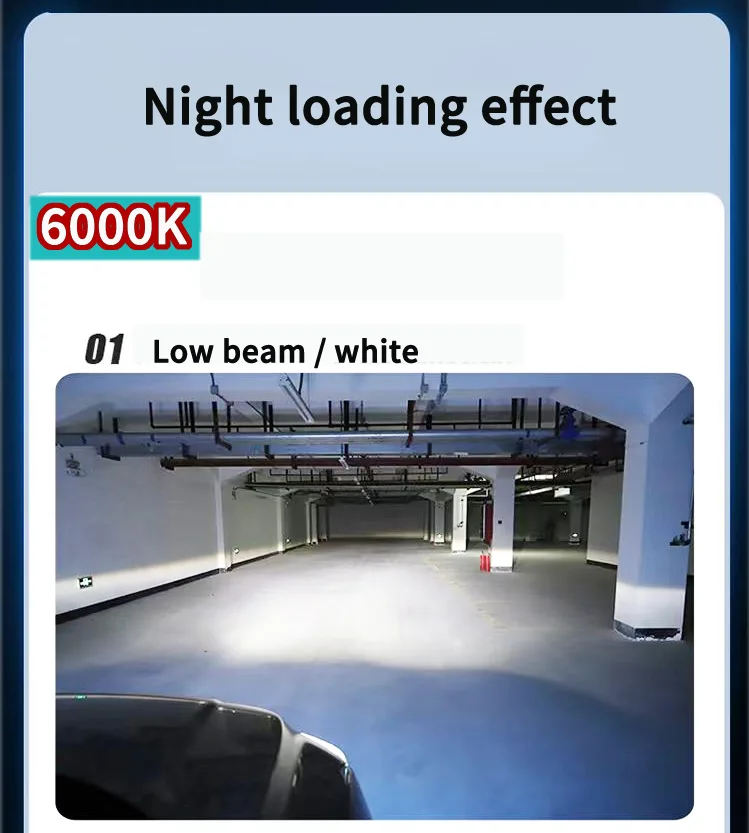

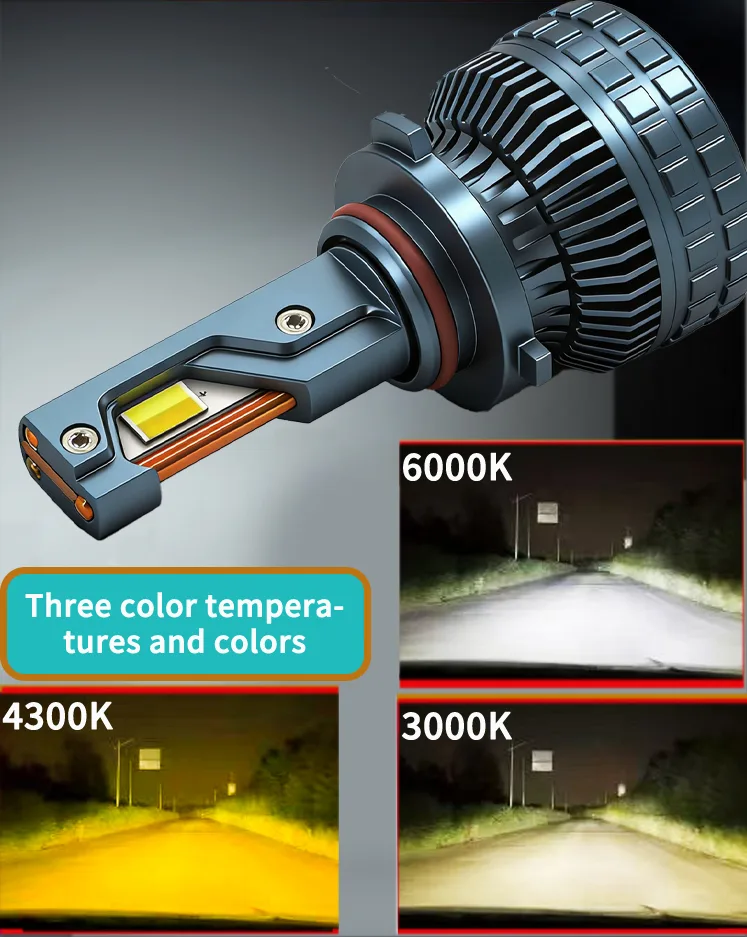

| Colour temperature | 6000 K · 4300 K · 3000 K |
| Colour switching | Cabin switch — low beam on / off |
| LED chips | CSP8050 |

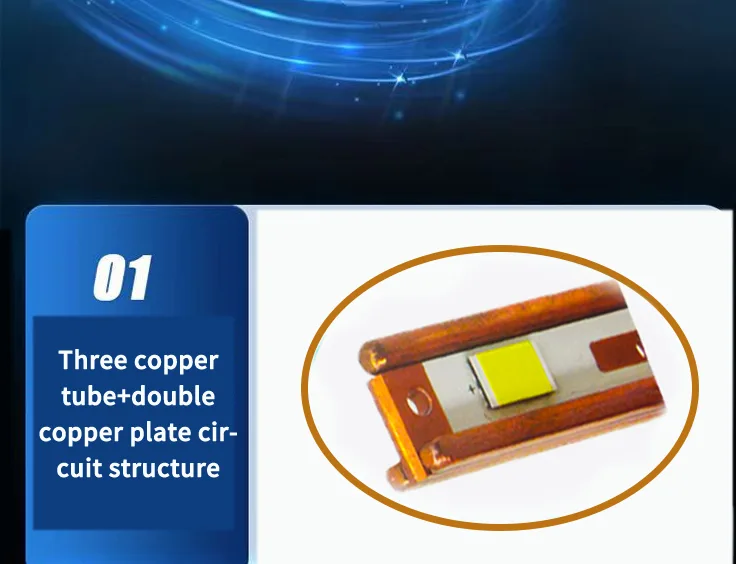

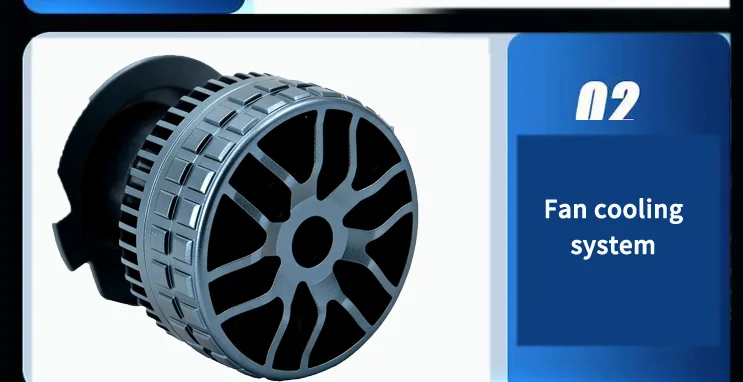

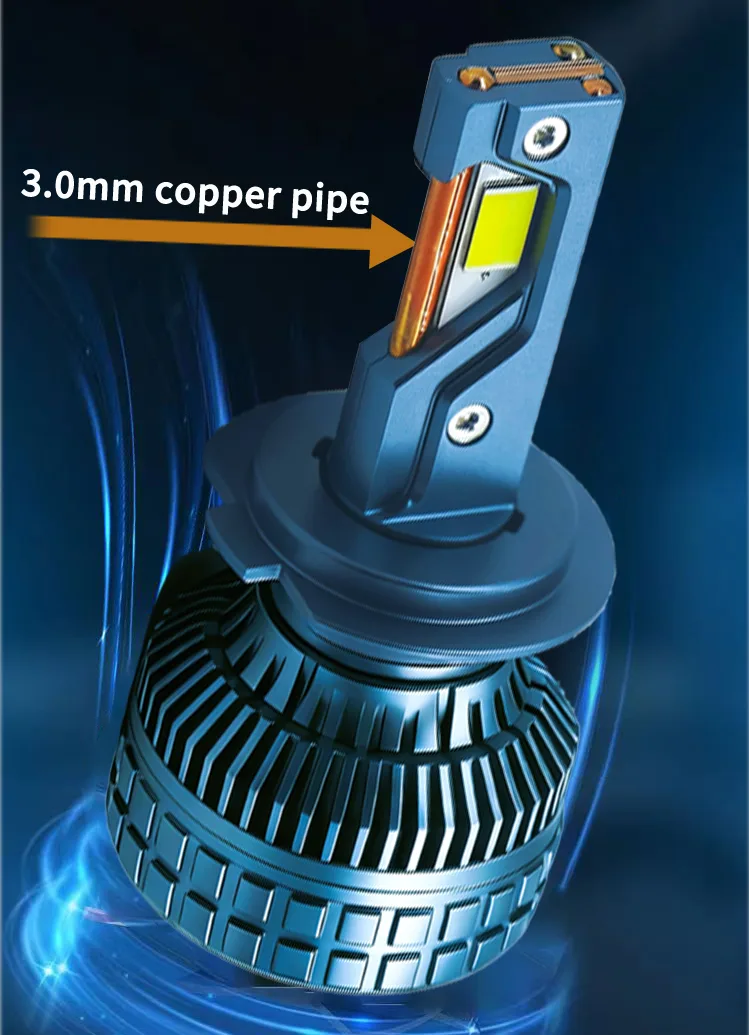

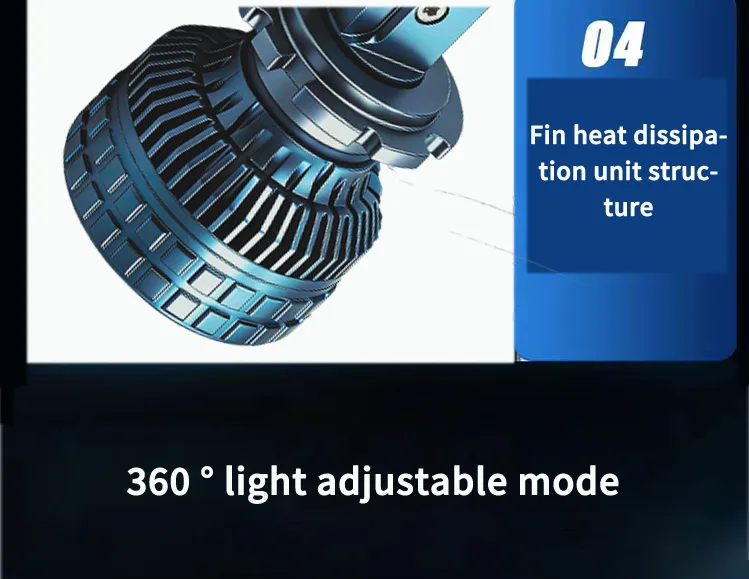

| Cooling | Triple copper heat pipe + dual copper substrate + fan |
| Waterproof | IP68 |
| Lifespan | 50,000 h |
| Rear cap | Gun-metal |
| Patent | Design patent ZL202330622497.0 |
| Unit packing | 18 × 13.5 × 6 cm · 200 g (sold per single bulb) |
| Retail | 1 pc, shipped from stock |
| Wholesale | Mixed fittings per carton |
Every figure comes from our own product listing. Where a value is not published by the factory — measured lumens, for example — it is left out rather than estimated.
Take the numbers with you
Same figures as the table above — for your own approval file or to send on to a customer.
Product detail sheet · 27 panels · in the order the factory lays them out
FAQ
Yes — the driver adds cost. We quote both side by side so you can see what the extra colour settings actually cost per unit before you commit to a carton mix.
Per single bulb, the same rule our domestic store runs. A vehicle normally needs two, and H4 / D2H fittings price higher because the base costs more to make.
No, and we do not describe any SKU as E-marked or DOT compliant. Our listings carry a design patent (ZL202330622497.0), not a type approval. If your market requires one, we say so before you order.
Quote
Include your market and volume — compliance routing changes the answer.
