260 W · 52,000 lm · 6000/4300 K · triple pipe · CSP8050
Pick a model, a colour temperature and a lamp base — we confirm the exact build before invoicing.
18 × 13.5 × 6 cm · 200 g (sold per single bulb) · IP68 · 50,000 h
Both retail and wholesale are quoted by a person — one message with your market and quantity gets you the price sheet, the beam comparison and a shipping quote.
Reply in one business daySample before bulk25-day production
Details
Assembly, beam pattern and the numbers behind the build.

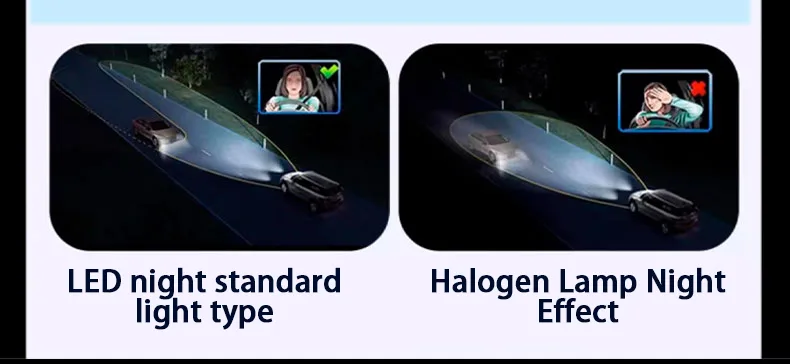

Driver potting, heatsink fit and the low/high beam wall test, filmed on our own bench. No clip on the shelf yet — ask and we send the current one.

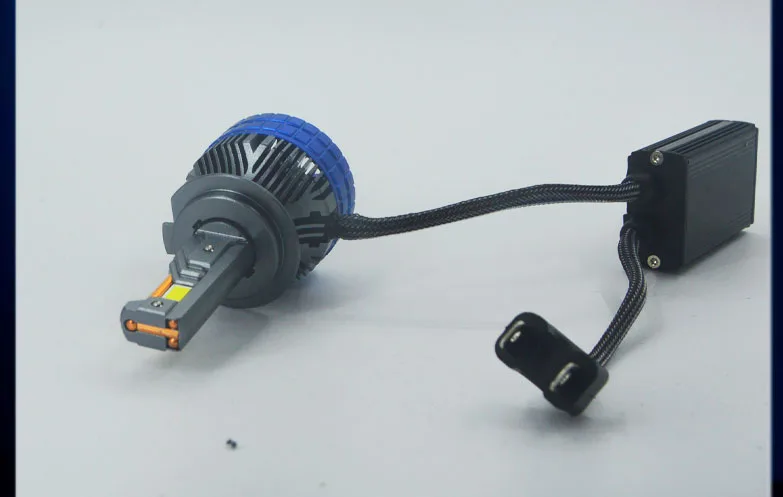

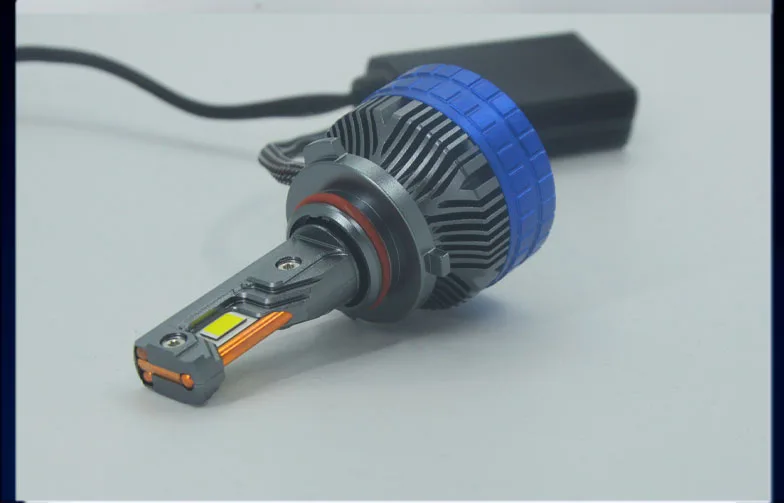

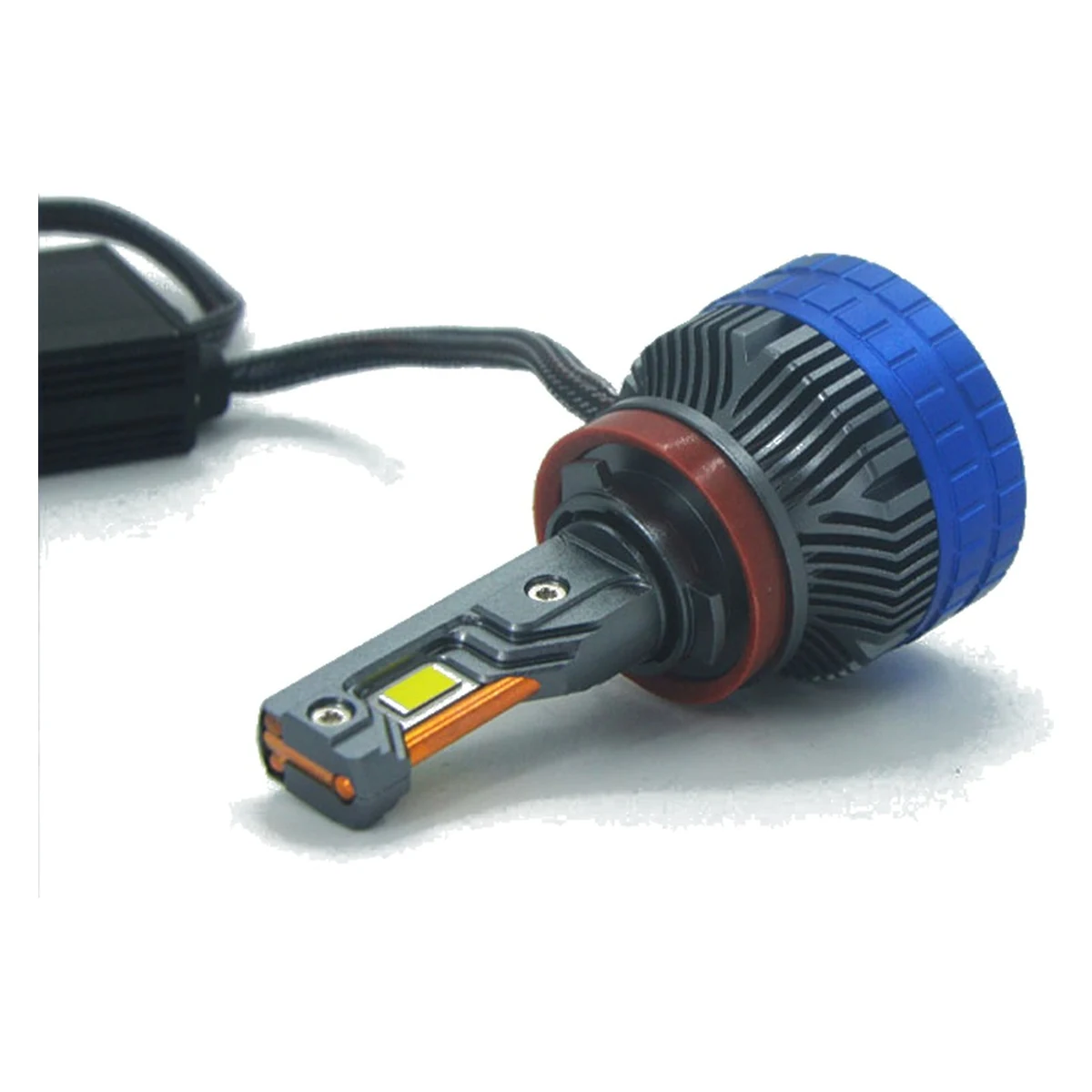

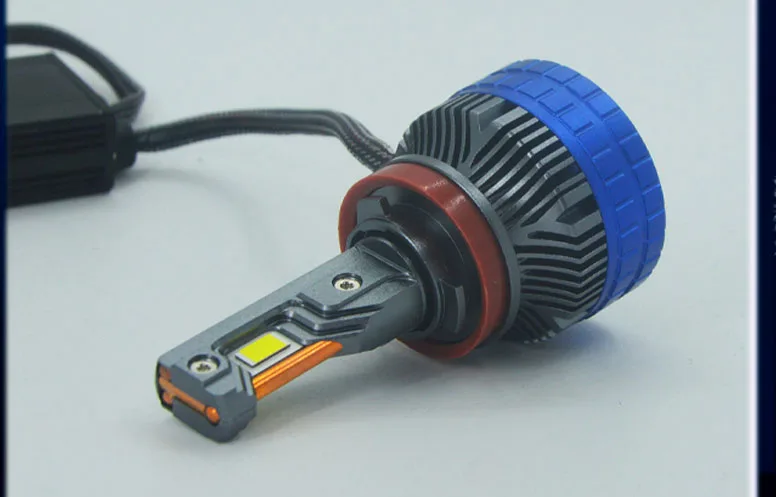

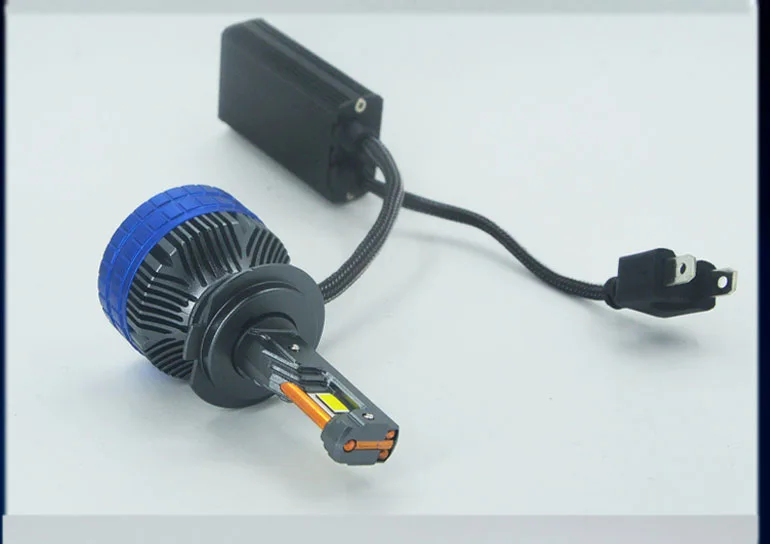

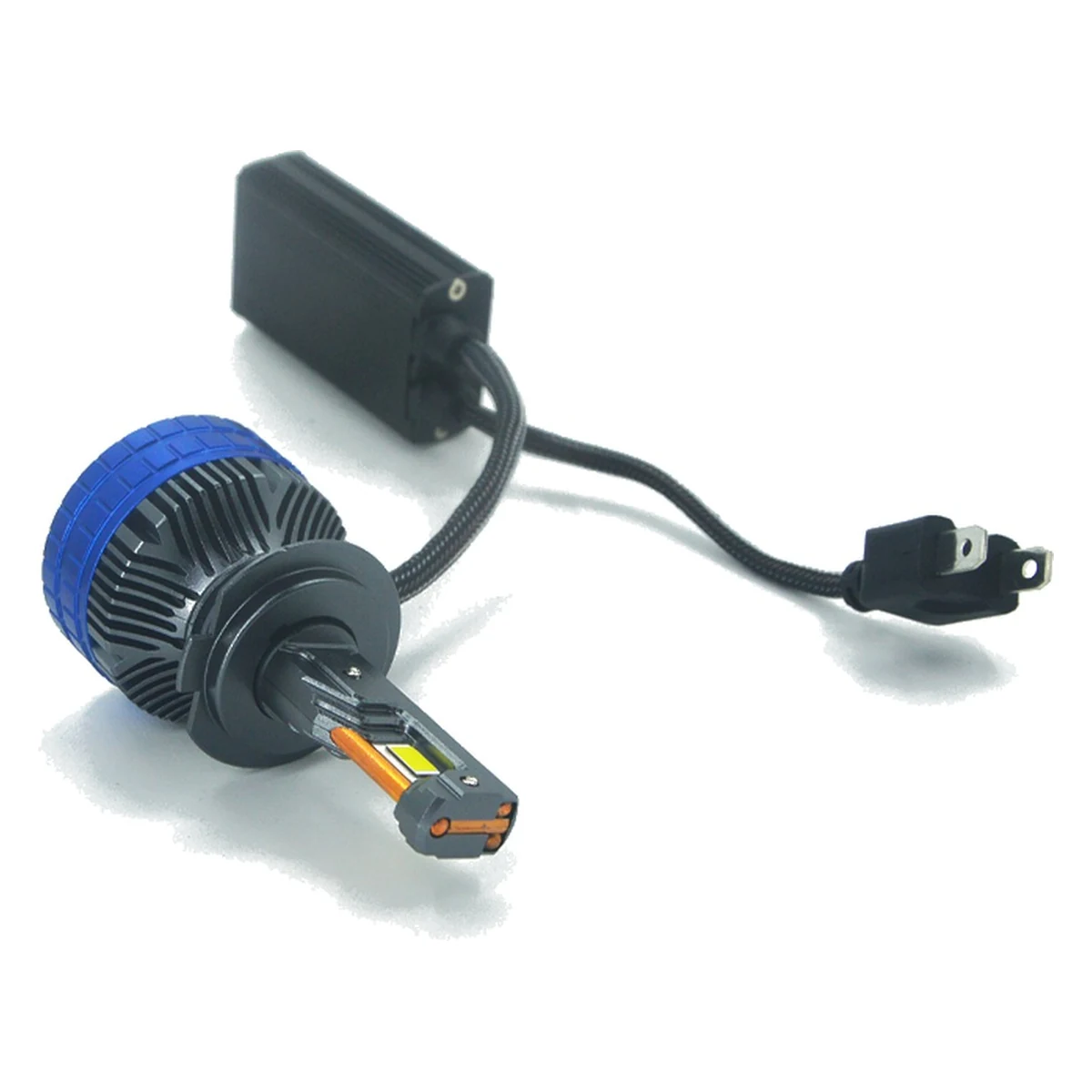

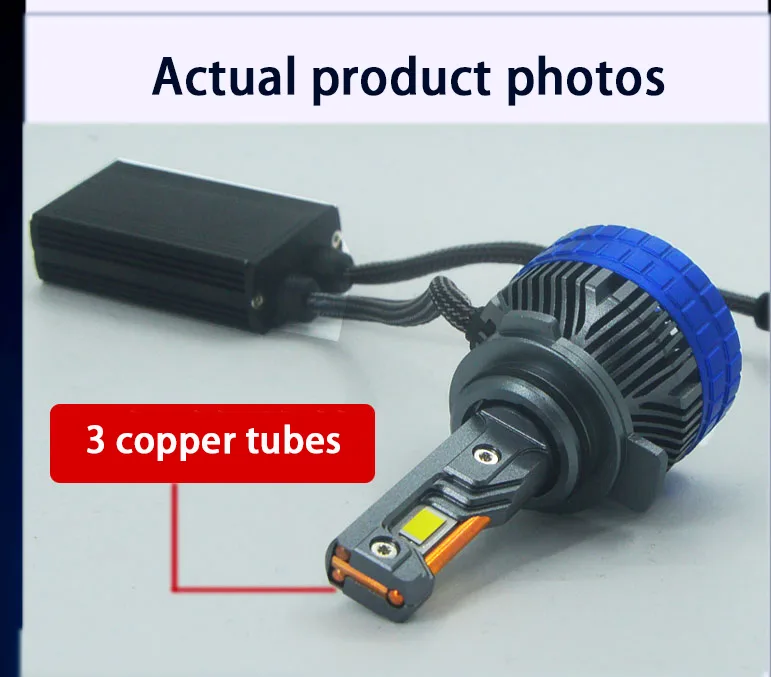

Request the videoThe volume model. 260 W, 52,000 lm per set, three copper heat pipes pulling heat off a CSP8050 pair and spreading it into the aluminium body — which is what lets the driver live inside an 18 × 13.5 × 6 cm housing without cooking itself. Blue rear cap, 6000 K and 4300 K builds. It shares the body and collar with the rest of the family, so a mixed carton still needs one tooling set.
Colour temperature, fitting mix inside a master carton, box artwork and label text, master-carton markings. Body design is fixed by the patent — a different shell is a separate tooling project, quoted on its own.
| SKU | N13S |

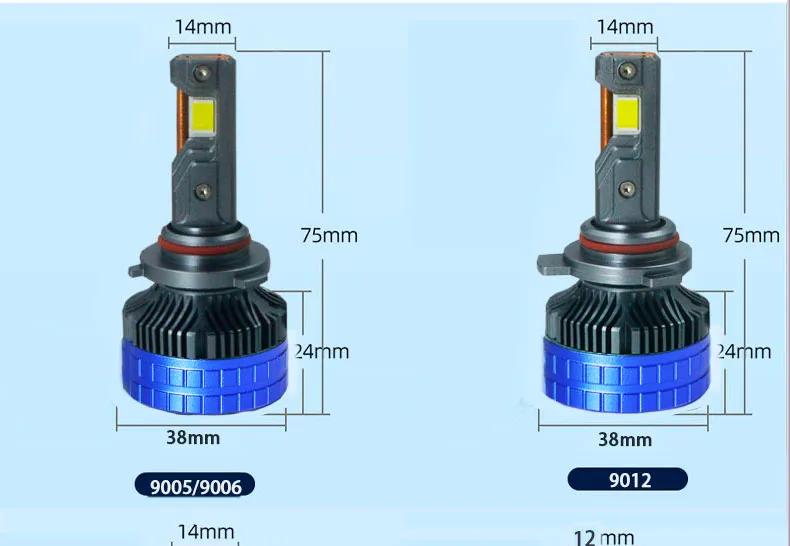

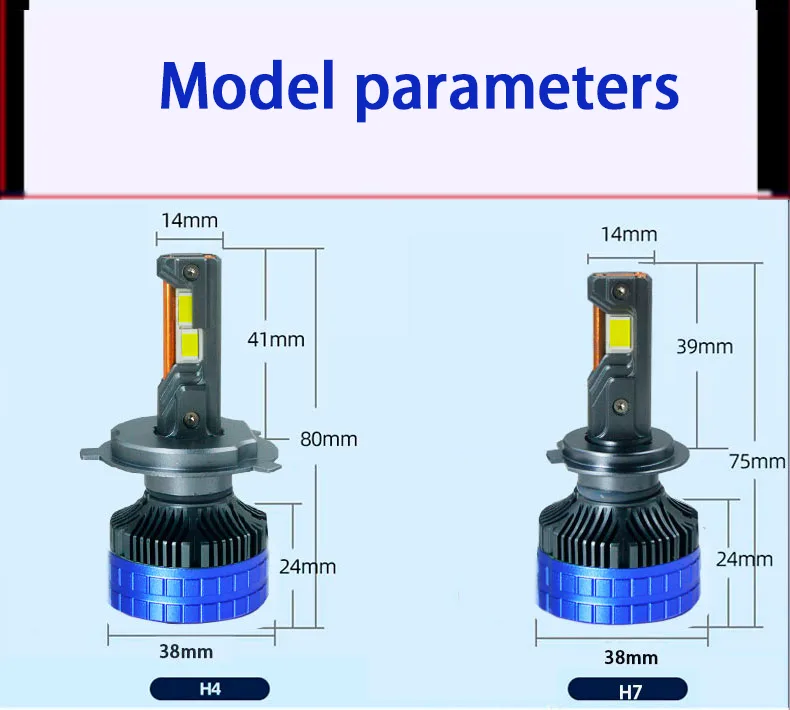

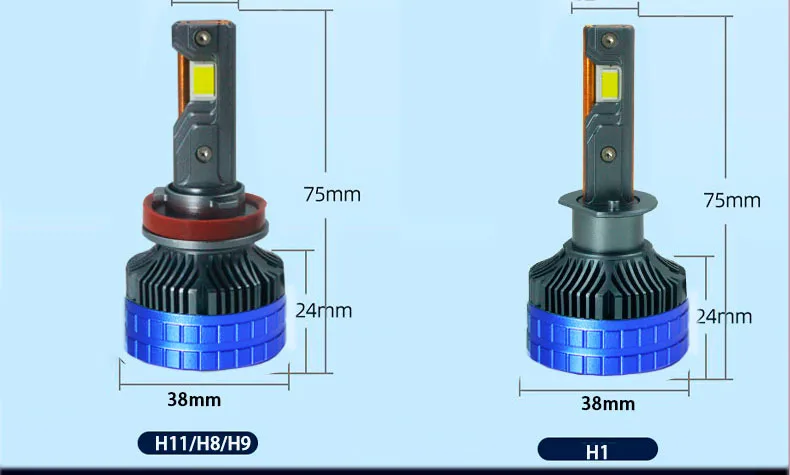

| Fittings | H1 · H3 · H4 · H7 · H8 · H9 · H11 · 9005 · 9006 · 9012 · D2H |
| Power | 260 W / set |
| Voltage | DC 8–32 V |
| Luminous flux | 52,000 lm / set (manufacturer rating) |
| Colour temperature | 6000 K · 4300 K |
| Colour switching | Fixed at order |

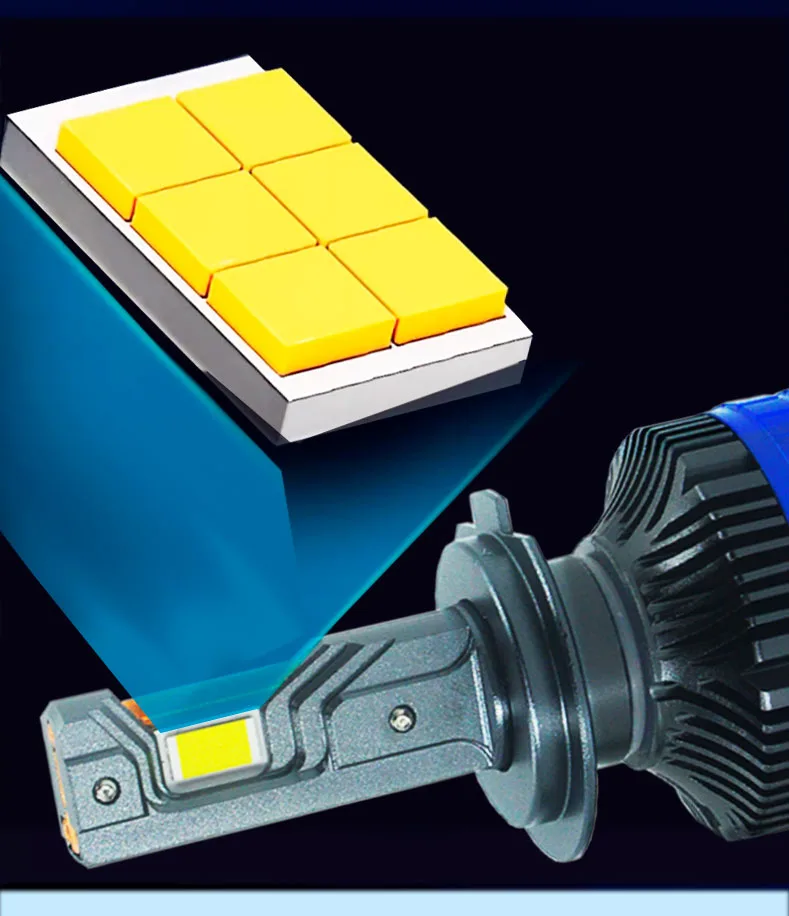

| LED chips | CSP8050 |

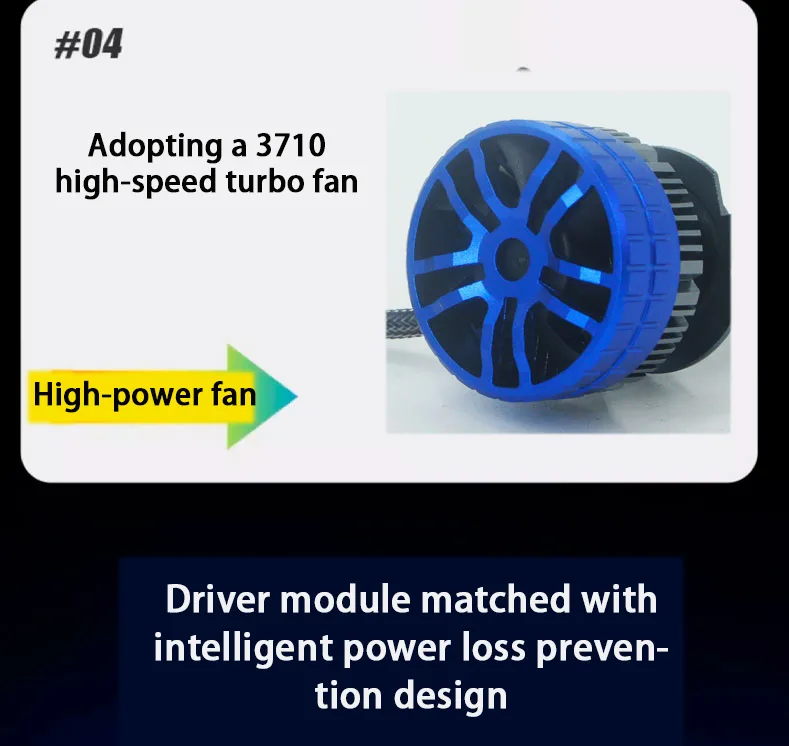

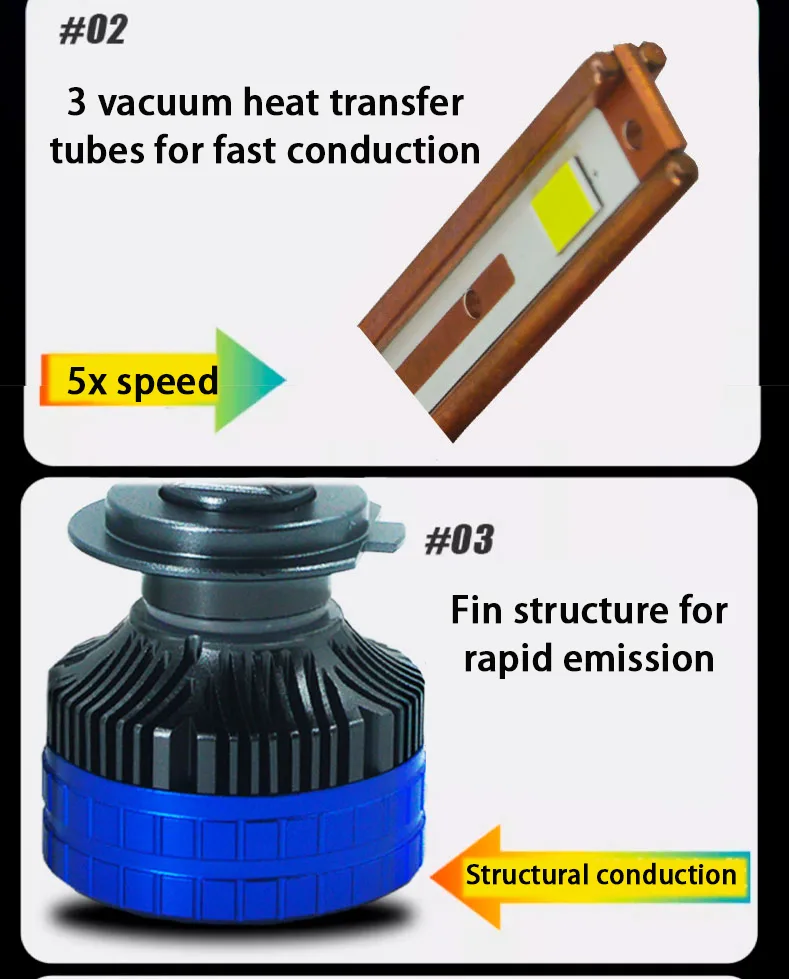

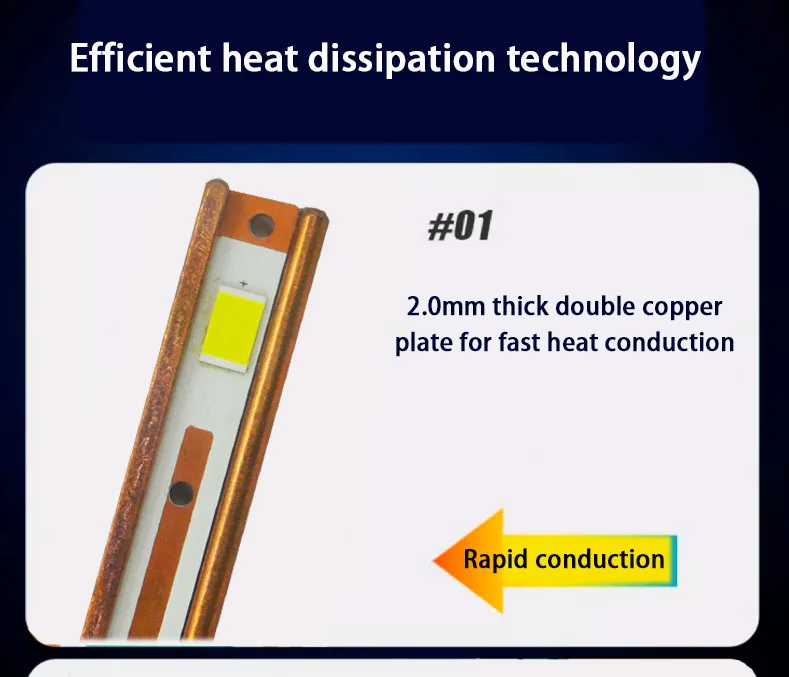

| Cooling | Triple copper heat pipe + dual copper substrate + fan |
| Waterproof | IP68 |
| Lifespan | 50,000 h |
| Rear cap | Blue |
| Patent | Design patent ZL202330622497.0 |
| Unit packing | 18 × 13.5 × 6 cm · 200 g (sold per single bulb) |
| Retail | 1 pc, shipped from stock |
| Wholesale | Mixed fittings per carton |
Every figure comes from our own product listing. Where a value is not published by the factory — measured lumens, for example — it is left out rather than estimated.
Take the numbers with you
Same figures as the table above — for your own approval file or to send on to a customer.
Product detail sheet · 21 panels · in the order the factory lays them out
FAQ
That is the manufacturer rating printed on the box, and we quote it as such rather than as an independently measured figure. If your market compares lumen numbers against laboratory data, ask us for the wattage-led comparison instead — we would rather lose the spec-sheet argument than the repeat order.
Per single bulb, the same rule our domestic store runs. A vehicle normally needs two, and H4 / D2H fittings price higher because the base costs more to make.
No, and we do not describe any SKU as E-marked or DOT compliant. Our listings carry a design patent (ZL202330622497.0), not a type approval. If your market requires one, we say so before you order.
Quote
Include your market and volume — compliance routing changes the answer.
