270 W · 56,000 lm · 6000/4300 K · triple pipe · CSP8050
Pick a model, a colour temperature and a lamp base — we confirm the exact build before invoicing.
18 × 13.5 × 6 cm · 200 g (sold per single bulb) · IP68 · 50,000 h
Both retail and wholesale are quoted by a person — one message with your market and quantity gets you the price sheet, the beam comparison and a shipping quote.
Reply in one business daySample before bulk25-day production
Details
Assembly, beam pattern and the numbers behind the build.

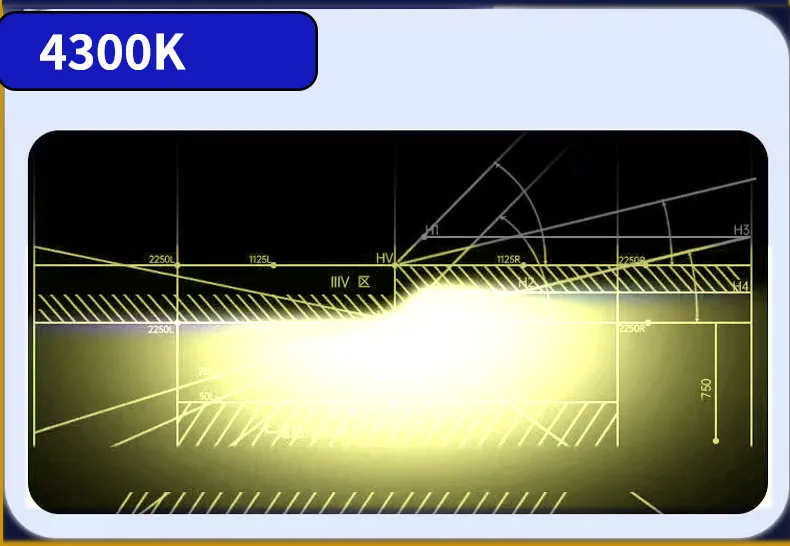

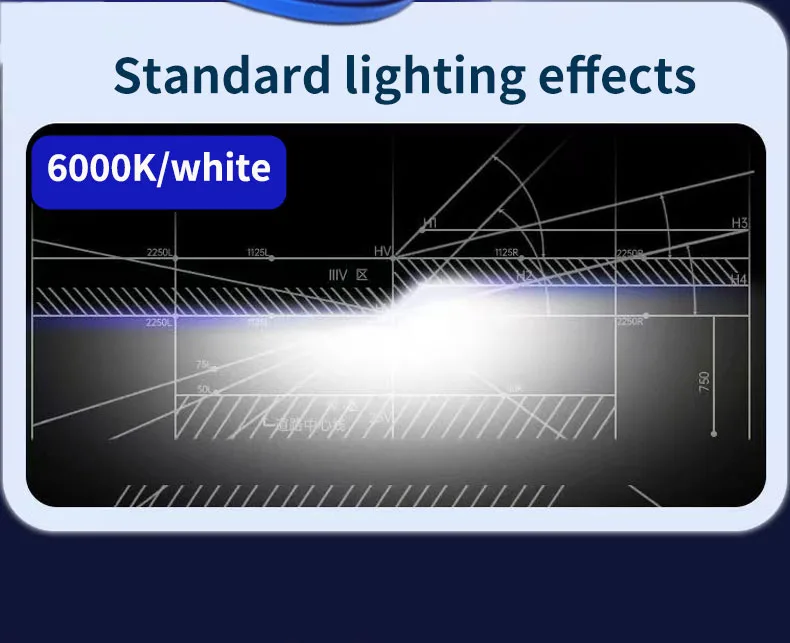

Driver potting, heatsink fit and the low/high beam wall test, filmed on our own bench. No clip on the shelf yet — ask and we send the current one.

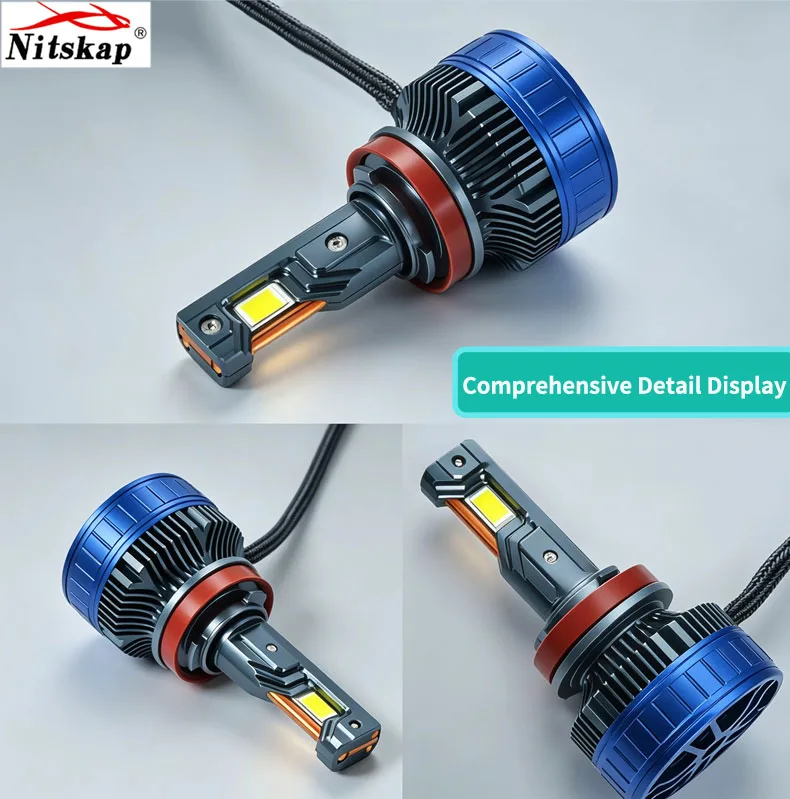

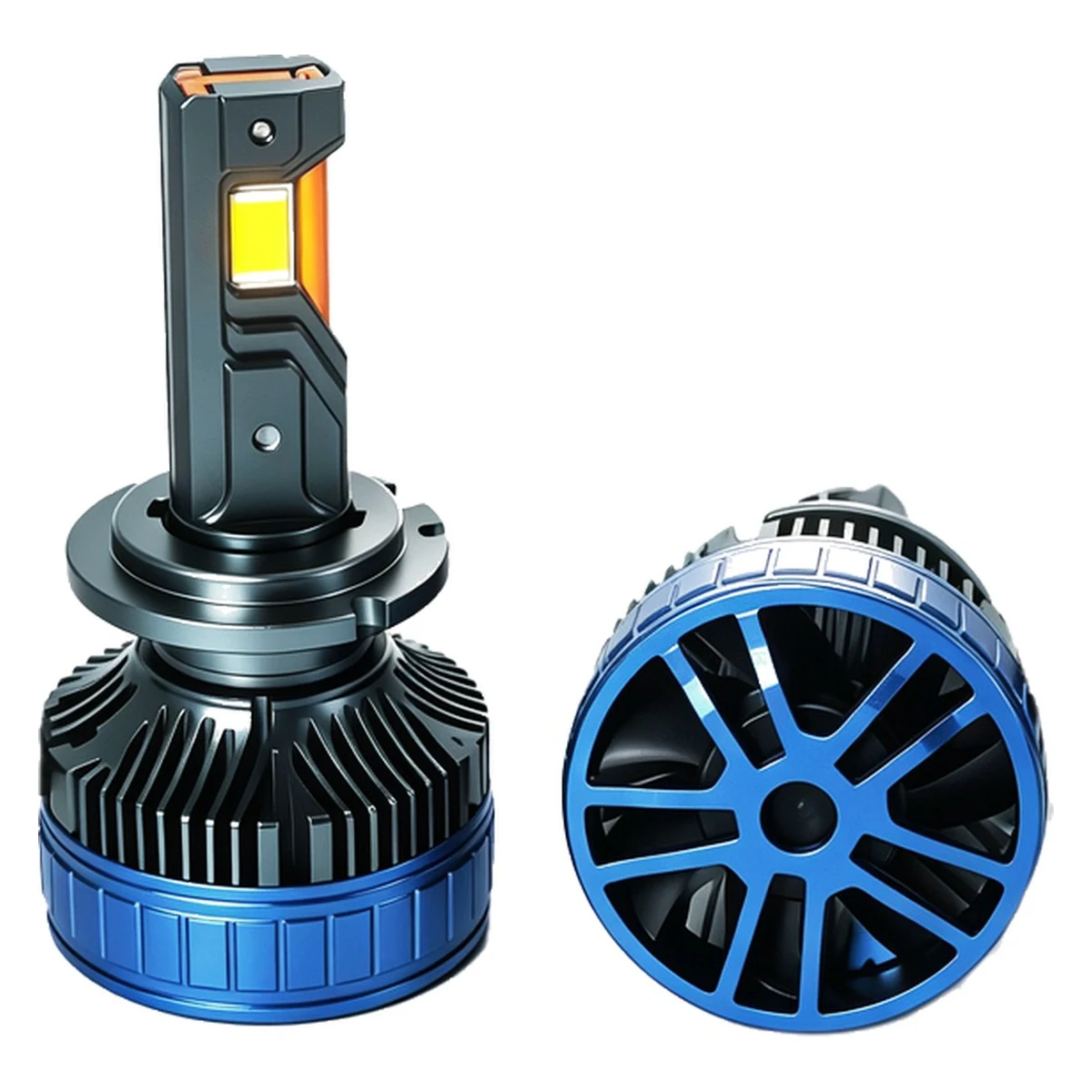

Request the videoThe top of the standard line: 270 W, 56,000 lm per set, three copper heat pipes and dual copper substrates under a CSP8050 pair. Meteor-blue rear cap. This is the SKU that carries the spec sheet in markets where buyers compare lumen figures on the box, and it holds the same body, collar and packing as the 260 W N13S — so a distributor can stock both without a second set of spare parts.
Colour temperature, fitting mix inside a master carton, box artwork and label text, master-carton markings. Body design is fixed by the patent — a different shell is a separate tooling project, quoted on its own.

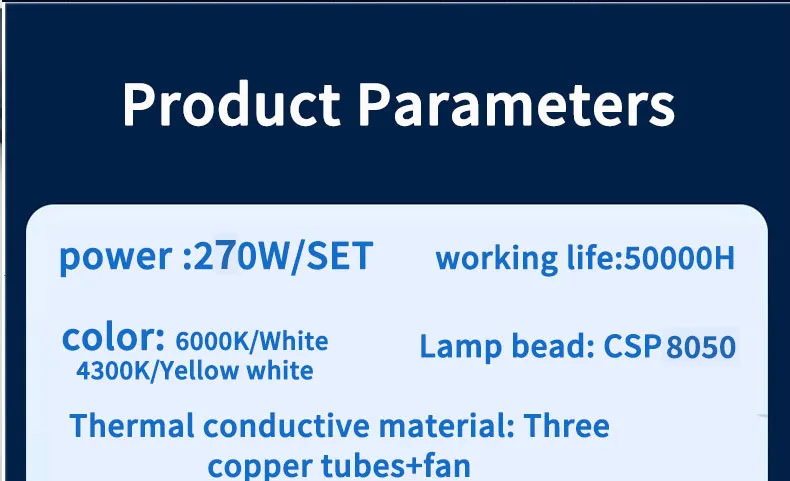

| SKU | N13S PLUS |

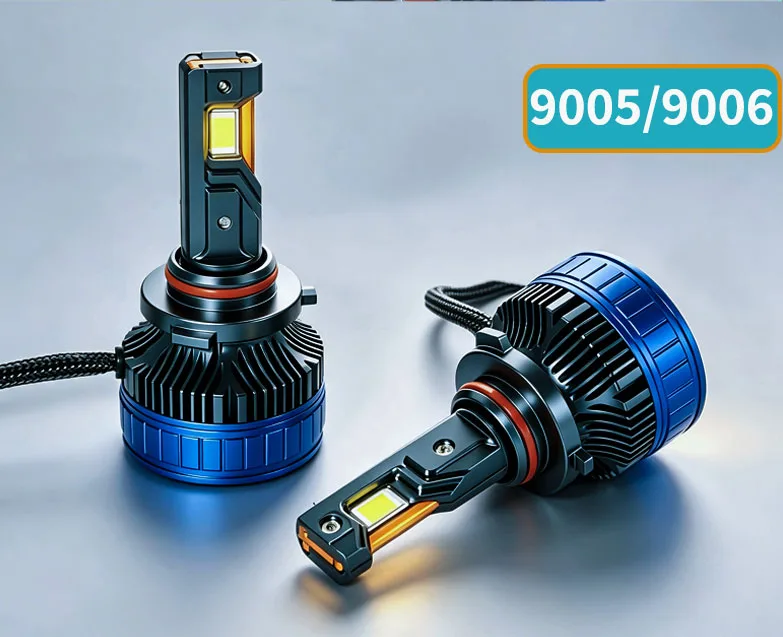

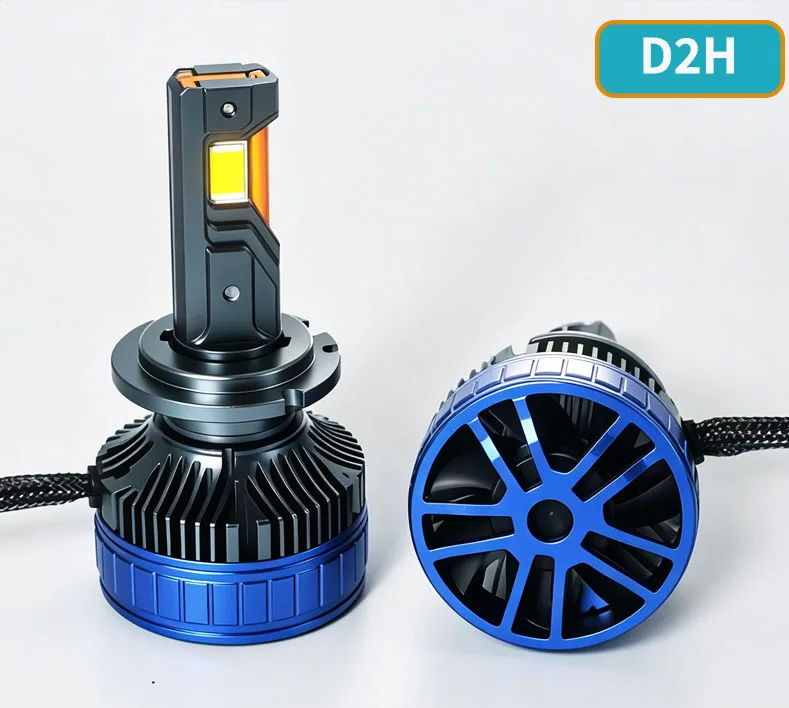

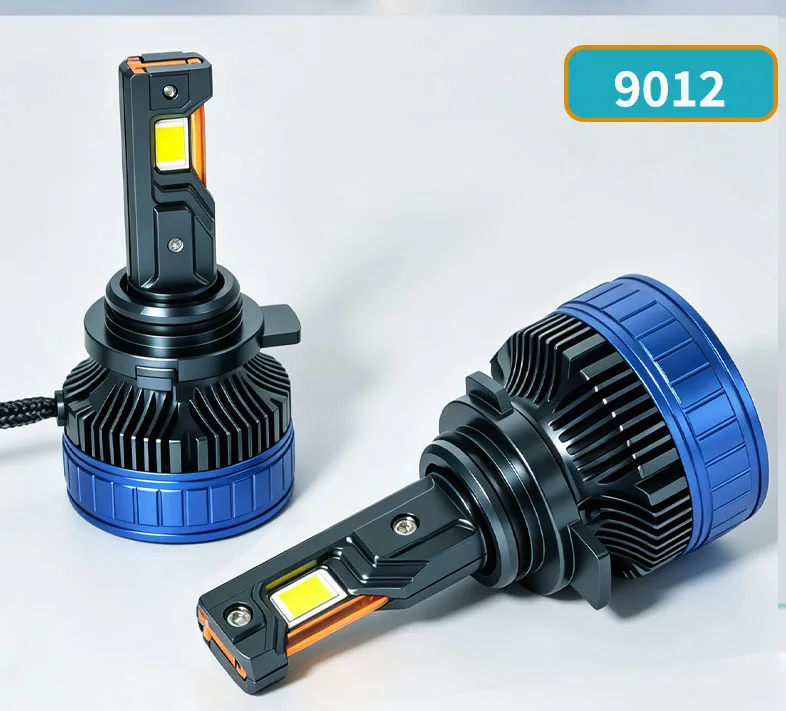

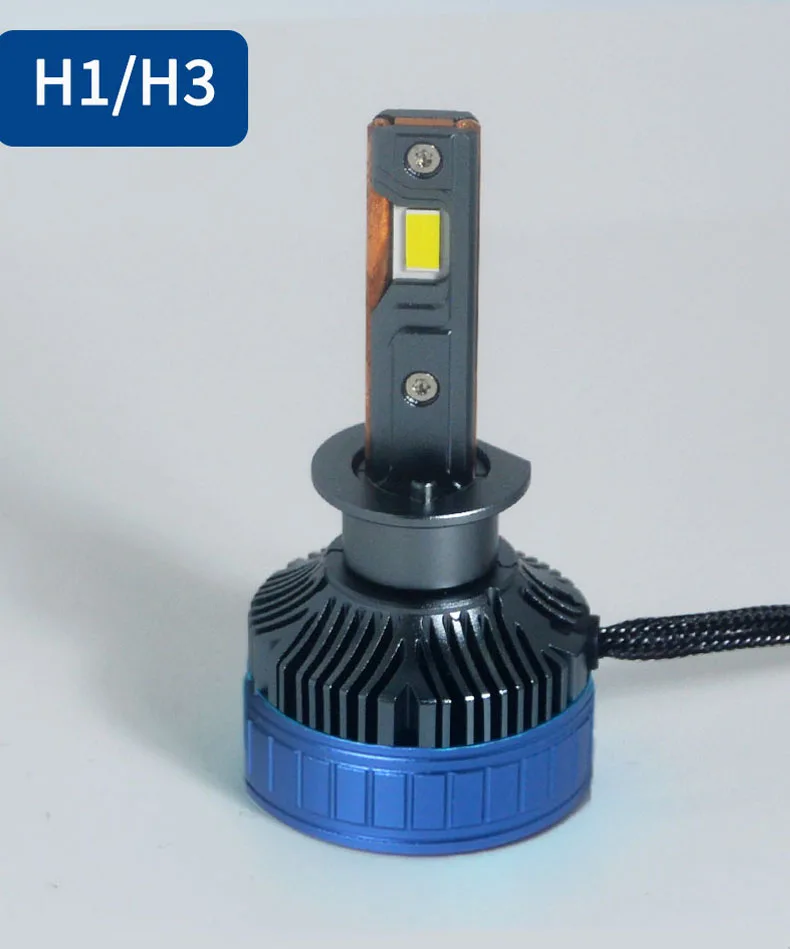

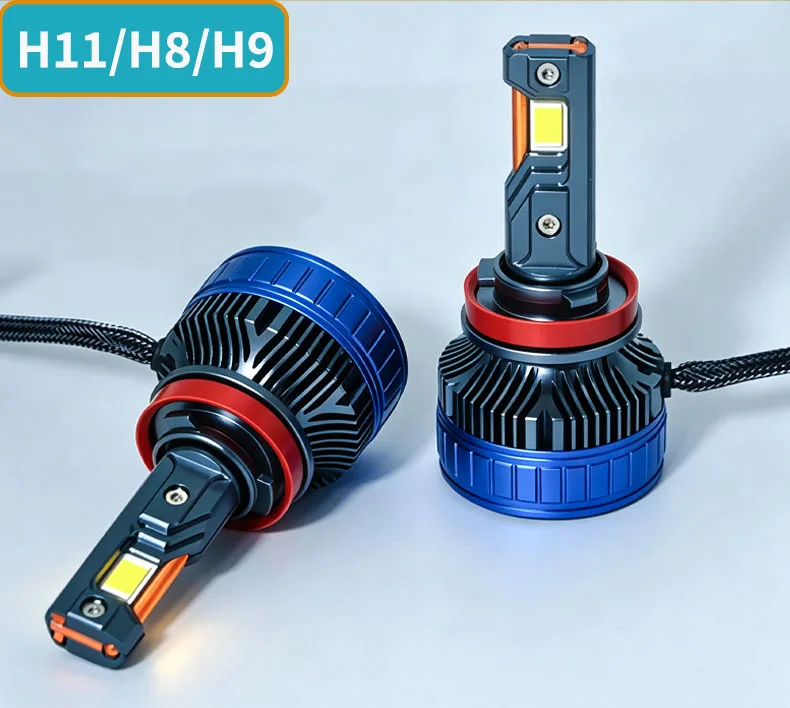

| Fittings | H1 · H3 · H4 · H7 · H8 · H9 · H11 · 9005 · 9006 · 9012 · D2H |
| Power | 270 W / set |
| Voltage | DC 8–32 V |
| Luminous flux | 56,000 lm / set (manufacturer rating) |

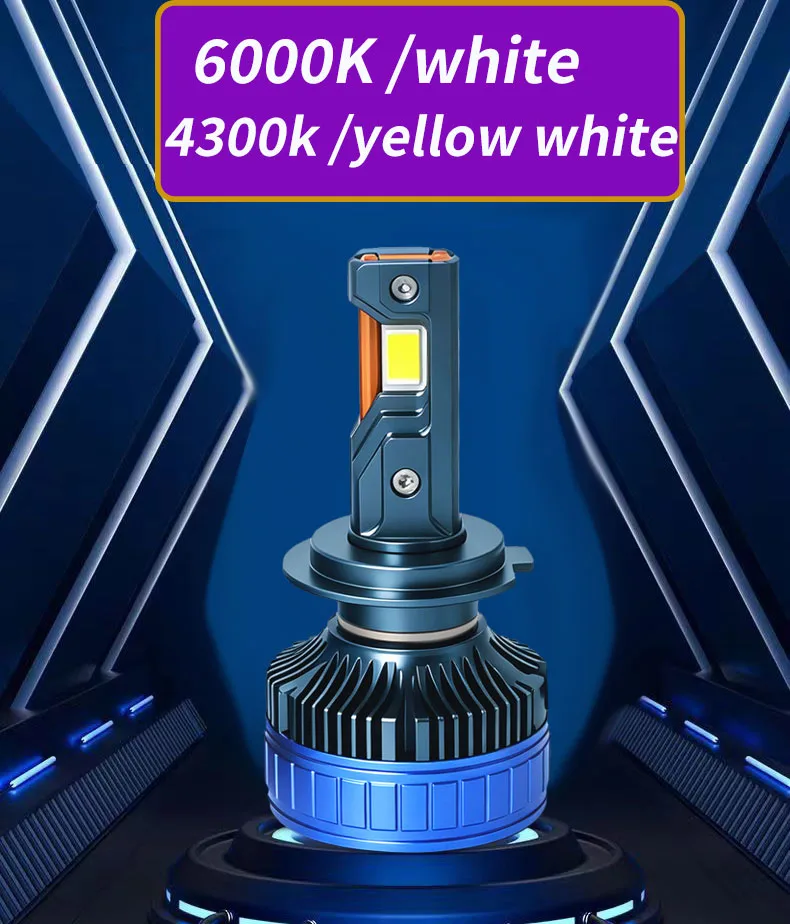

| Colour temperature | 6000 K · 4300 K |
| Colour switching | Fixed at order |
| LED chips | CSP8050 |

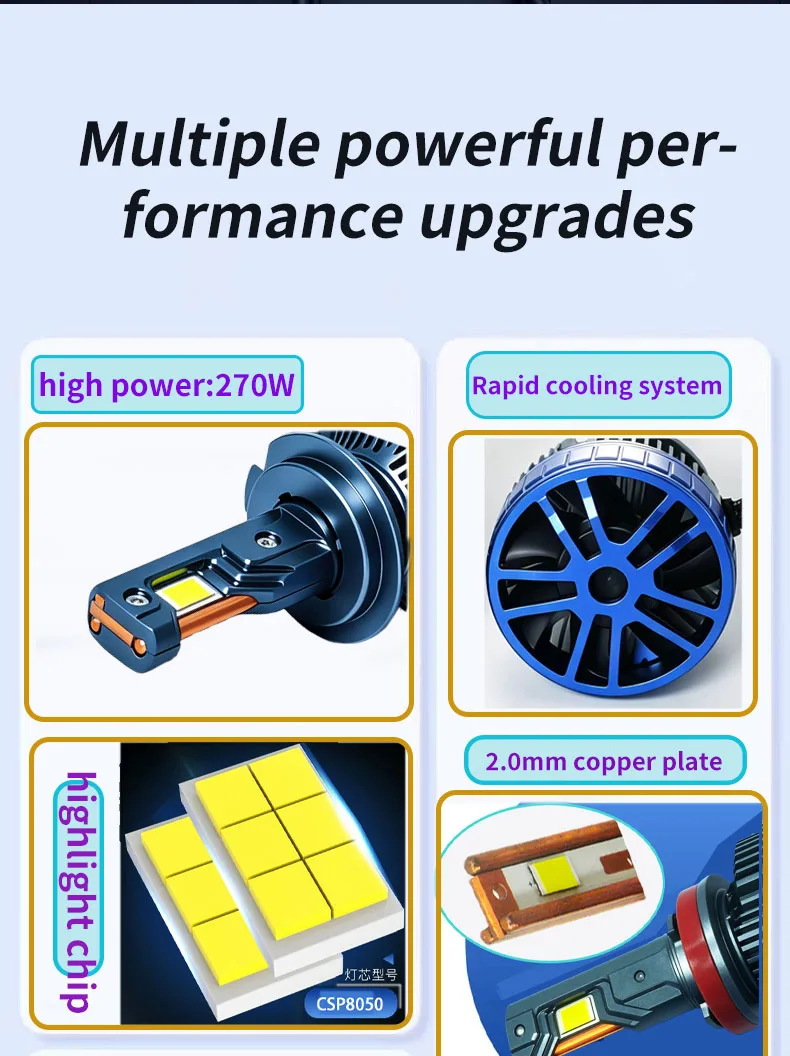

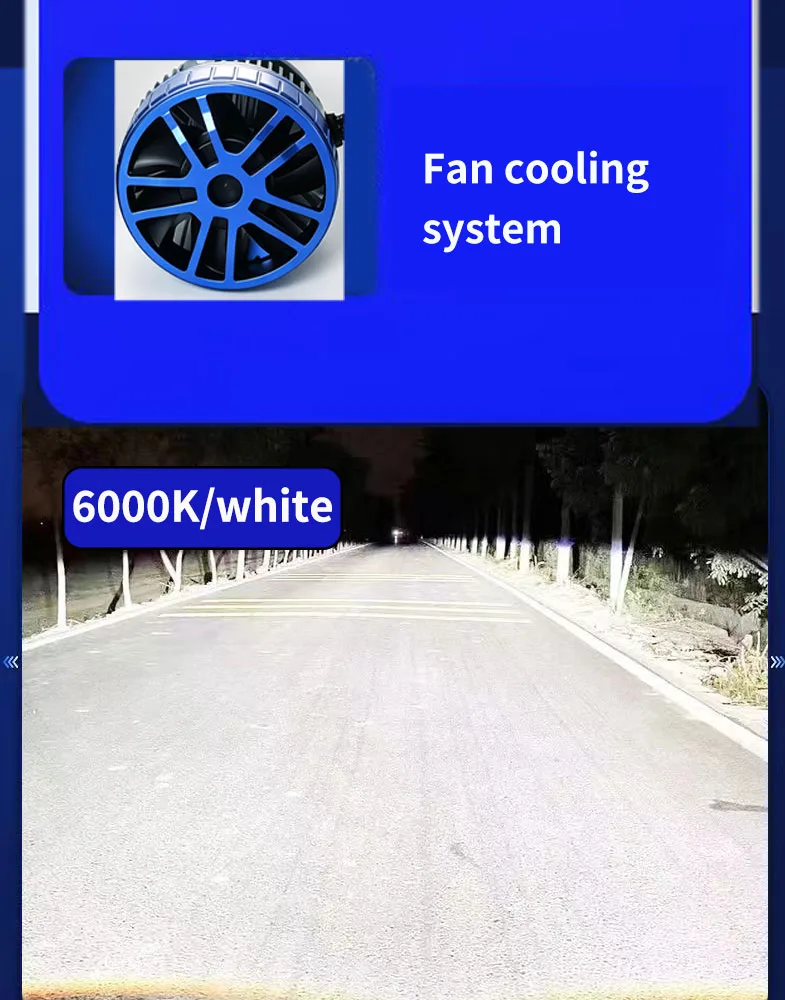

| Cooling | Triple copper heat pipe + dual copper substrate + fan |
| Waterproof | IP68 |
| Lifespan | 50,000 h |

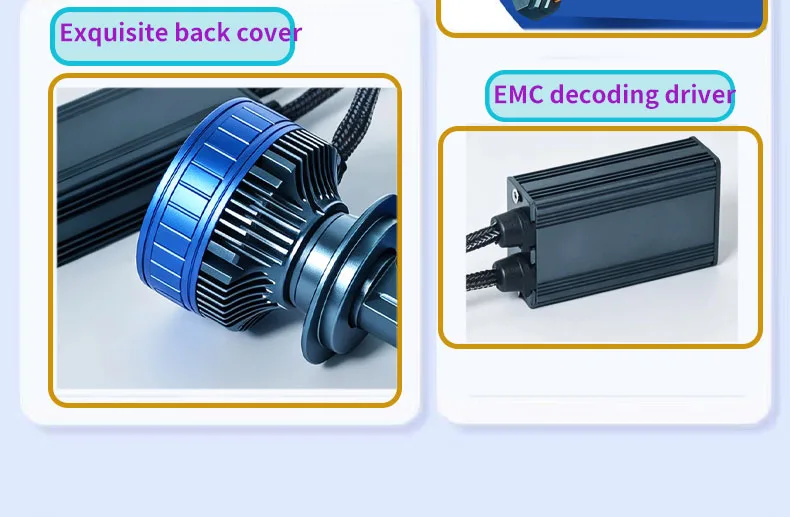

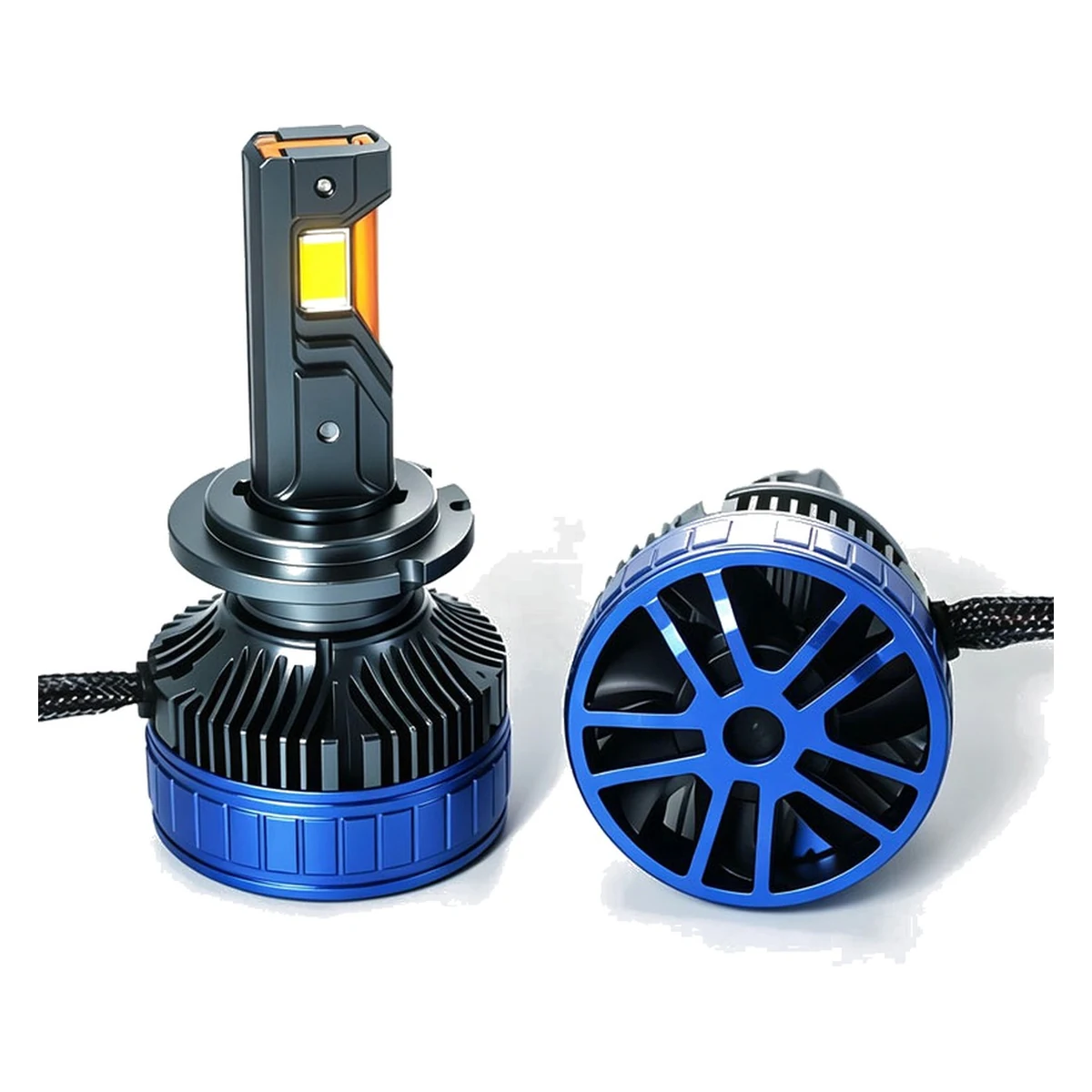

| Rear cap | Meteor blue |
| Patent | Design patent ZL202330622497.0 |
| Unit packing | 18 × 13.5 × 6 cm · 200 g (sold per single bulb) |
| Retail | 1 pc, shipped from stock |
| Wholesale | Mixed fittings per carton |
Every figure comes from our own product listing. Where a value is not published by the factory — measured lumens, for example — it is left out rather than estimated.
Take the numbers with you
Same figures as the table above — for your own approval file or to send on to a customer.
Product detail sheet · 29 panels · in the order the factory lays them out
FAQ
Ten watts and 4,000 lm on the rating, same body and heat stack. If your market sells on numbers, this is the SKU to lead with; if it sells on price, the 260 W is the better margin.
Per single bulb, the same rule our domestic store runs. A vehicle normally needs two, and H4 / D2H fittings price higher because the base costs more to make.
Yes. Eleven fittings run on one platform, so a mixed carton needs a single production run. Minimum is 2 pcs on stock specification.
Quote
Include your market and volume — compliance routing changes the answer.
