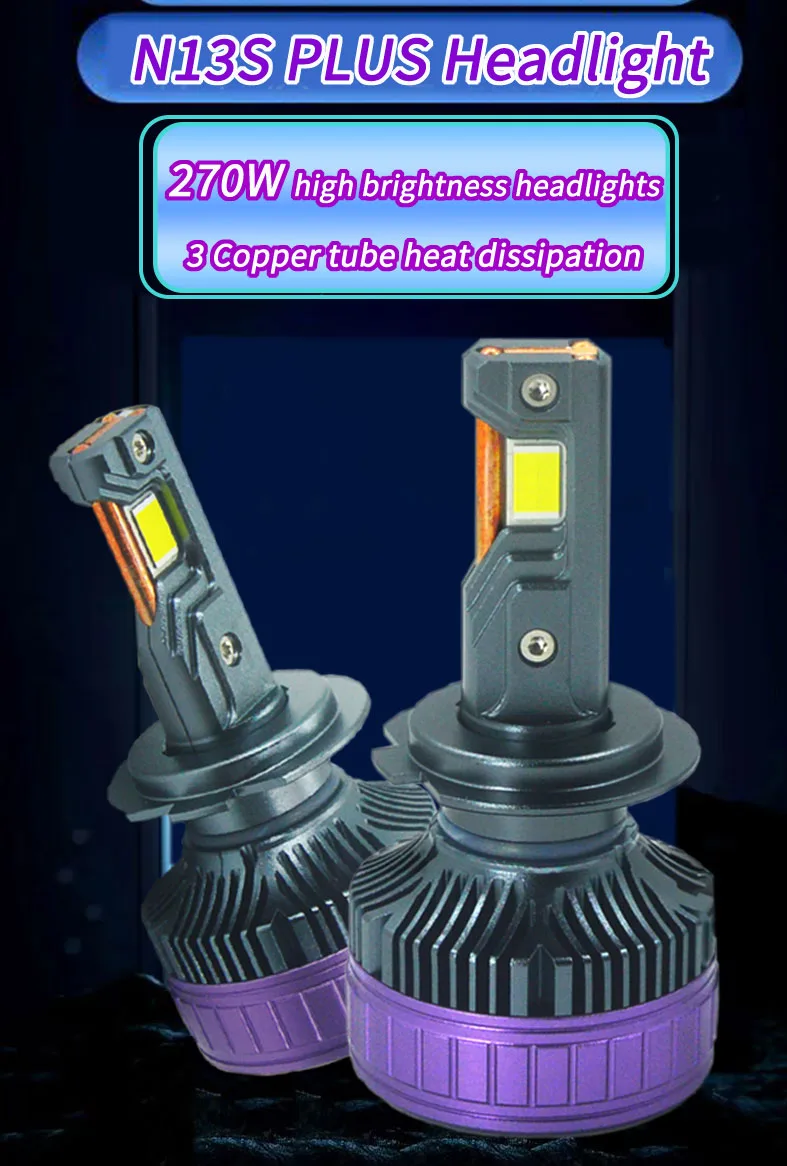

270 W · 56,000 lm · 6000 K only · triple pipe · sunset purple
Pick a model, a colour temperature and a lamp base — we confirm the exact build before invoicing.
18 × 13.5 × 6 cm · 200 g (sold per single bulb) · IP68 · 50,000 h
Both retail and wholesale are quoted by a person — one message with your market and quantity gets you the price sheet, the beam comparison and a shipping quote.
Reply in one business daySample before bulk25-day production
Details
Assembly, beam pattern and the numbers behind the build.
Driver potting, heatsink fit and the low/high beam wall test, filmed on our own bench. No clip on the shelf yet — ask and we send the current one.

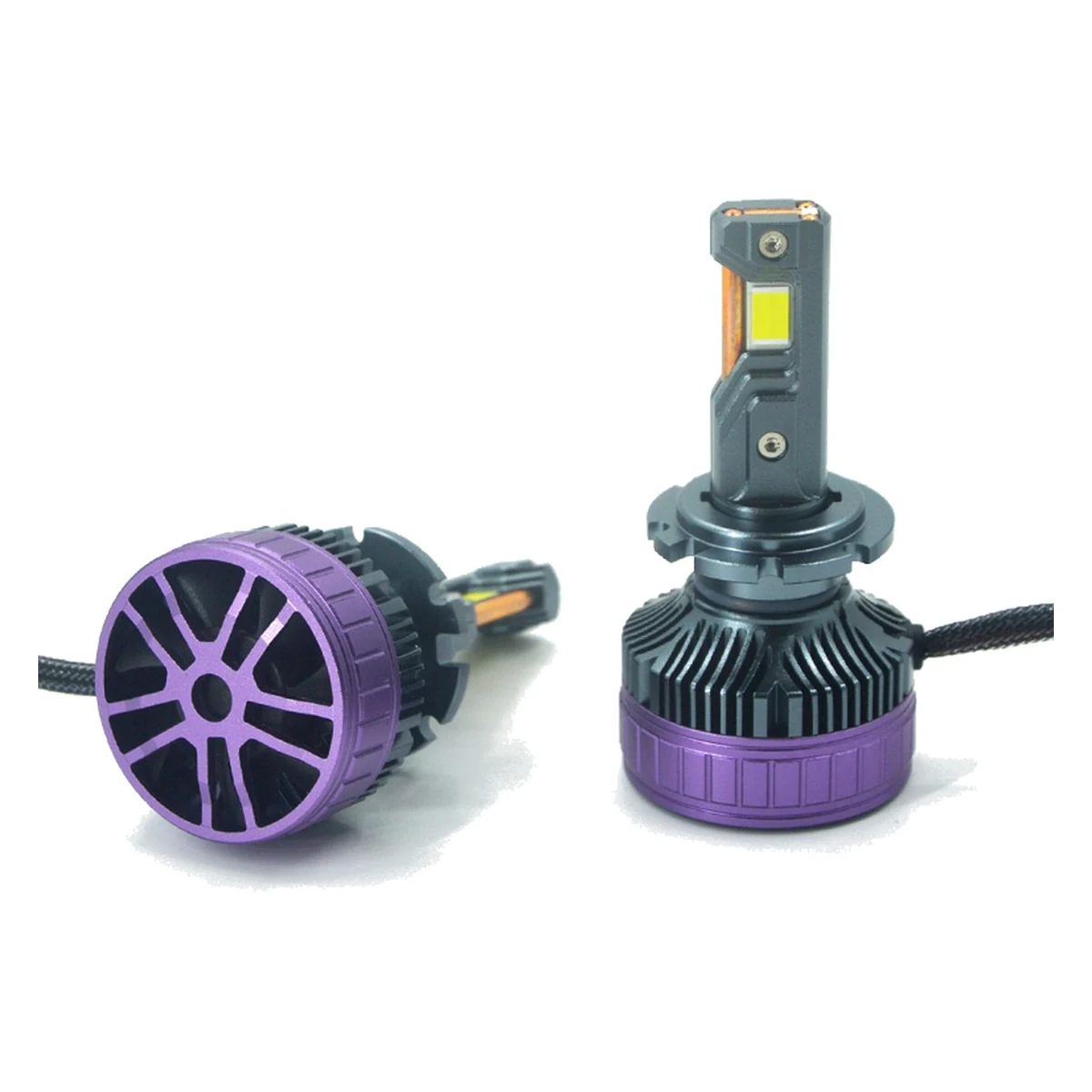

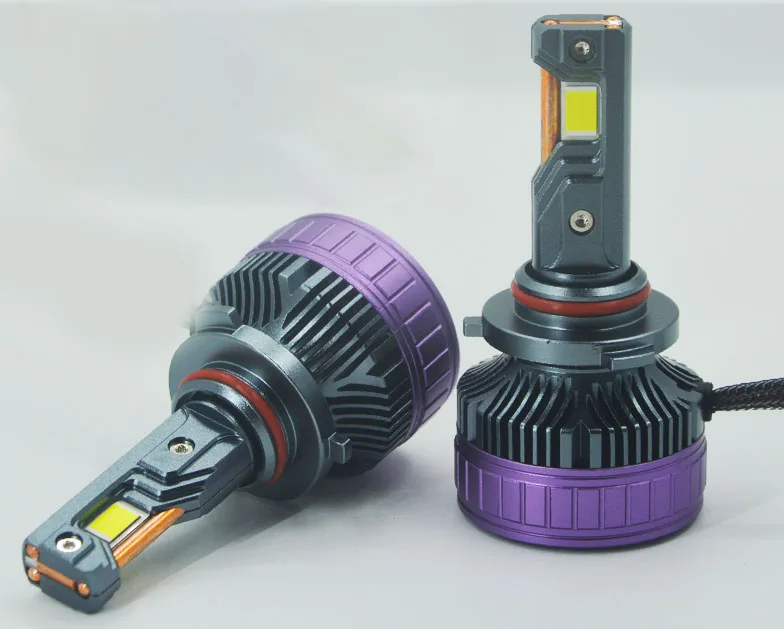

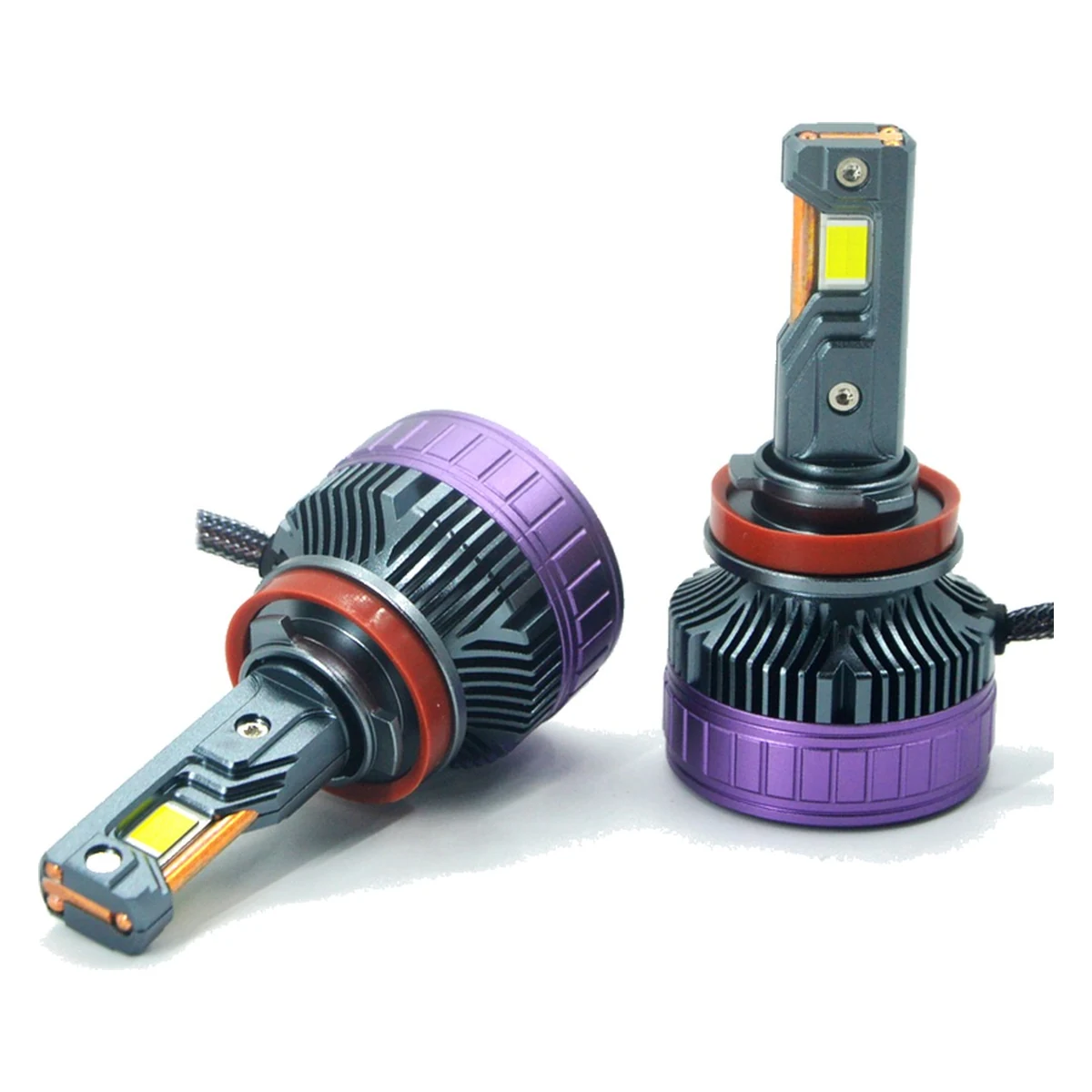

Request the videoThe same 270 W N13S PLUS hardware in a single 6000 K build with a sunset-purple rear cap. One temperature keeps the order sheet short for markets that only list white, and the heat stack is unchanged — three copper heat pipes, dual copper substrates, fan. Useful where a distributor wants the 56,000 lm figure without stocking two colour versions of the same bulb.

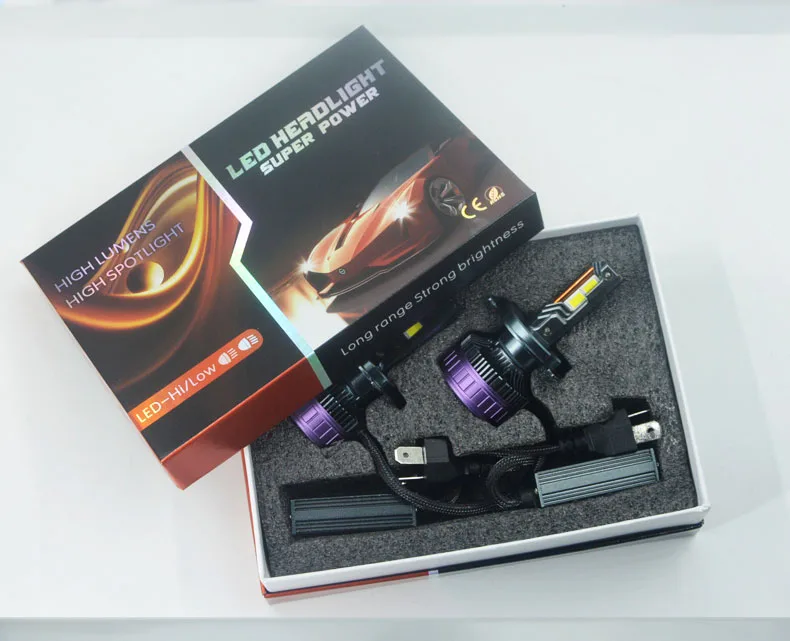

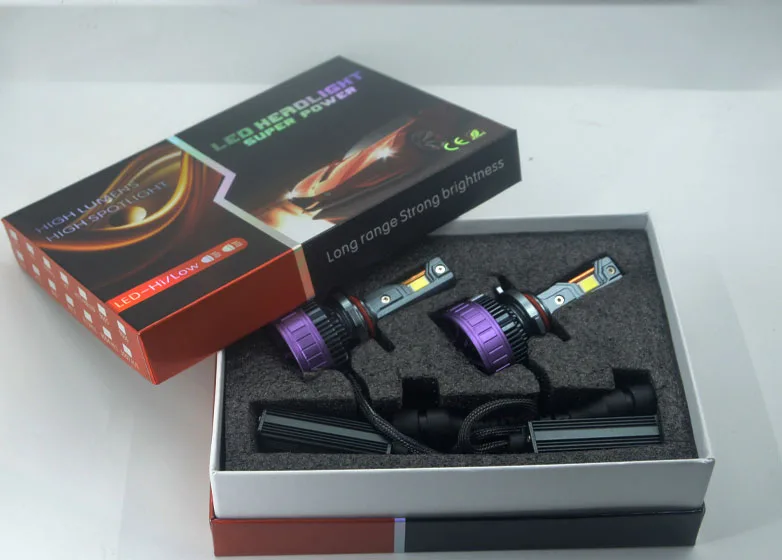

Colour temperature, fitting mix inside a master carton, box artwork and label text, master-carton markings. Body design is fixed by the patent — a different shell is a separate tooling project, quoted on its own.

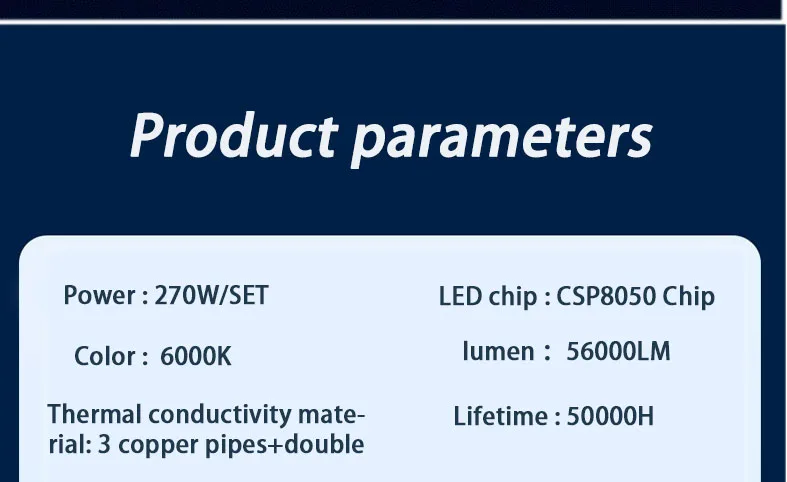

| SKU | N13S PLUS 6000K |

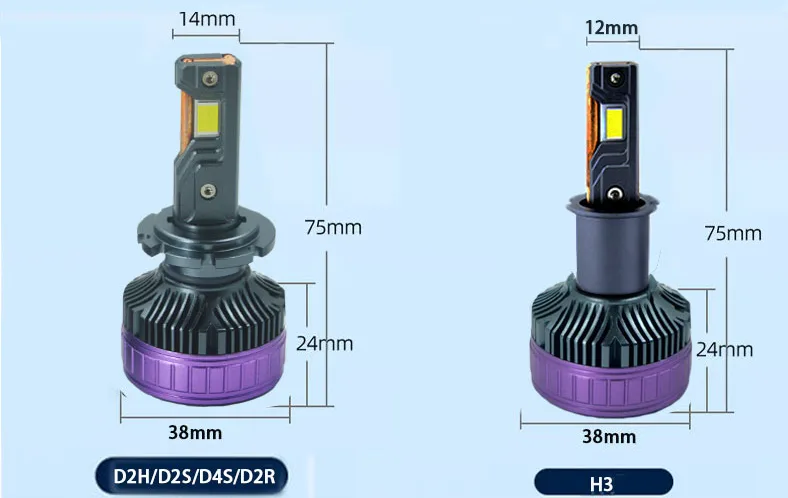

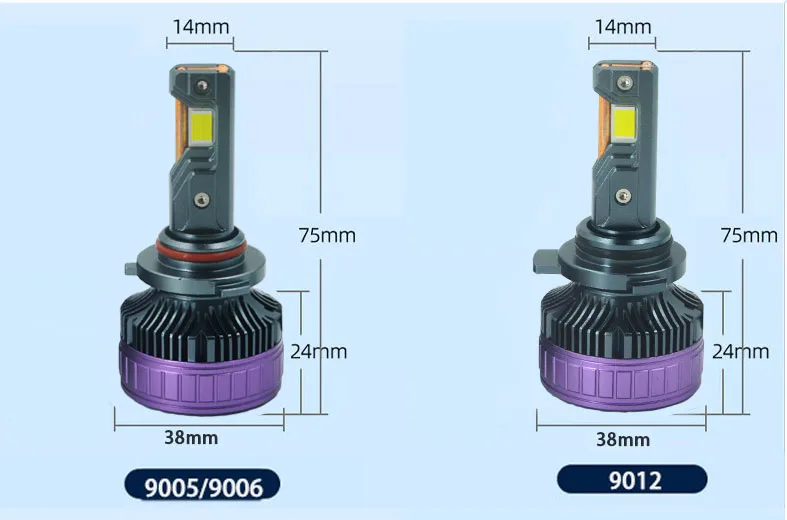

| Fittings | H1 · H3 · H4 · H7 · H8 · H9 · H11 · 9005 · 9006 · 9012 · D2H |
| Power | 270 W / set |
| Voltage | DC 8–32 V |
| Luminous flux | 56,000 lm / set (manufacturer rating) |
| Colour temperature | 6000 K |
| Colour switching | Single temperature |

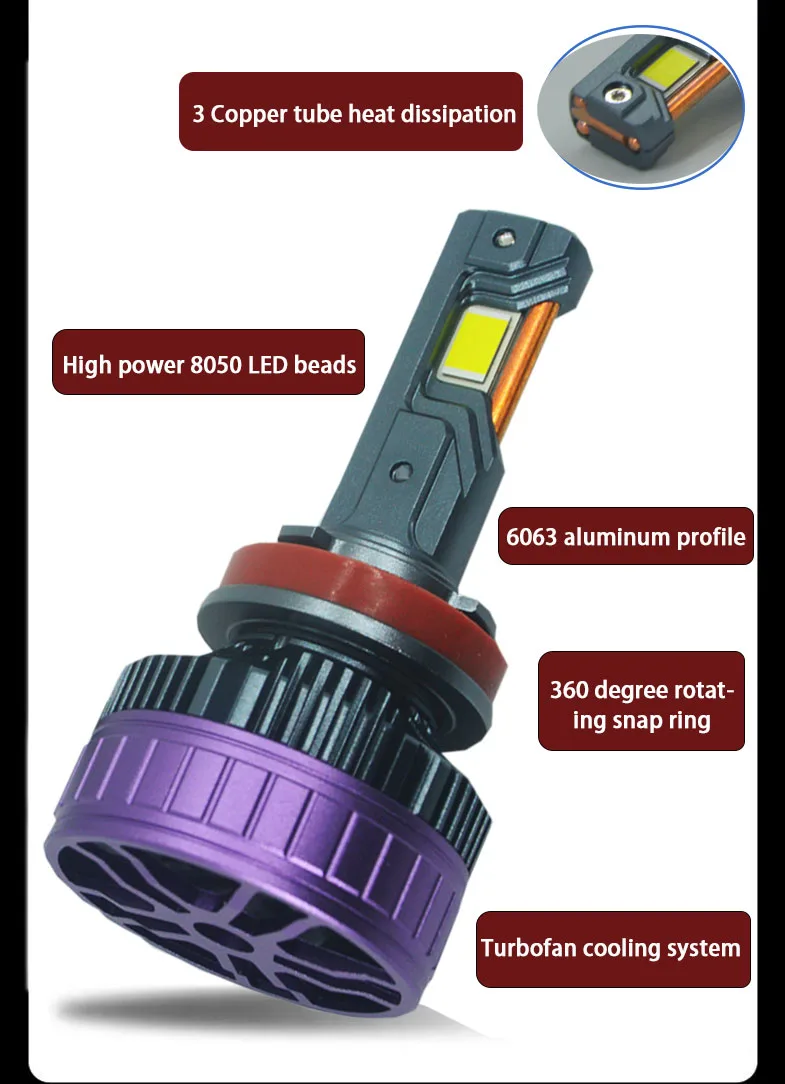

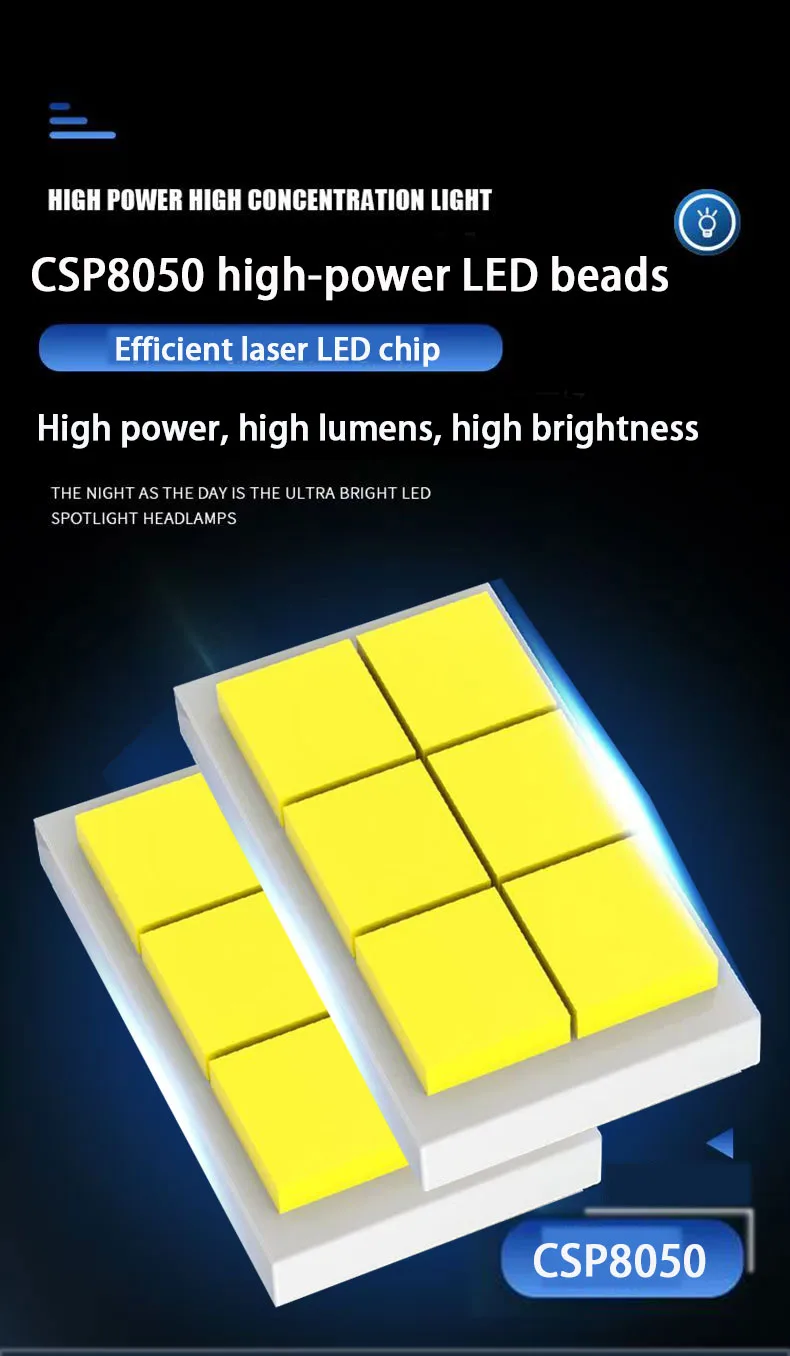

| LED chips | CSP8050 |

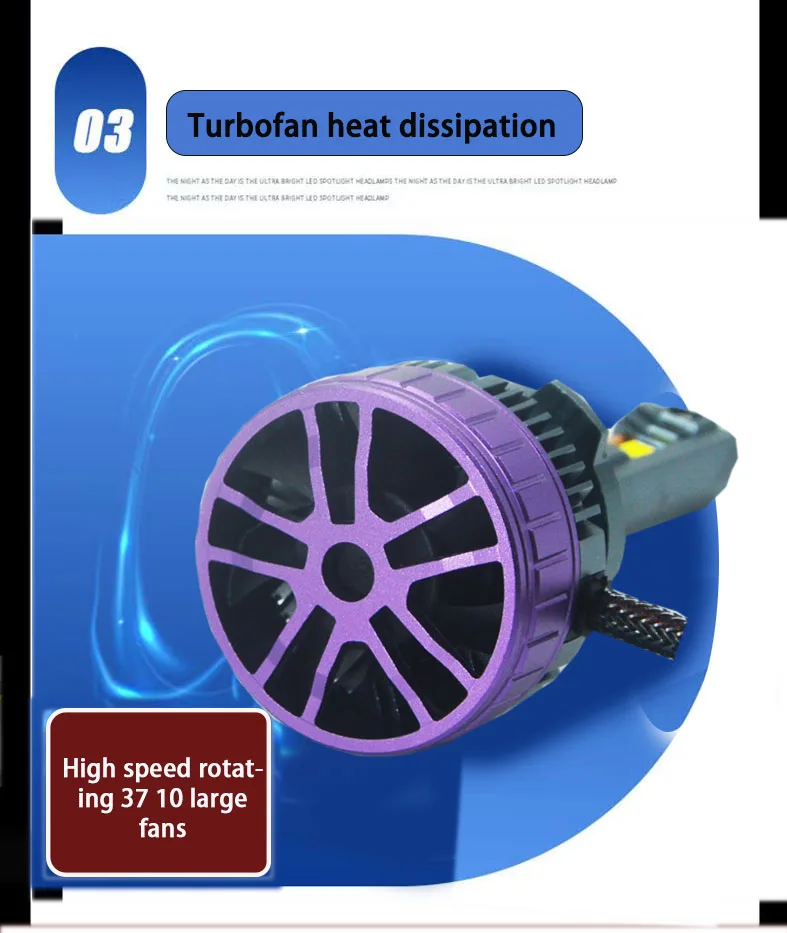

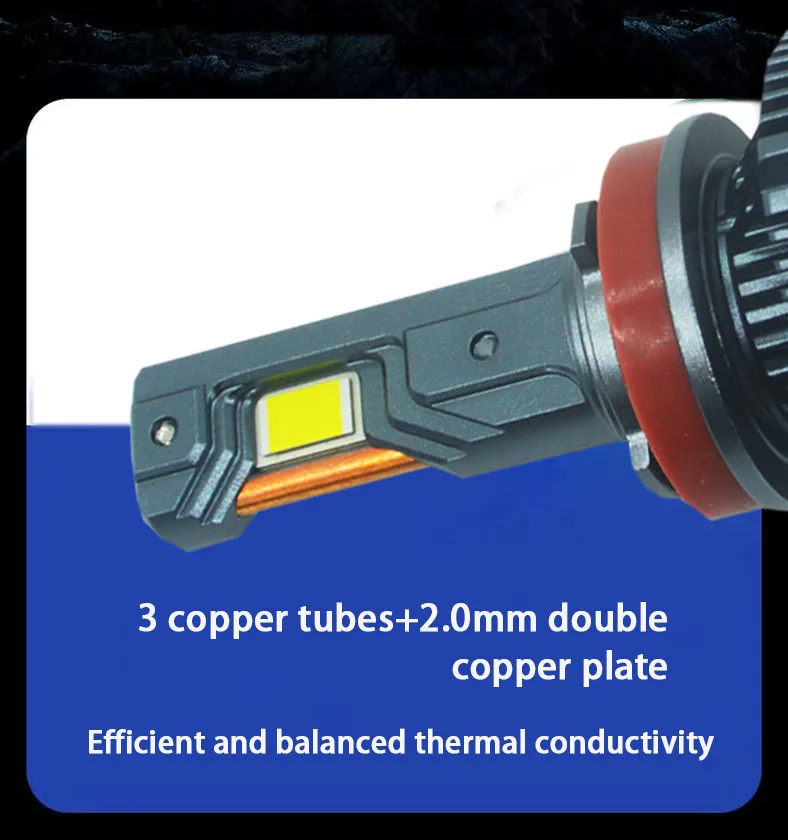

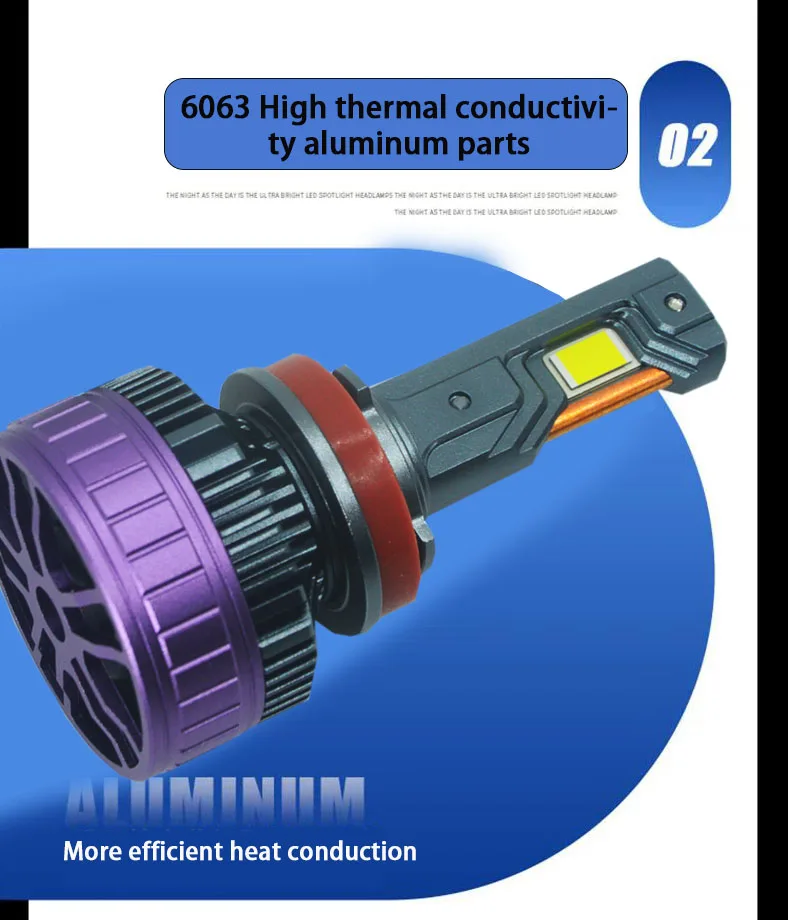

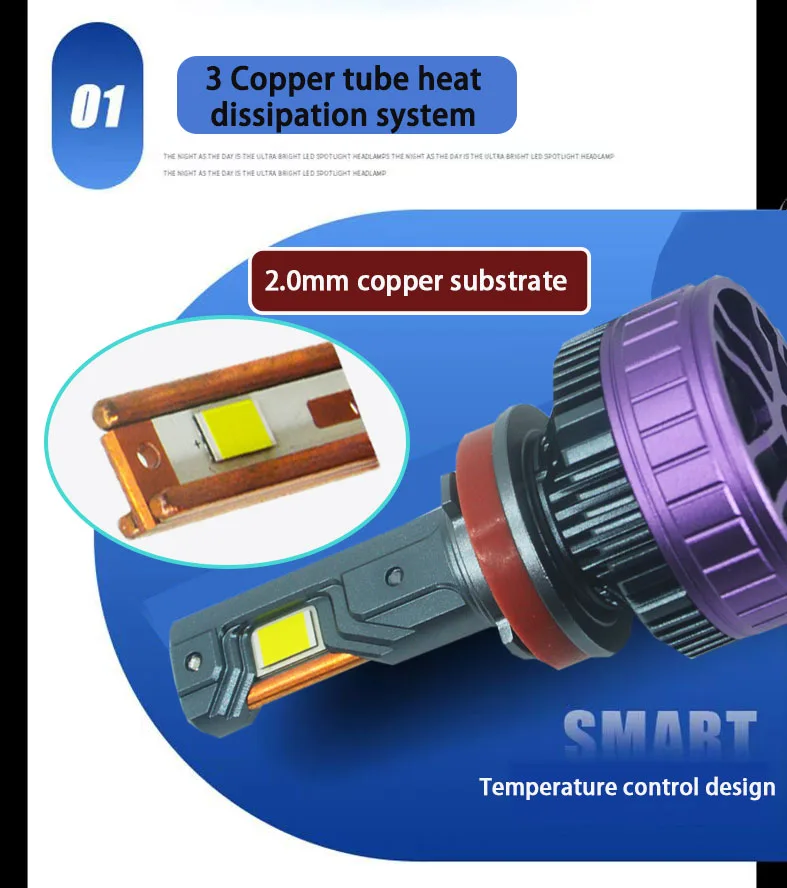

| Cooling | Triple copper heat pipe + dual copper substrate + fan |
| Waterproof | IP68 |
| Lifespan | 50,000 h |
| Rear cap | Sunset purple |
| Patent | Design patent ZL202330622497.0 |

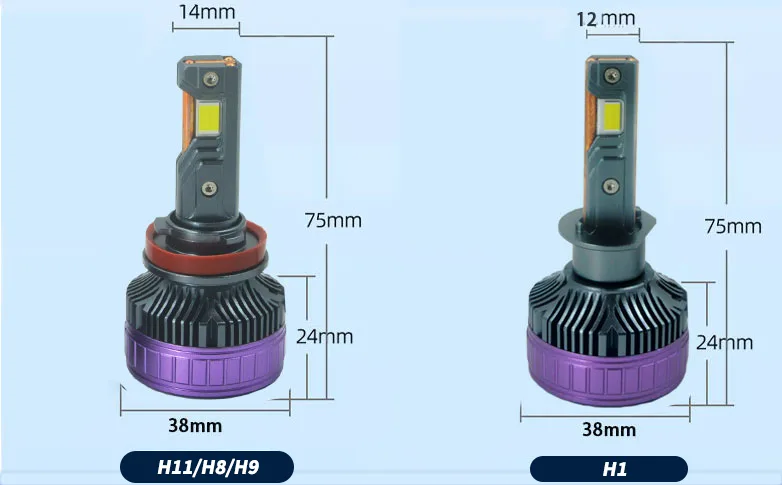

| Unit packing | 18 × 13.5 × 6 cm · 200 g (sold per single bulb) |
| Retail | 1 pc, shipped from stock |
| Wholesale | Mixed fittings per carton |
Every figure comes from our own product listing. Where a value is not published by the factory — measured lumens, for example — it is left out rather than estimated.
Take the numbers with you
Same figures as the table above — for your own approval file or to send on to a customer.
Product detail sheet · 32 panels · in the order the factory lays them out
FAQ
It is the single-temperature build of the same 270 W hardware. Markets that list only white avoid holding two SKUs, and the price per unit is easier to compare across suppliers when the colour option is taken out.
Per single bulb, the same rule our domestic store runs. A vehicle normally needs two, and H4 / D2H fittings price higher because the base costs more to make.
Yes. Eleven fittings run on one platform, so a mixed carton needs a single production run. Minimum is 2 pcs on stock specification.
Quote
Include your market and volume — compliance routing changes the answer.
