200 W · 46,000 lm · 6000/4300/3500/3000 K · dual pipe
Pick a model, a colour temperature and a lamp base — we confirm the exact build before invoicing.
18 × 13.5 × 6 cm · 200 g (sold per single bulb) · IP68 · 50,000 h
Both retail and wholesale are quoted by a person — one message with your market and quantity gets you the price sheet, the beam comparison and a shipping quote.
Reply in one business daySample before bulk25-day production
Details
Assembly, beam pattern and the numbers behind the build.

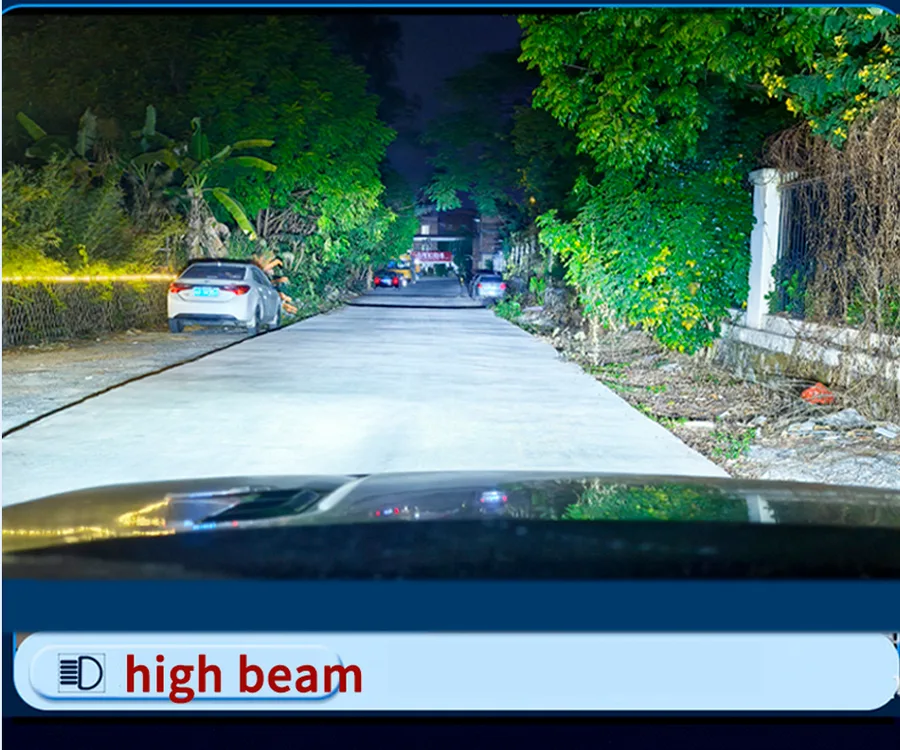

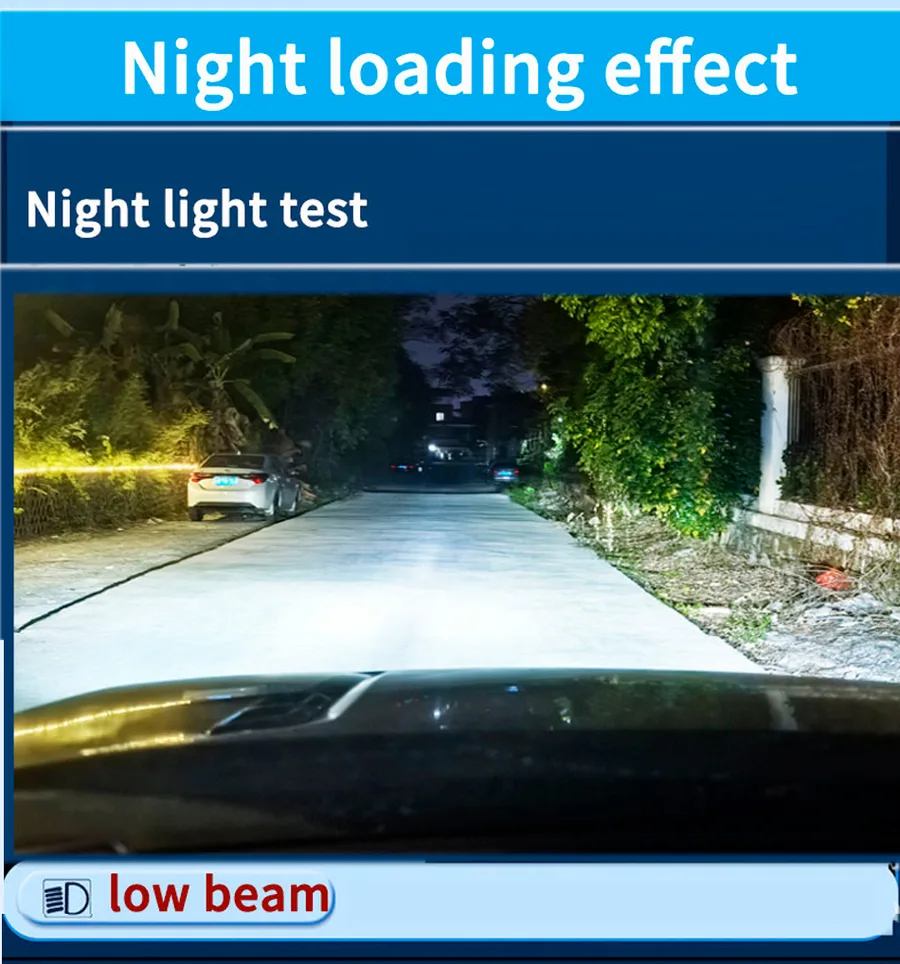

Driver potting, heatsink fit and the low/high beam wall test, filmed on our own bench. No clip on the shelf yet — ask and we send the current one.

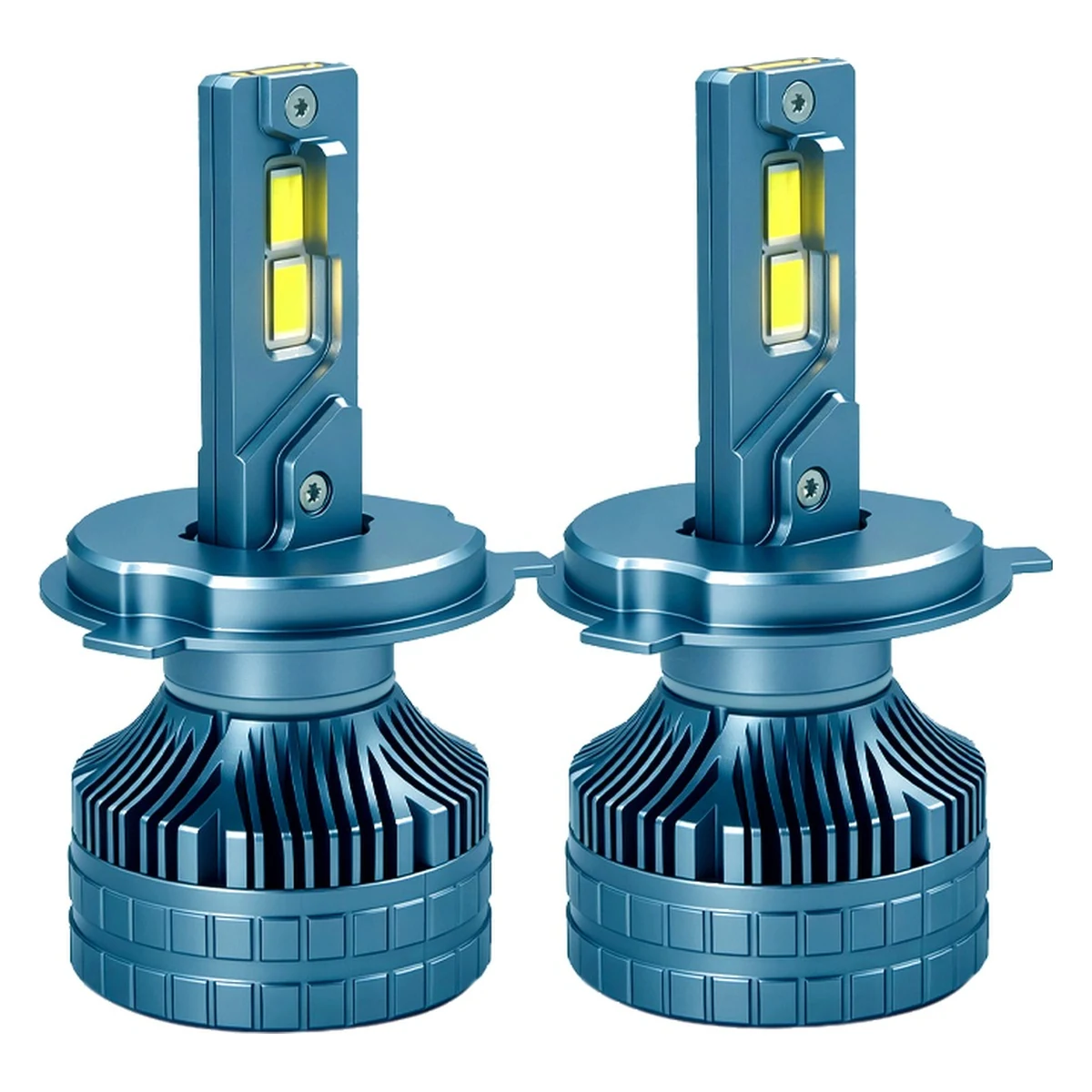

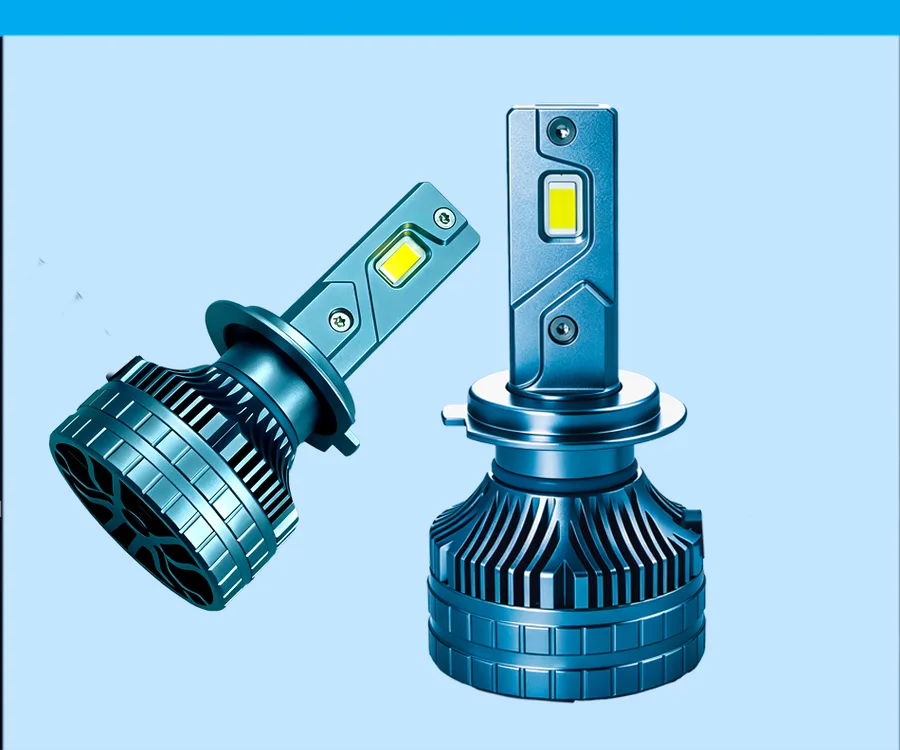

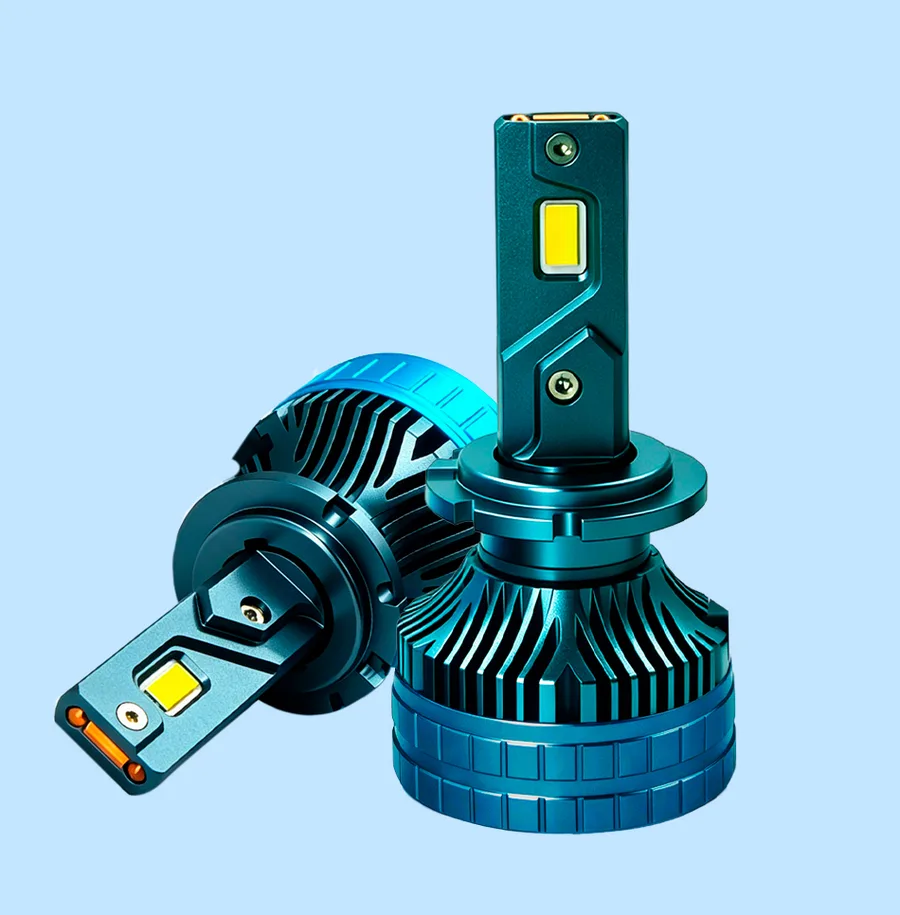

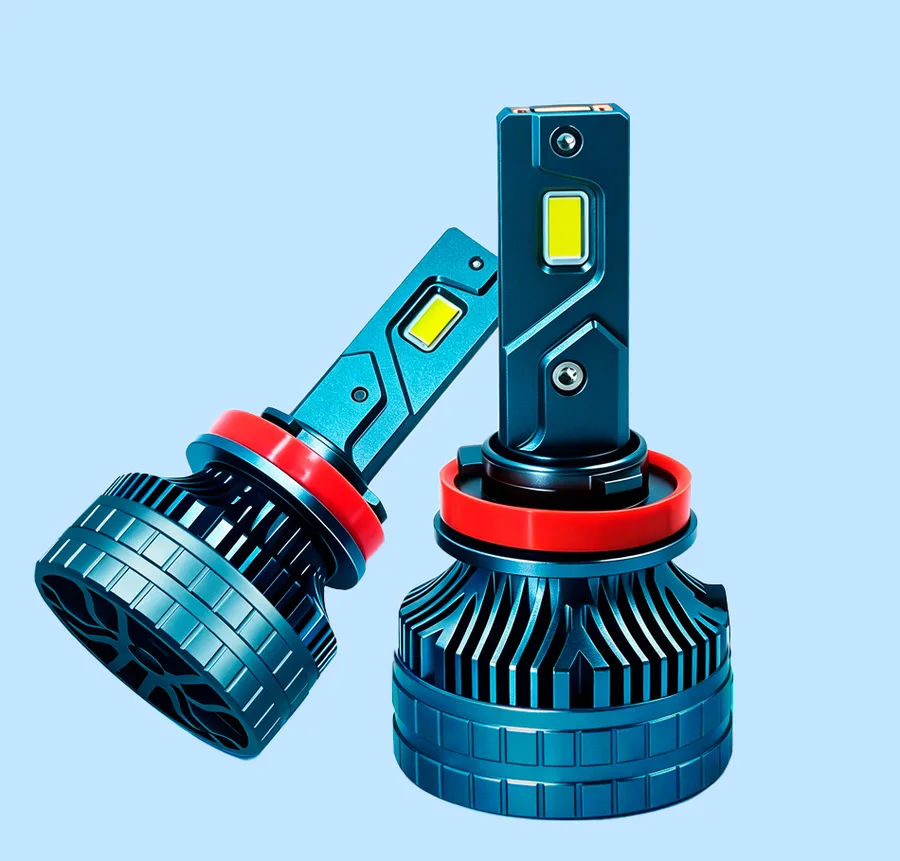

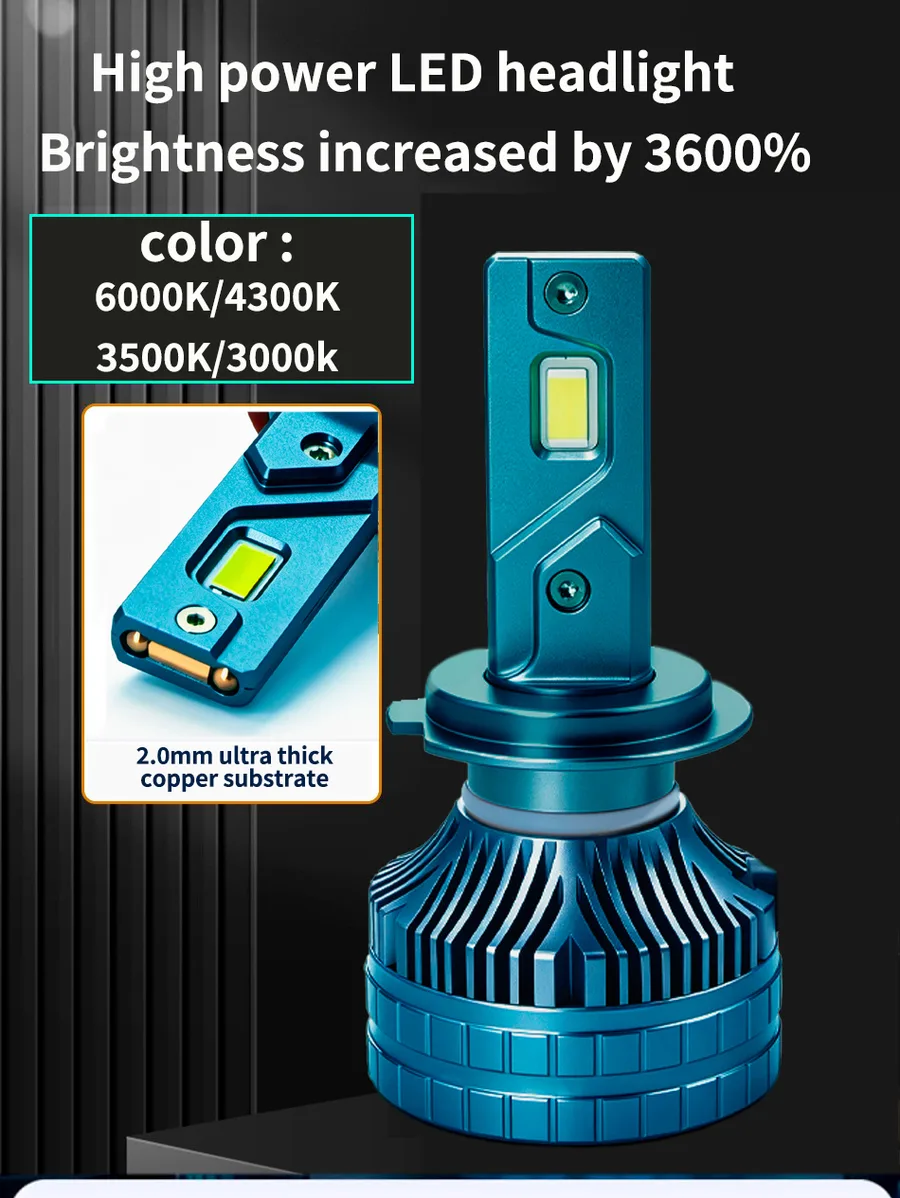

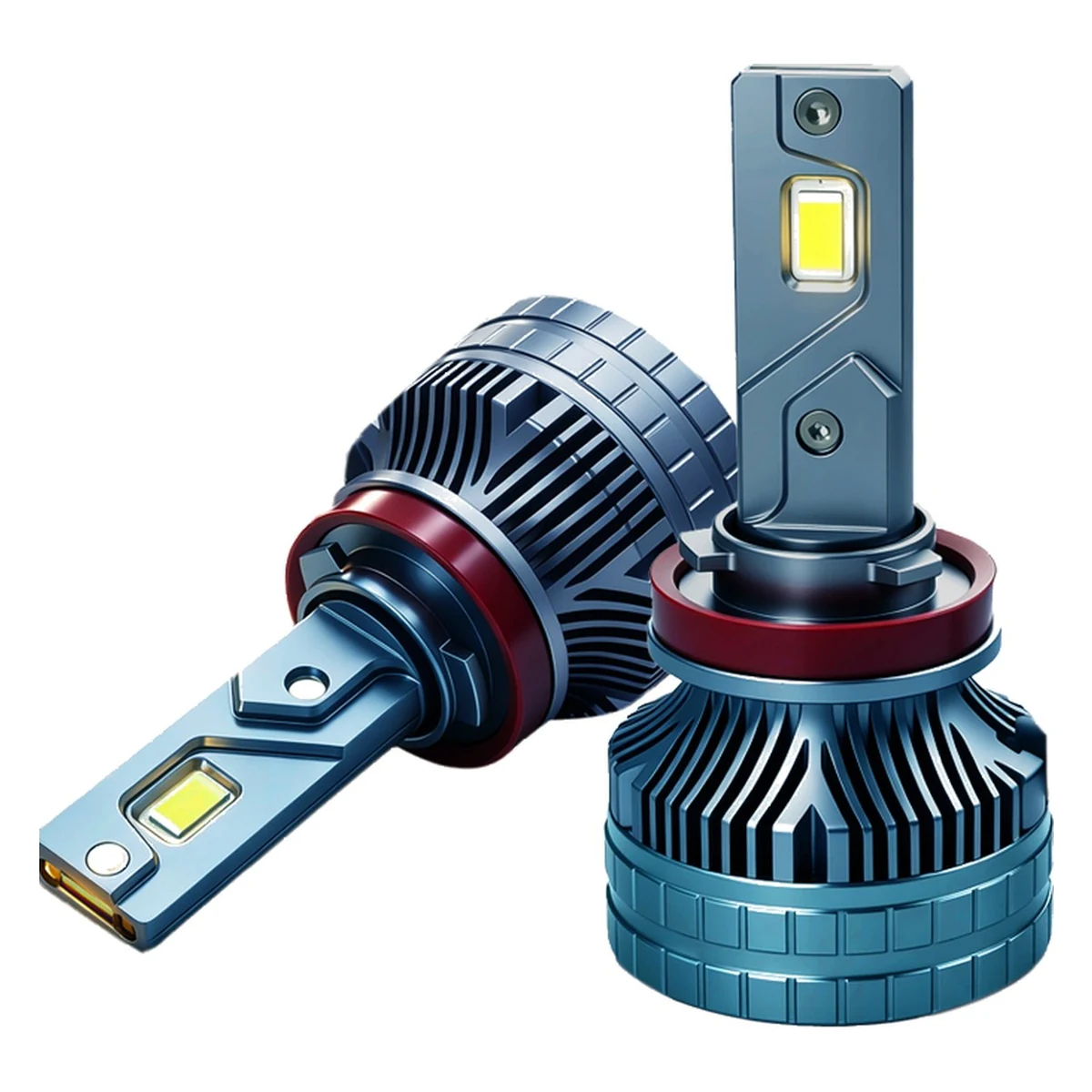

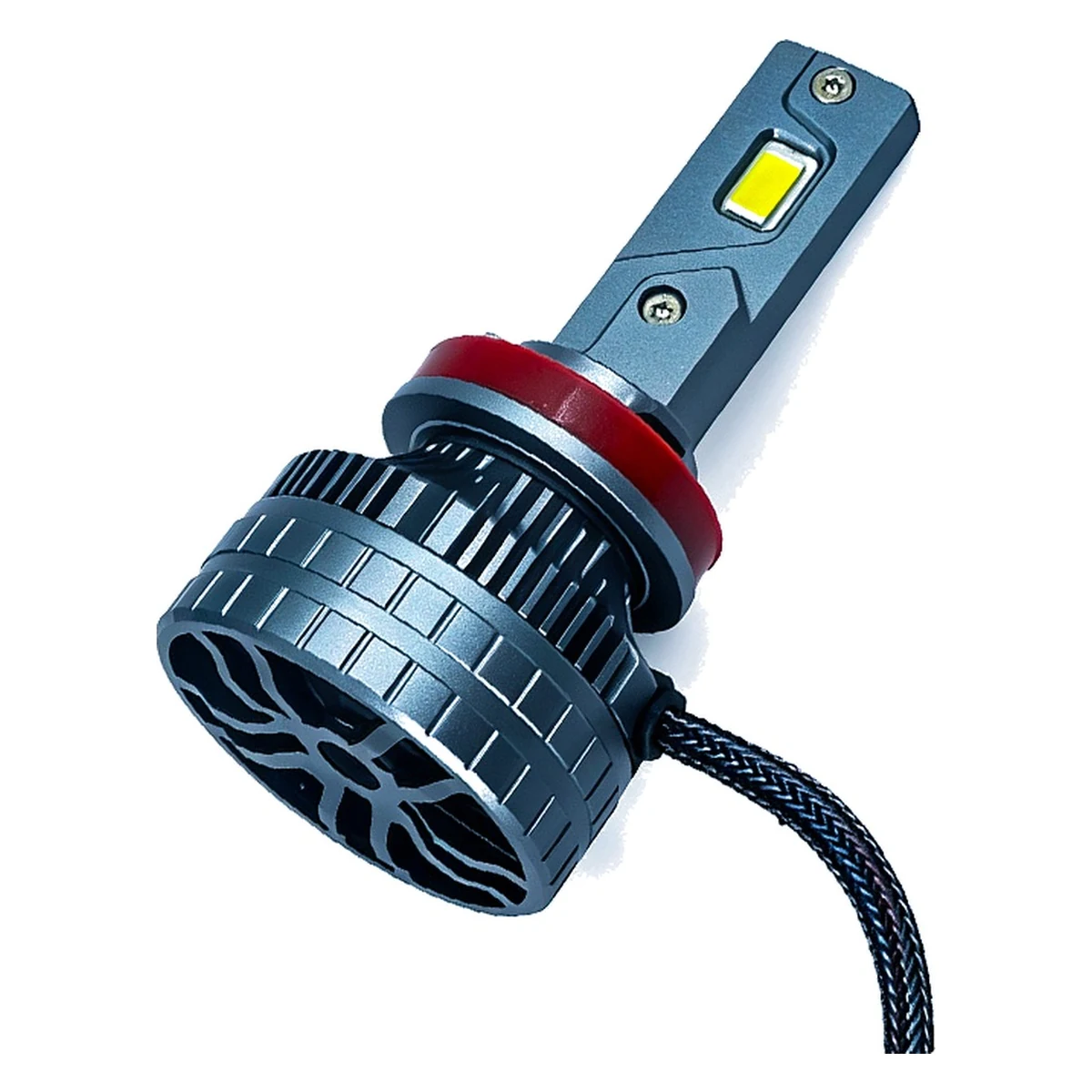

Request the videoThe entry model, and the only one that covers four colour temperatures — 6000 K white, 4300 K warm white, 3500 K yellow and 3000 K golden. They are four separate builds ordered as separate SKUs, not a switchable bulb; if you need to change colour inside the vehicle, take N12 TC. Two copper heat pipes and a dual copper substrate carry the 200 W, and the decoder sits inside the driver rather than arriving as a separate harness.
Colour temperature, fitting mix inside a master carton, box artwork and label text, master-carton markings. Body design is fixed by the patent — a different shell is a separate tooling project, quoted on its own.

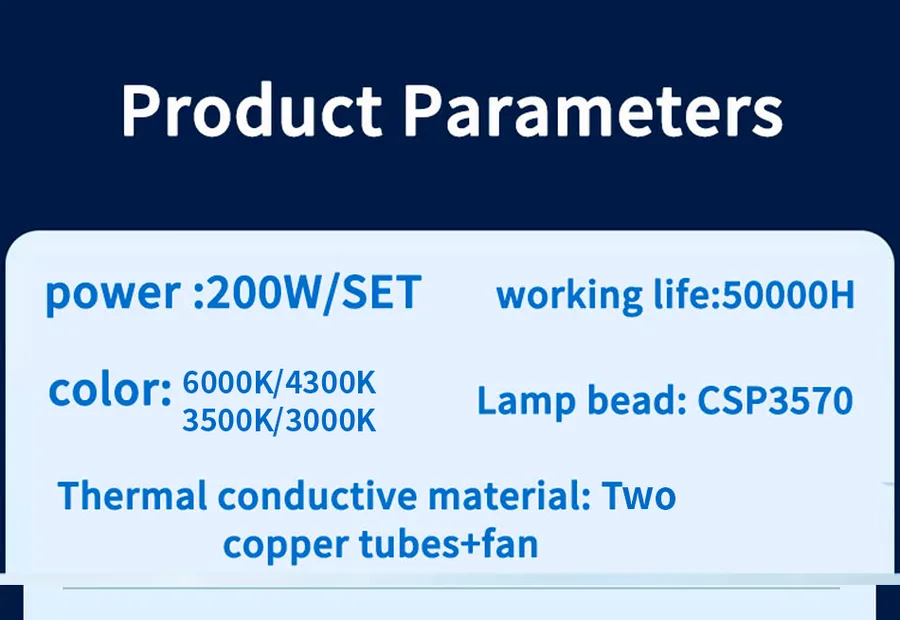

| SKU | N12 |

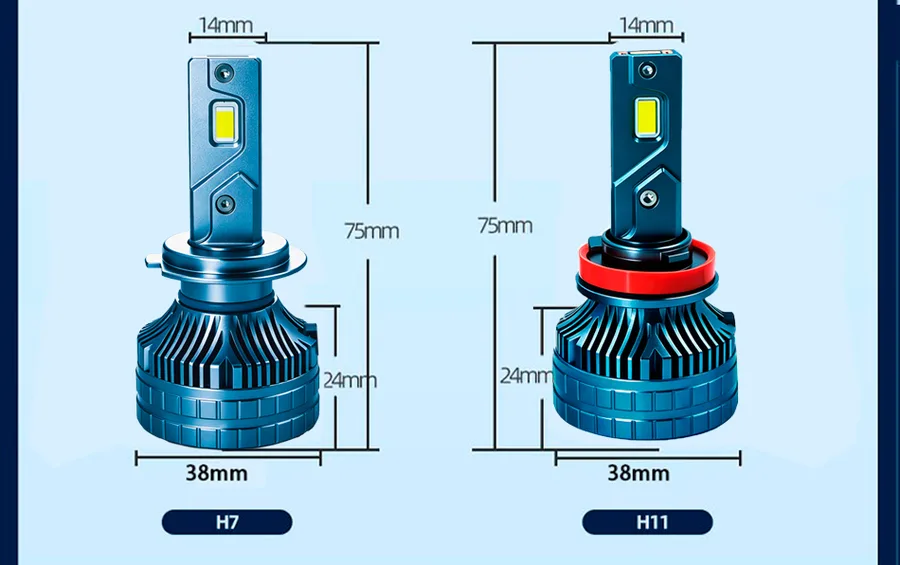

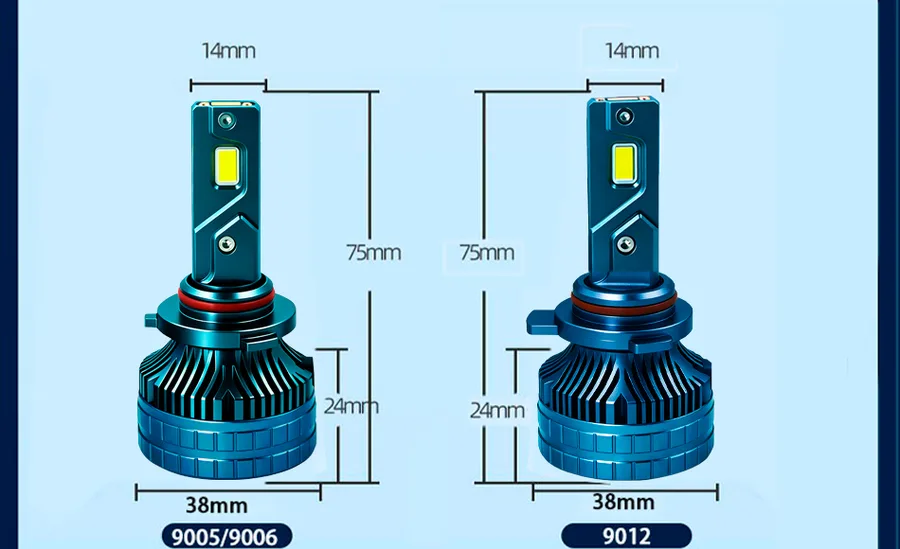

| Fittings | H1 · H3 · H4 · H7 · H8 · H9 · H11 · 9005 · 9006 · 9012 · D2H |
| Power | 200 W / set |
| Voltage | DC 8–32 V |
| Luminous flux | 46,000 lm / set (manufacturer rating) |
| Colour temperature | 6000 K · 4300 K · 3500 K · 3000 K |
| Colour switching | Fixed at order (one temperature per bulb) |

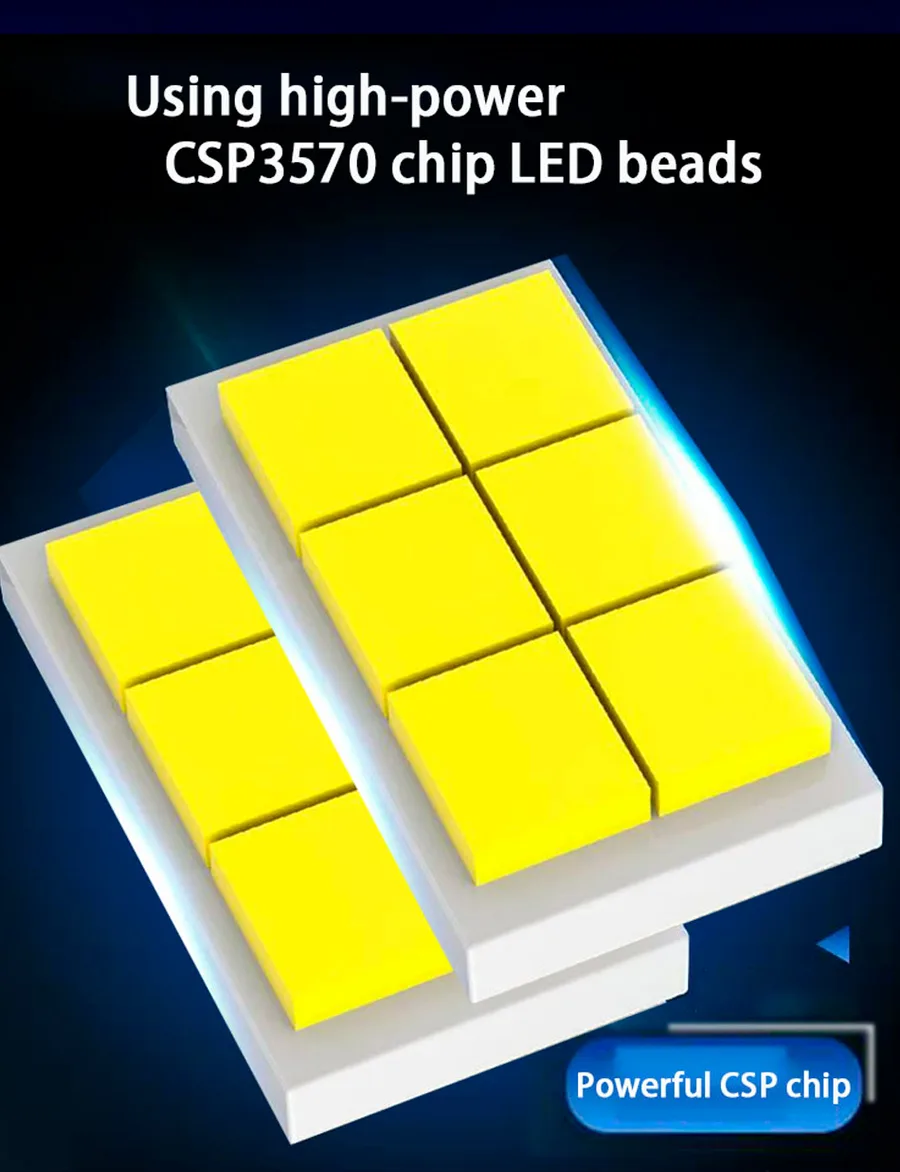

| LED chips | CSP3570 |

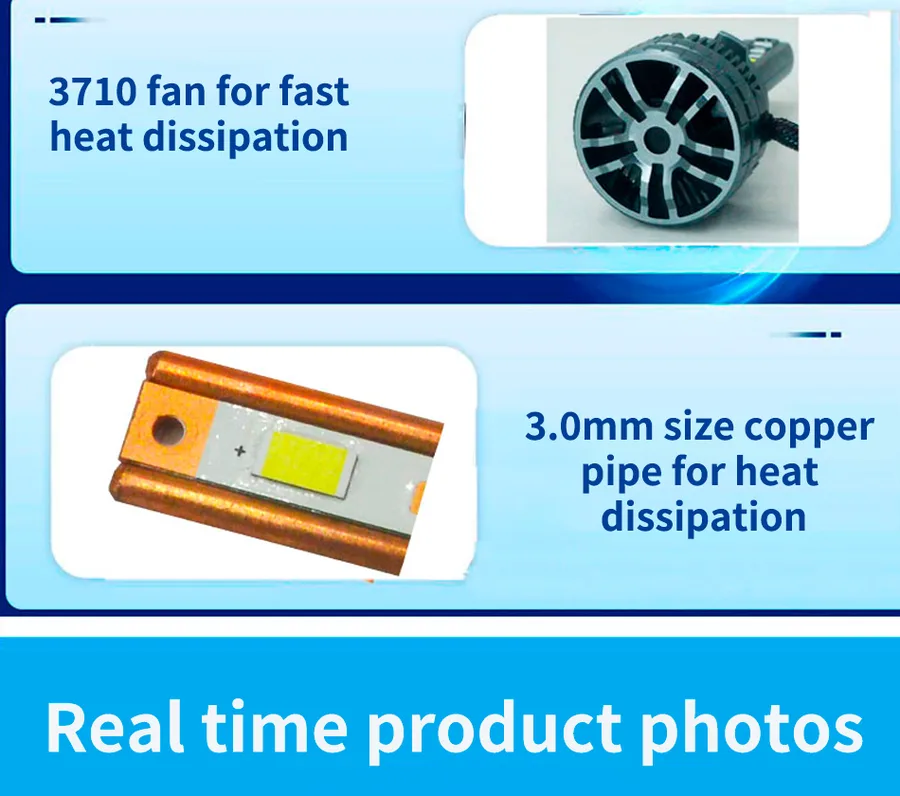

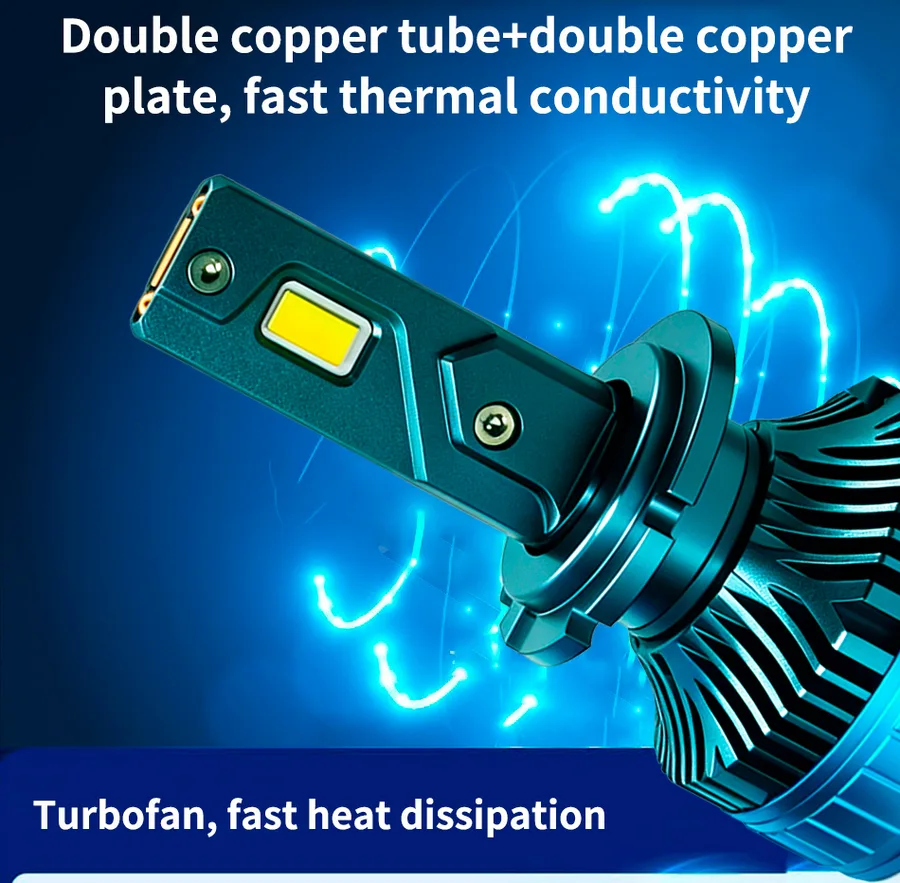

| Cooling | Dual copper heat pipe + dual copper substrate + fan |
| Waterproof | IP68 |
| Lifespan | 50,000 h |
| Rear cap | Black |
| Patent | Design patent ZL202330622497.0 |

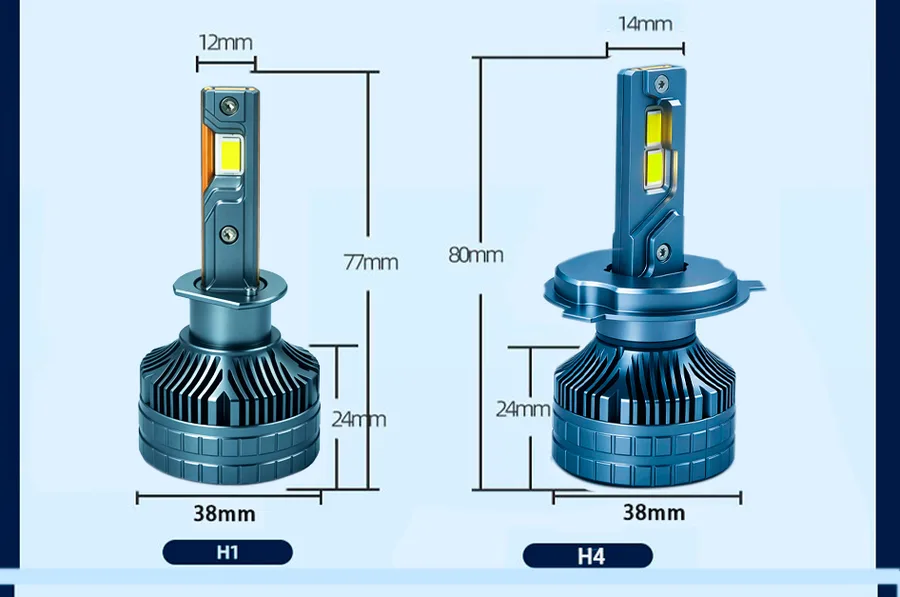

| Unit packing | 18 × 13.5 × 6 cm · 200 g (sold per single bulb) |
| Retail | 1 pc, shipped from stock |
| Wholesale | Mixed fittings per carton |
Every figure comes from our own product listing. Where a value is not published by the factory — measured lumens, for example — it is left out rather than estimated.
Take the numbers with you
Same figures as the table above — for your own approval file or to send on to a customer.
Product detail sheet · 24 panels · in the order the factory lays them out
FAQ
No. 6000 K, 4300 K, 3500 K and 3000 K are four separate builds, ordered as four SKUs. If the driver has to change colour from inside the car, order N12 TC instead — that one switches between three temperatures from the cabin switch.
Per single bulb, the same rule our domestic store runs. A vehicle normally needs two, and H4 / D2H fittings price higher because the base costs more to make.
Yes. Eleven fittings run on one platform, so a mixed carton needs a single production run. Minimum is 2 pcs on stock specification.
Quote
Include your market and volume — compliance routing changes the answer.
