200 W · 48,000 lm · remote handset · 6000/4300/3000 K + strobe
Pick a model, a colour temperature and a lamp base — we confirm the exact build before invoicing.
18 × 13.5 × 6 cm · 200 g (sold per single bulb) · IP68 · 50,000 h
Both retail and wholesale are quoted by a person — one message with your market and quantity gets you the price sheet, the beam comparison and a shipping quote.
Reply in one business daySample before bulk25-day production
Details
Assembly, beam pattern and the numbers behind the build.

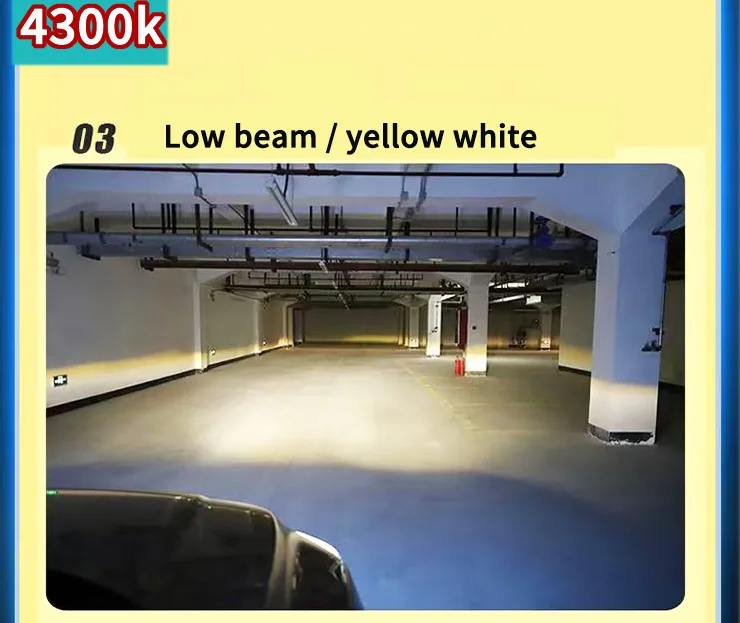

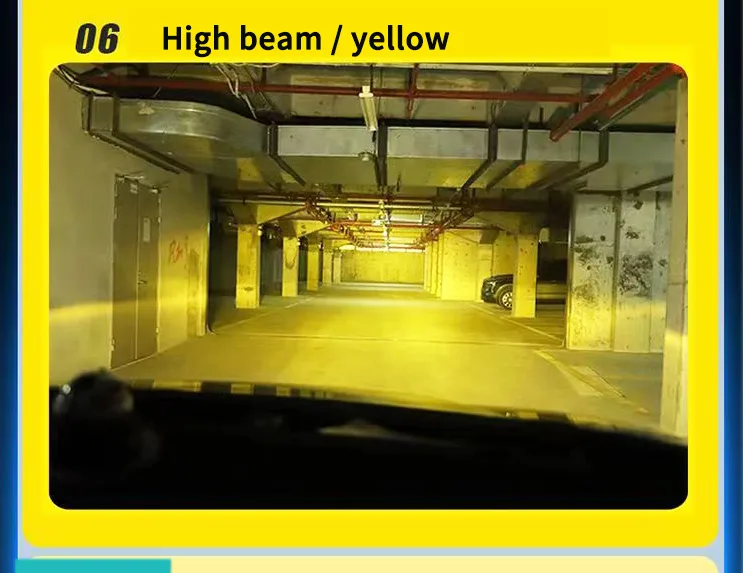

Driver potting, heatsink fit and the low/high beam wall test, filmed on our own bench. No clip on the shelf yet — ask and we send the current one.

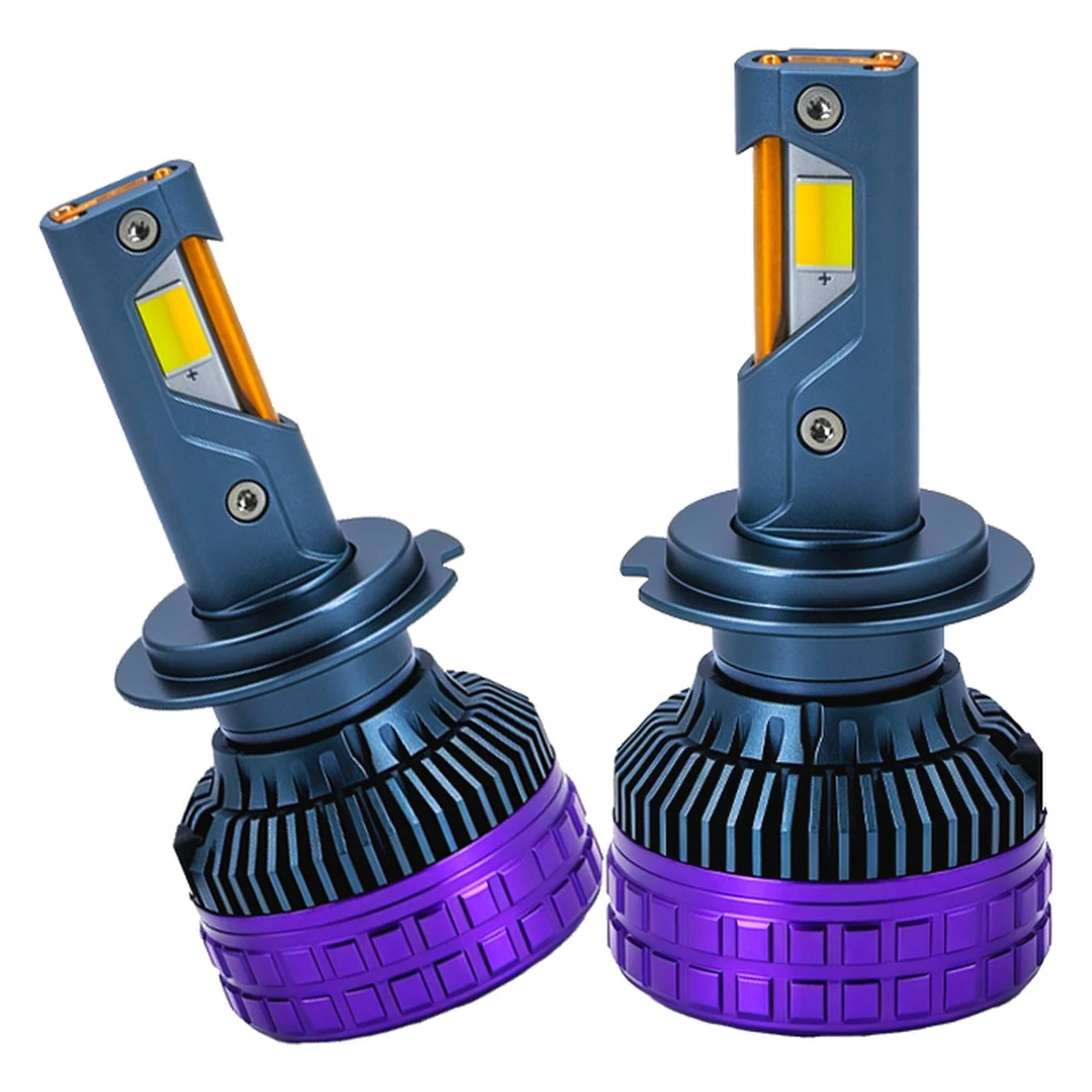

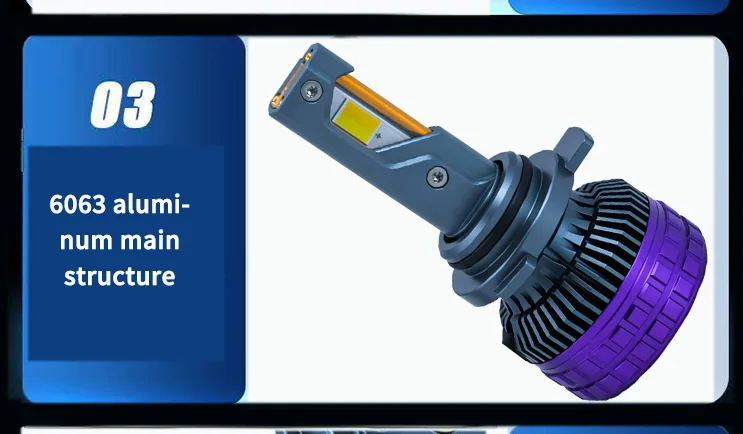

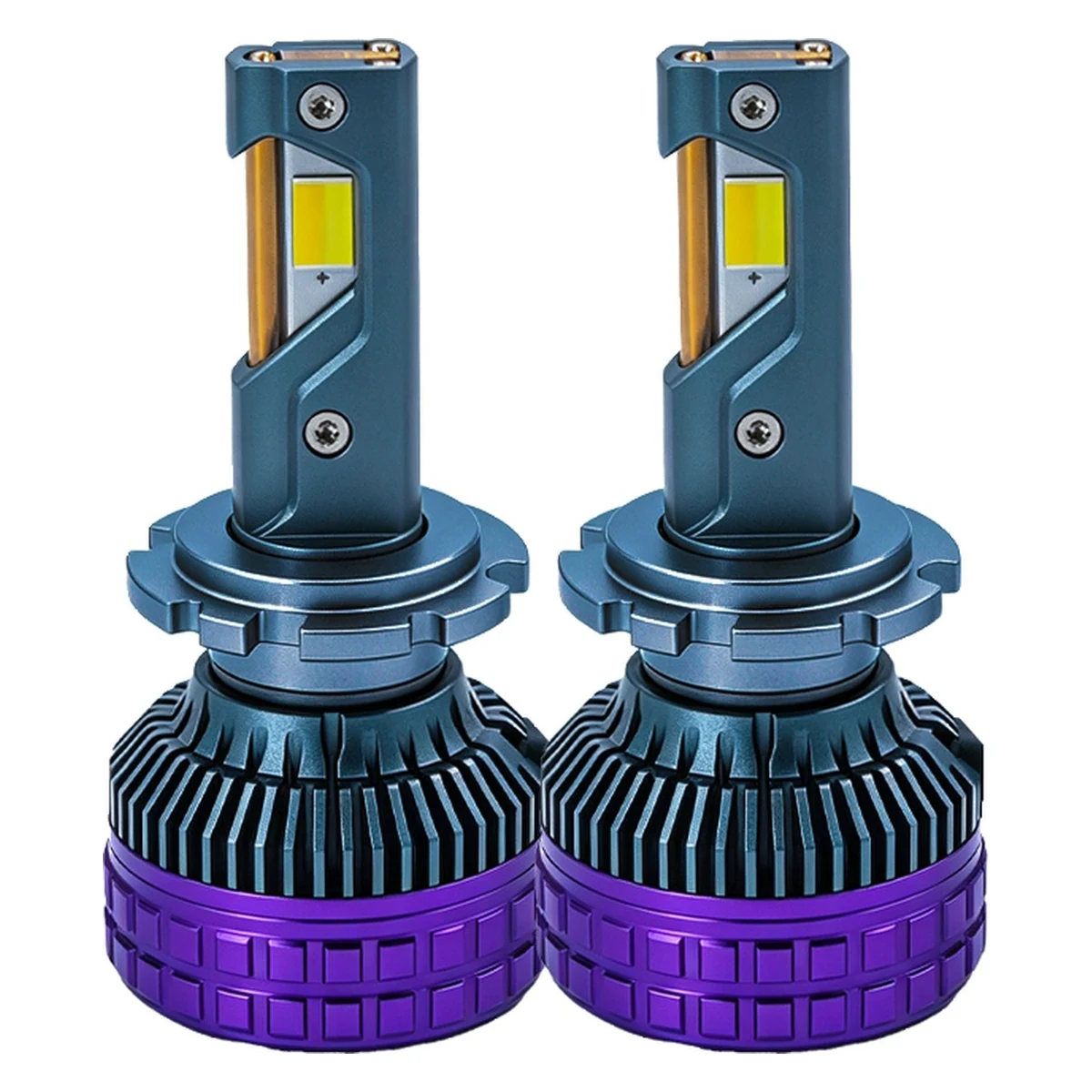

Request the videoN15S body, MAX electronics: three colours and a strobe from a remote handset, 200 W total at 65 W per colour. Purple rear cap, CSP8050 chips, three copper heat pipes, 8–60 V input. Supplied with the handset; without it the same bulb is the N15S TC, and the two share a body and collar.
Colour temperature, fitting mix inside a master carton, box artwork and label text, master-carton markings. Body design is fixed by the patent — a different shell is a separate tooling project, quoted on its own.

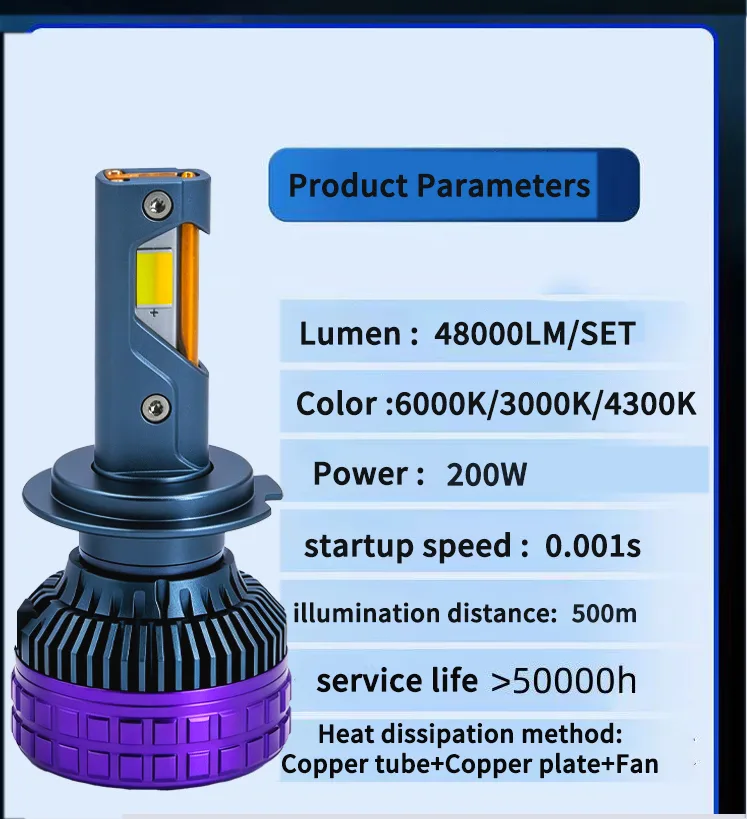

| SKU | N15S MAX |

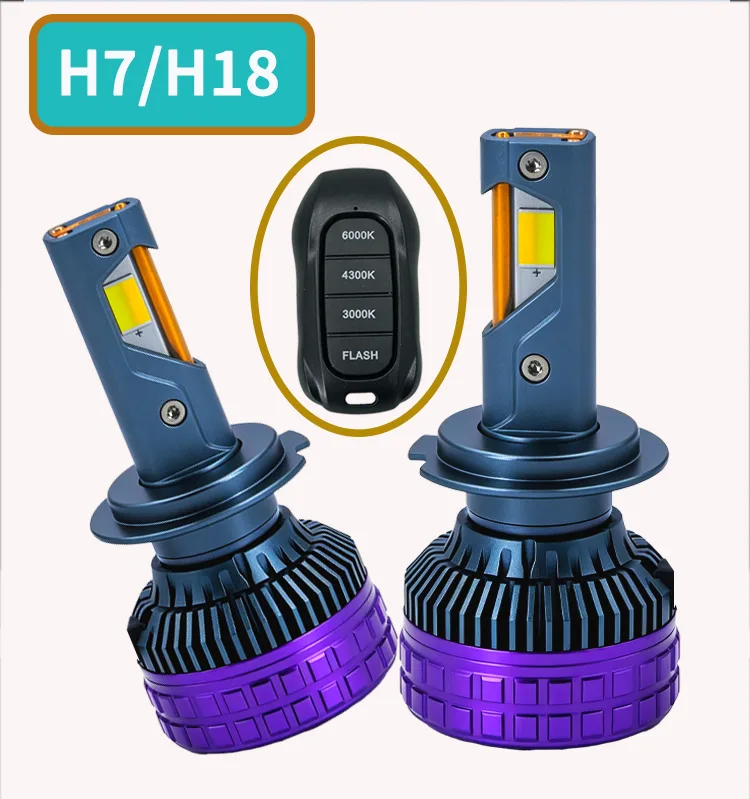

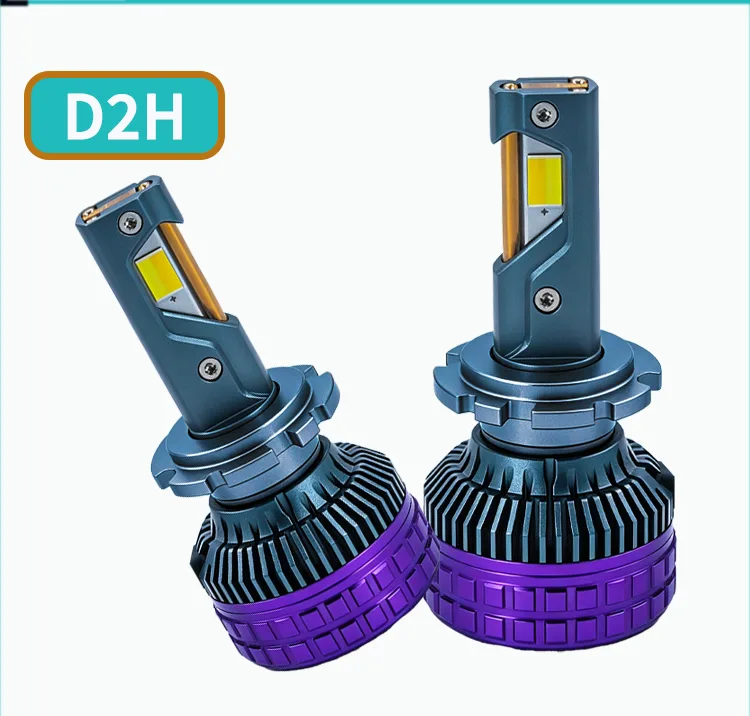

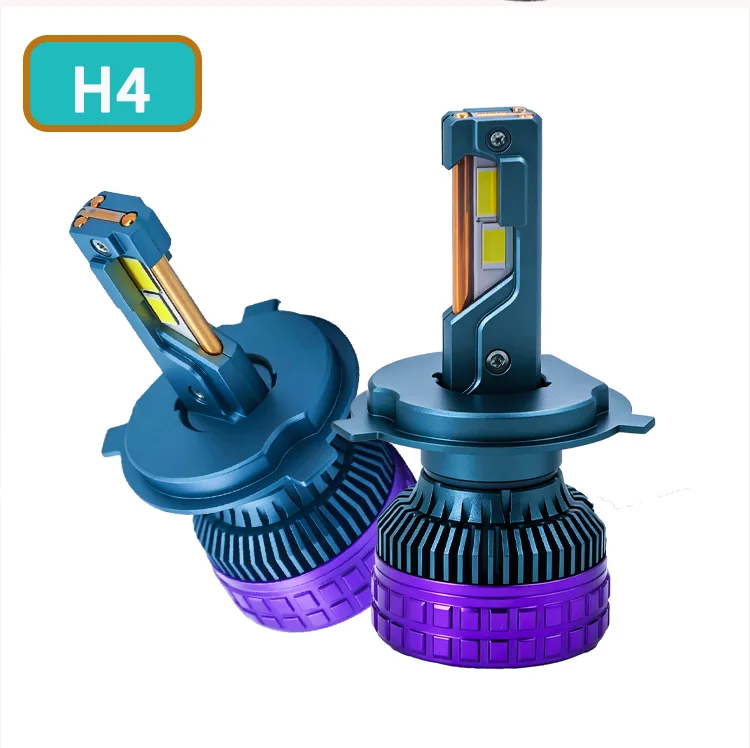

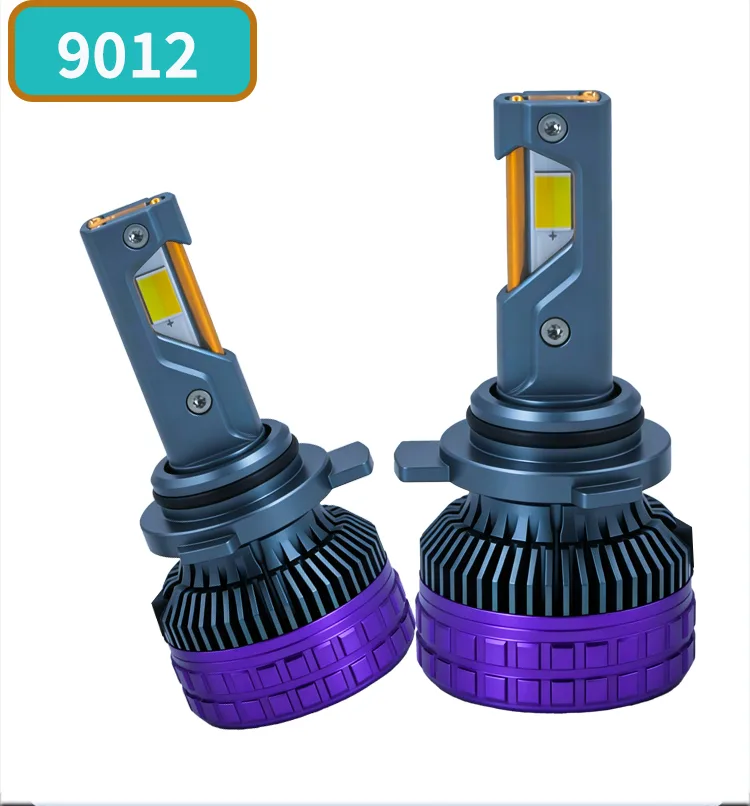

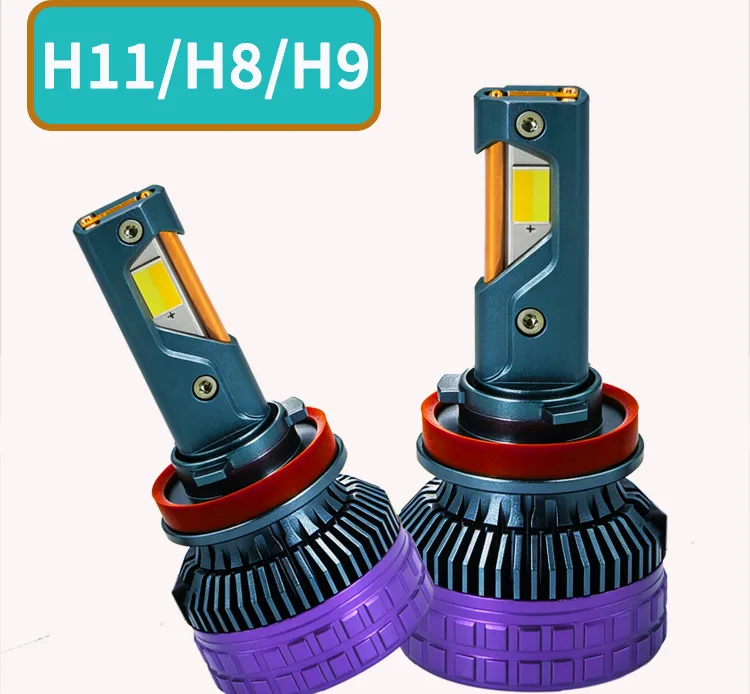

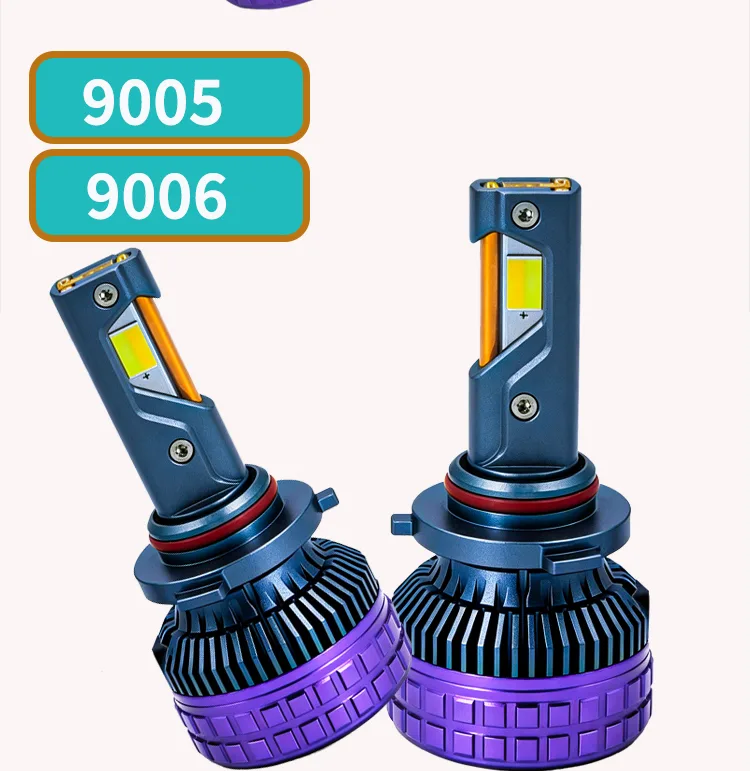

| Fittings | H1 · H3 · H4 · H7 · H8 · H9 · H11 · 9005 · 9006 · 9012 · D2H |
| Power | 200 W / set (65 W per colour) |
| Voltage | DC 8–60 V |
| Luminous flux | 48,000 lm / set (manufacturer rating) |
| Colour temperature | 6000 K · 4300 K · 3000 K |

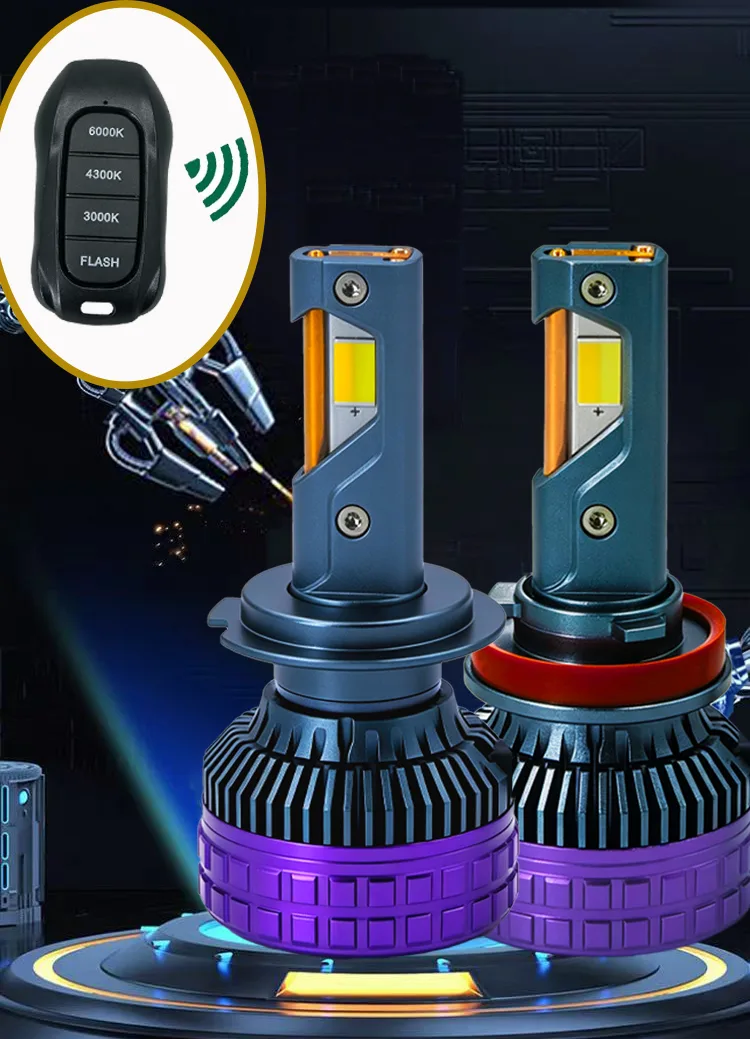

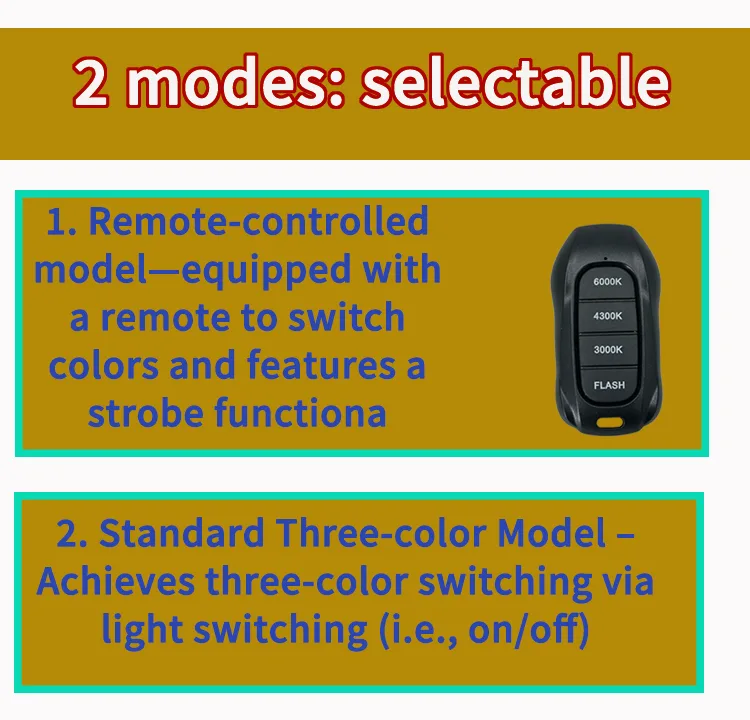

| Colour switching | Remote handset (included) + strobe |

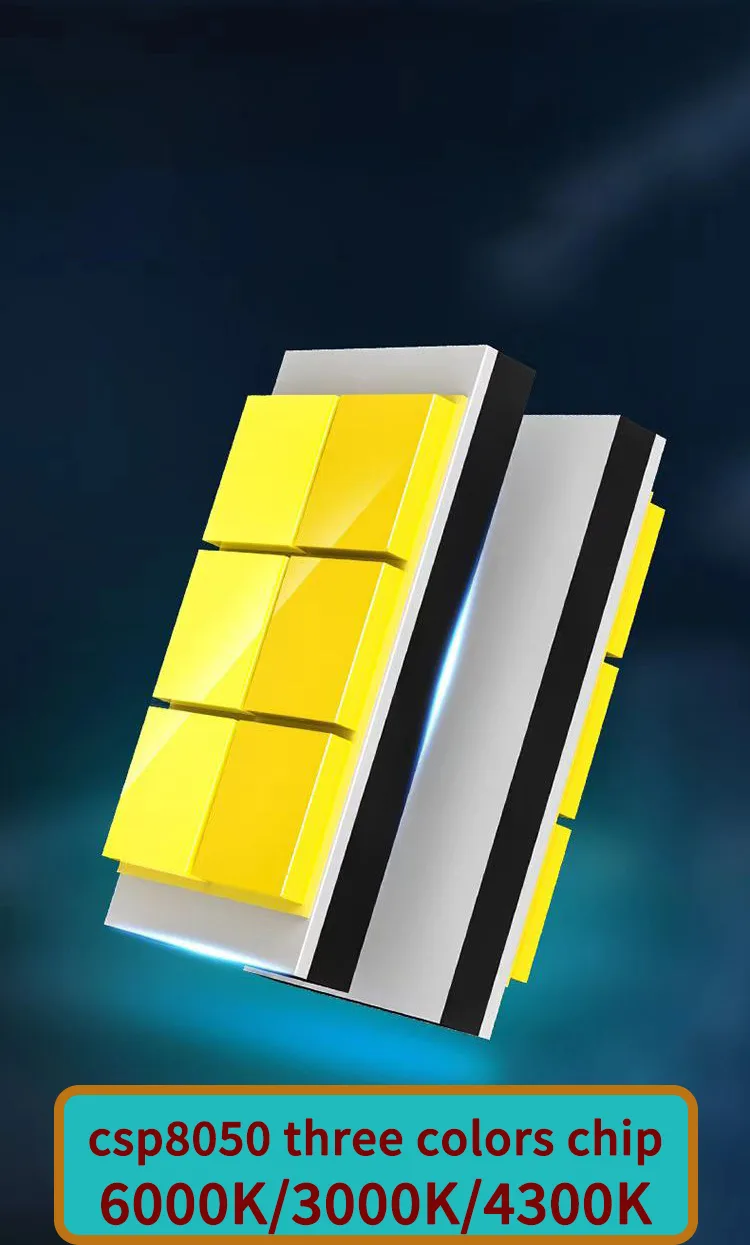

| LED chips | CSP8050 |

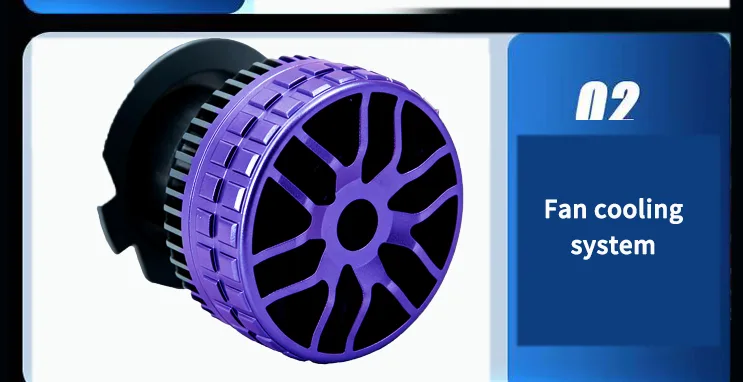

| Cooling | Triple copper heat pipe + dual copper substrate + fan |
| Waterproof | IP68 |
| Lifespan | 50,000 h |
| Rear cap | Purple |
| Patent | Design patent ZL202330622497.0 |
| Unit packing | 18 × 13.5 × 6 cm · 200 g (sold per single bulb) |
| Retail | 1 pc, shipped from stock |
| Wholesale | Mixed fittings per carton |
Every figure comes from our own product listing. Where a value is not published by the factory — measured lumens, for example — it is left out rather than estimated.
Take the numbers with you
Same figures as the table above — for your own approval file or to send on to a customer.
Product detail sheet · 30 panels · in the order the factory lays them out
FAQ
One handset pairs with the set it ships with. If you need two vehicles on one remote, tell us at the order stage — we set the pairing in production rather than asking the buyer to do it.
Per single bulb, the same rule our domestic store runs. A vehicle normally needs two, and H4 / D2H fittings price higher because the base costs more to make.
No, and we do not describe any SKU as E-marked or DOT compliant. Our listings carry a design patent (ZL202330622497.0), not a type approval. If your market requires one, we say so before you order.
Quote
Include your market and volume — compliance routing changes the answer.
